Dante/Network Power Inlet Box

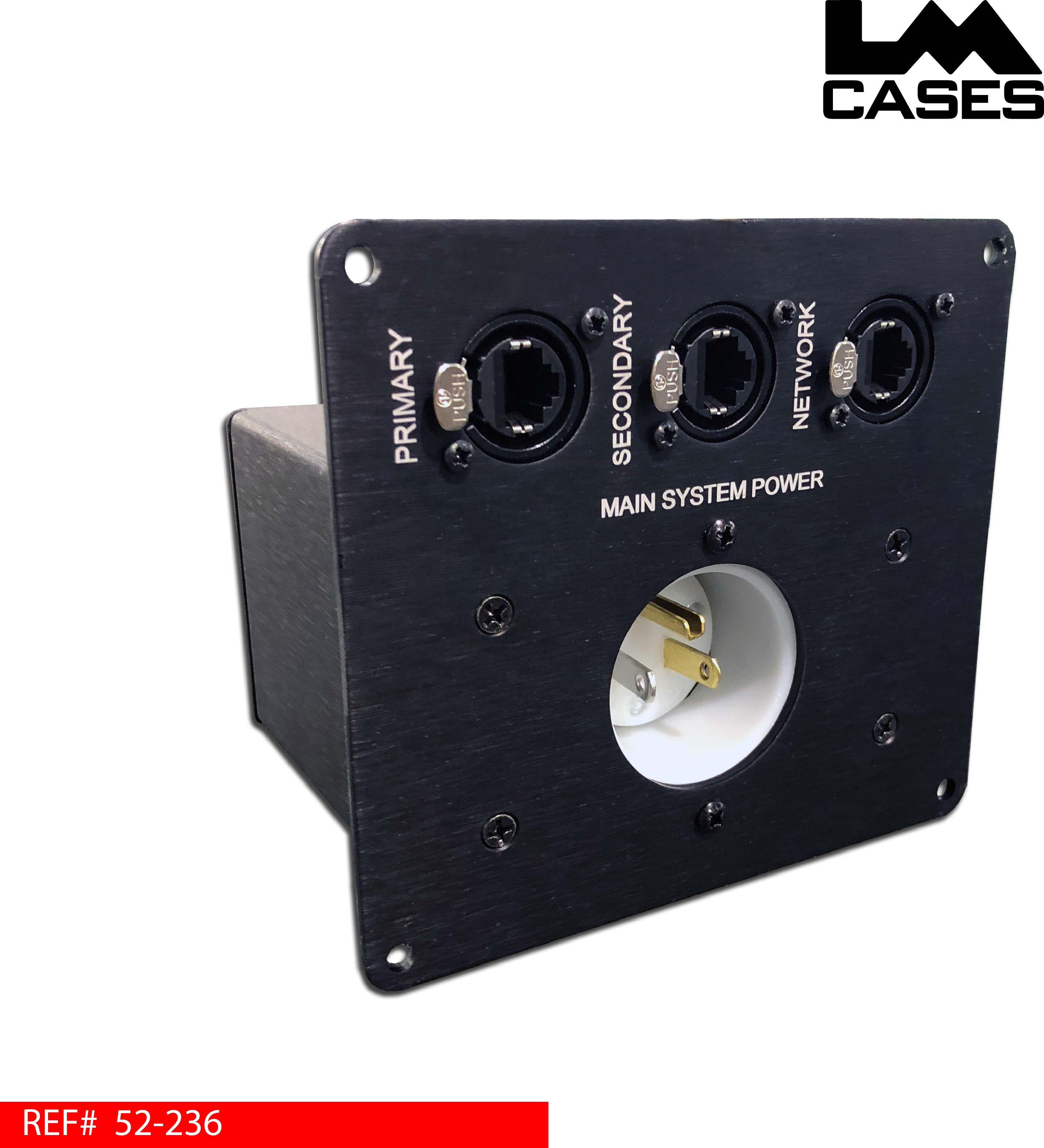

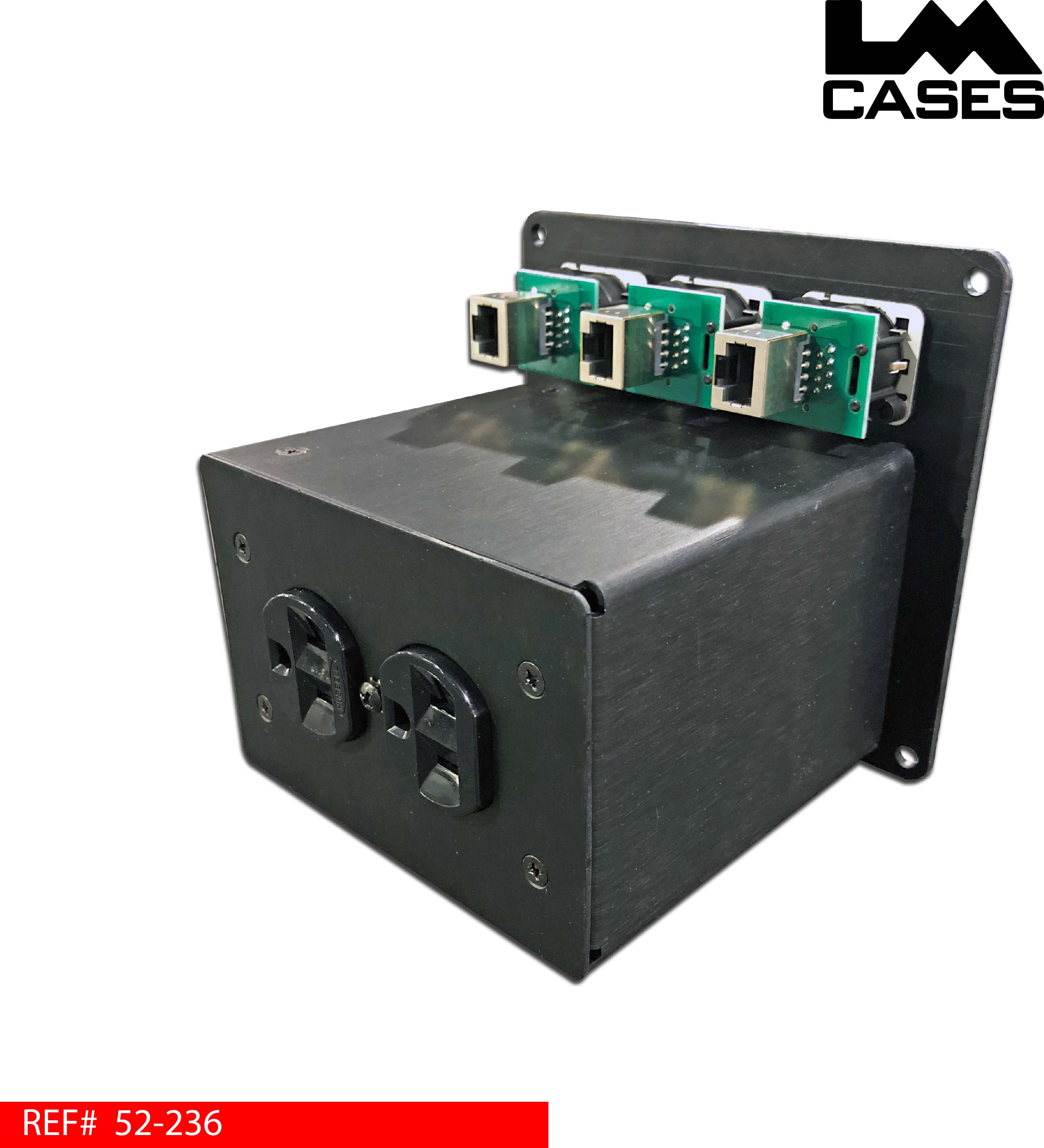

This inlet box is designed to be a main signal point for work stations and racks using the Dante protocol. The box features 3 Neutrik NE8FDP-B Cat5 jacks labeled “primary”, “secondary”, and “network”. The jacks are intended to bring Dante Primary, Secondary, and a main network signal into a work station. The power portion of the box features a recessed Hubbell inlet wired to a duplex outlet. This box can be mounted behind a Penn D0047Z cable hatch. The box provides a neat “all in one” location for portable systems.
To purchase this box from our online store, CLICK HERE.
- REFERENCE: 52-236
- CATEGORY: Custom Integration
