Power (Courtesy)

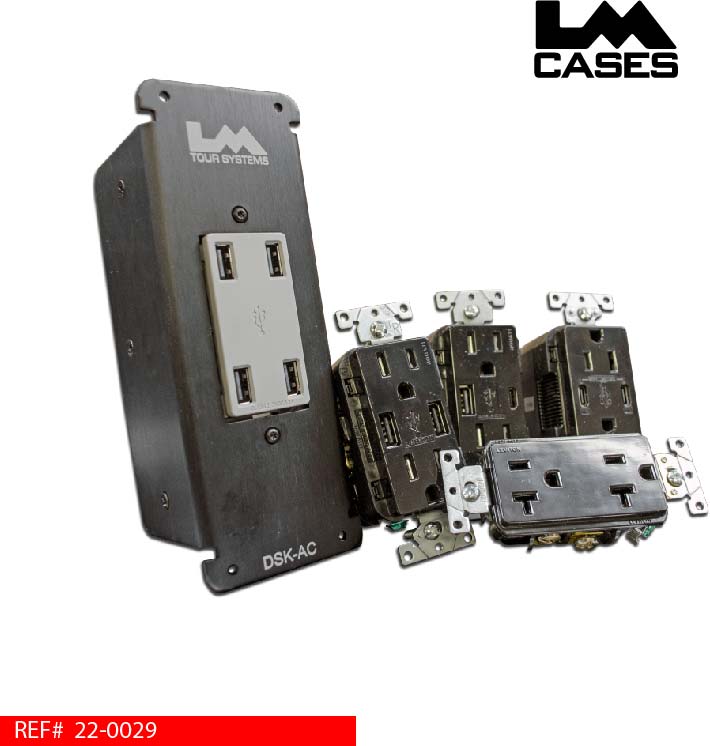

DSK-AC Courtesy Power / USB Outlet Recessed Box
This outlet box is designed to provide courtesy AC and or USB power to work surfaces. The box can be recessed into a work surface, drawer or panel. The box is built from .125” black anodized aluminum. Power is provided by 16/3 HD SO power cable that is custom cut to your specification and terminated with a HD Edison AC plug. A custom heat shrink label is provided with the text of your choosing. 5 outlet options are available: 20amp HD duplex, 4 USB A outlet bank, duplex w/dual USB A, duplex w/dual USB C, and a duplex w/USB A & C.

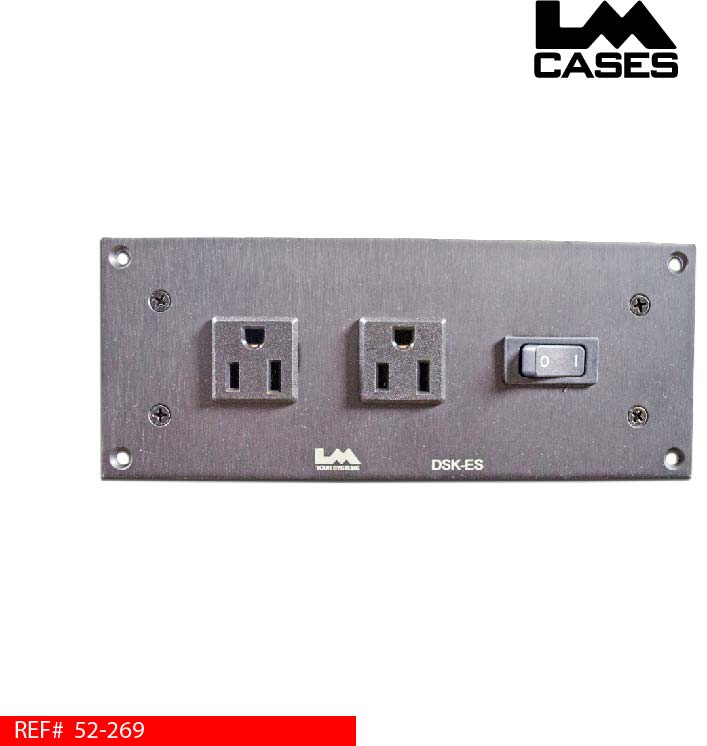

DSK-ES Switched Desktop Courtesy Power Box w/True1 Connectors
The LM Tour Systems DSK-ES desktop courtesy power panel is designed to be a central power panel for racks, and workstations that may not have room for rack mount power distribution. Other applications include separate switched outlets for monitors, or speakers that need to be switched off independently.

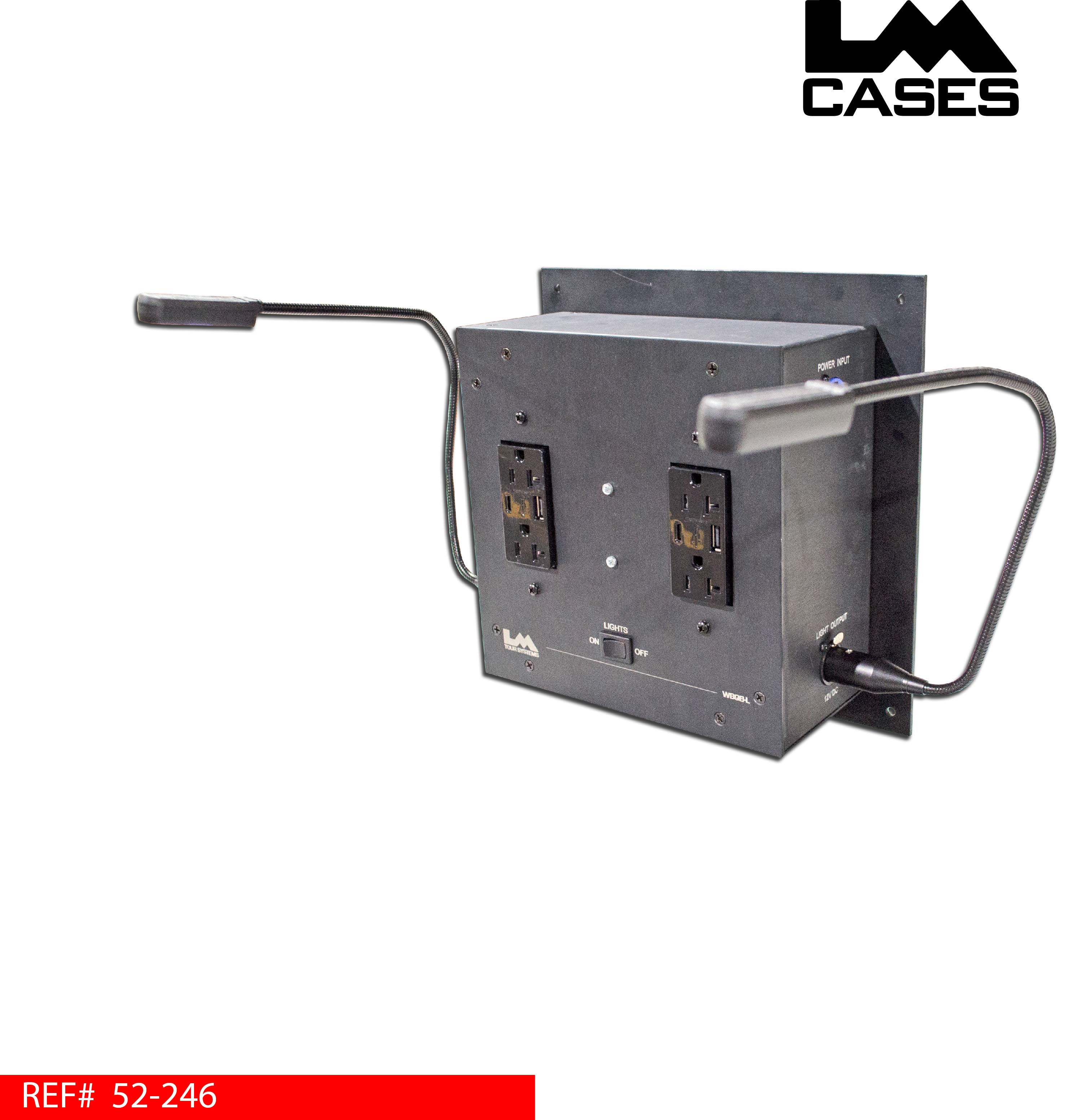

WBQB-L Work Station Courtesy Outlet Box w/USB Charging & LED Lights
The LM Tour Systems WBQB-L workbox courtesy power box is designed to provide centrally located power and lighting to workboxes. The box is powered by a Neutrik Powercon locking connector. Power is sent to two Leviton T5633-E outlets. These outlets provide 4 Edison AC outlets in addition to two USB-A, and two USB-C outlets. AC is converted to DC internally to power 2 – 3 pin XLR connectors for 12v lights. The box features a 10” x 10” back plate used to attach the WBQB-L to any surface.

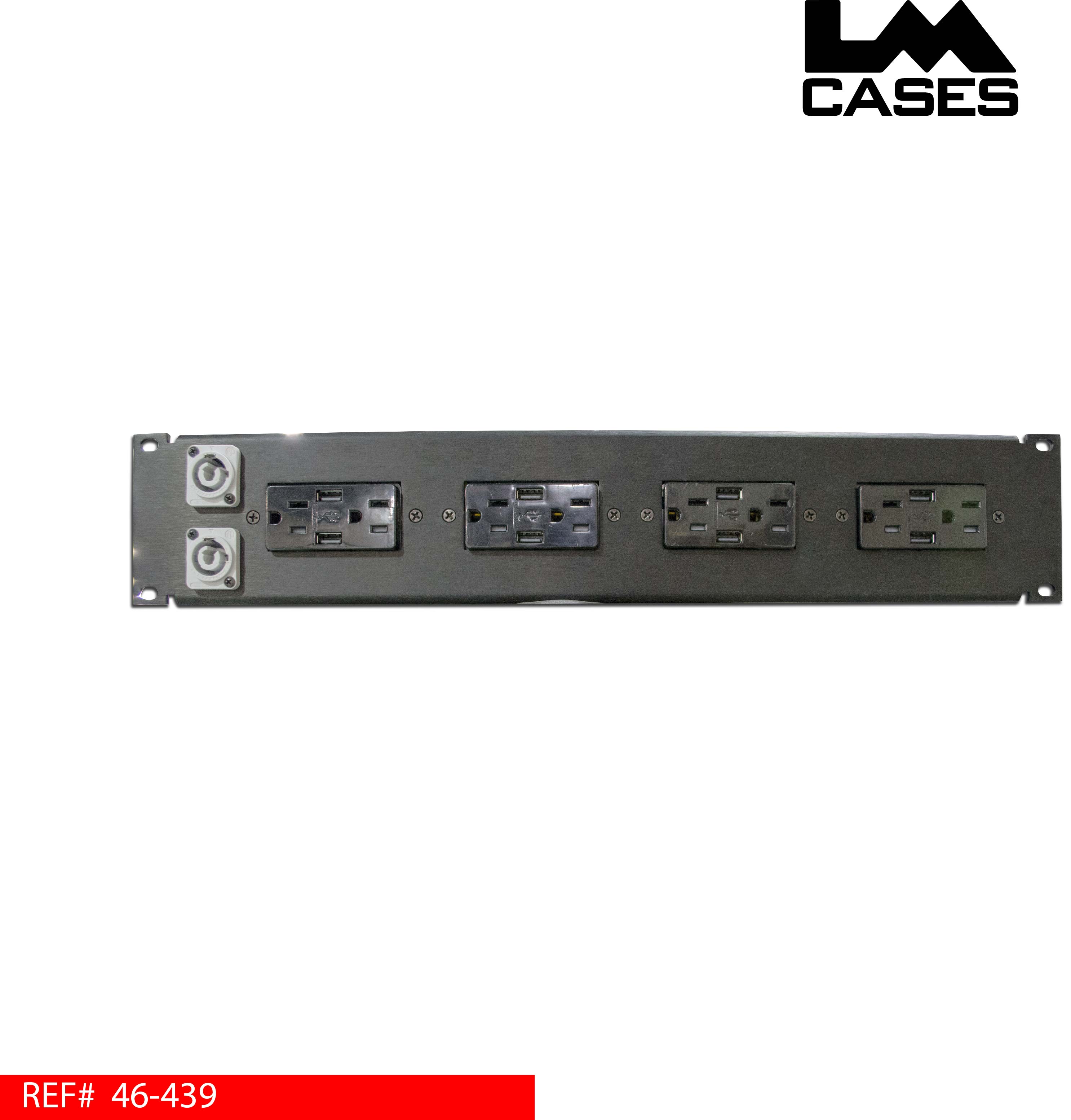

2RU USB/Edison/Powercon® Power Distribution Unit
This power box is designed to provide 8 courtesy Edison and USB outlets to a work surface or rack. The power box also includes 2 Powercon® output jacks for expansion. Common uses for this box include tech work stations where a variety of power outlets are required. The box is constructed out of 1/8” brushed aluminum that is anodized black. Power is supplied via a 3’ HD SOOW cable terminated with a Hubbell Edison plug.
Inline Power Outlet w/Mounting Tabs
This power box is designed to provide an inline 15amp courtsey outlet in the middle of a Powercon run. The box can be used as an extension adapter to combine Powercon cables or provide a outlet at the end of a run.
