Shock Mounted Racks
16 Space Rugged Server Transit Rack w/Fans & Custom Power Panels
The custom portable server transit case built by LM Cases is designed to transport servers in touring conditions. The case features 3 rack sections designed to separate power and control from the servers.
17 Space FOH System Drive Rack w/Drawer
This custom case is intended for FOH processing applications where rack mount equipment and miscellaneous items need to be stored. Though intended for FOH processing equipment, the case can easily be deployed in wireless mic systems, video processing etc..
20U Portable Server Transit Rack Case
This custom 20U portable transit case was designed for moving servers into data centers. The unique design features clear front and rear doors allowing each rack to pass through RFID portals for asset management.
Noise Isolating Portable Rack Case For NewTek Tricaster System
This rack was designed to hold NewTek Tricaster components in an installed application. Noisy equipment is installed in the rack to allow it to remain close to the user in a quiet production environment.

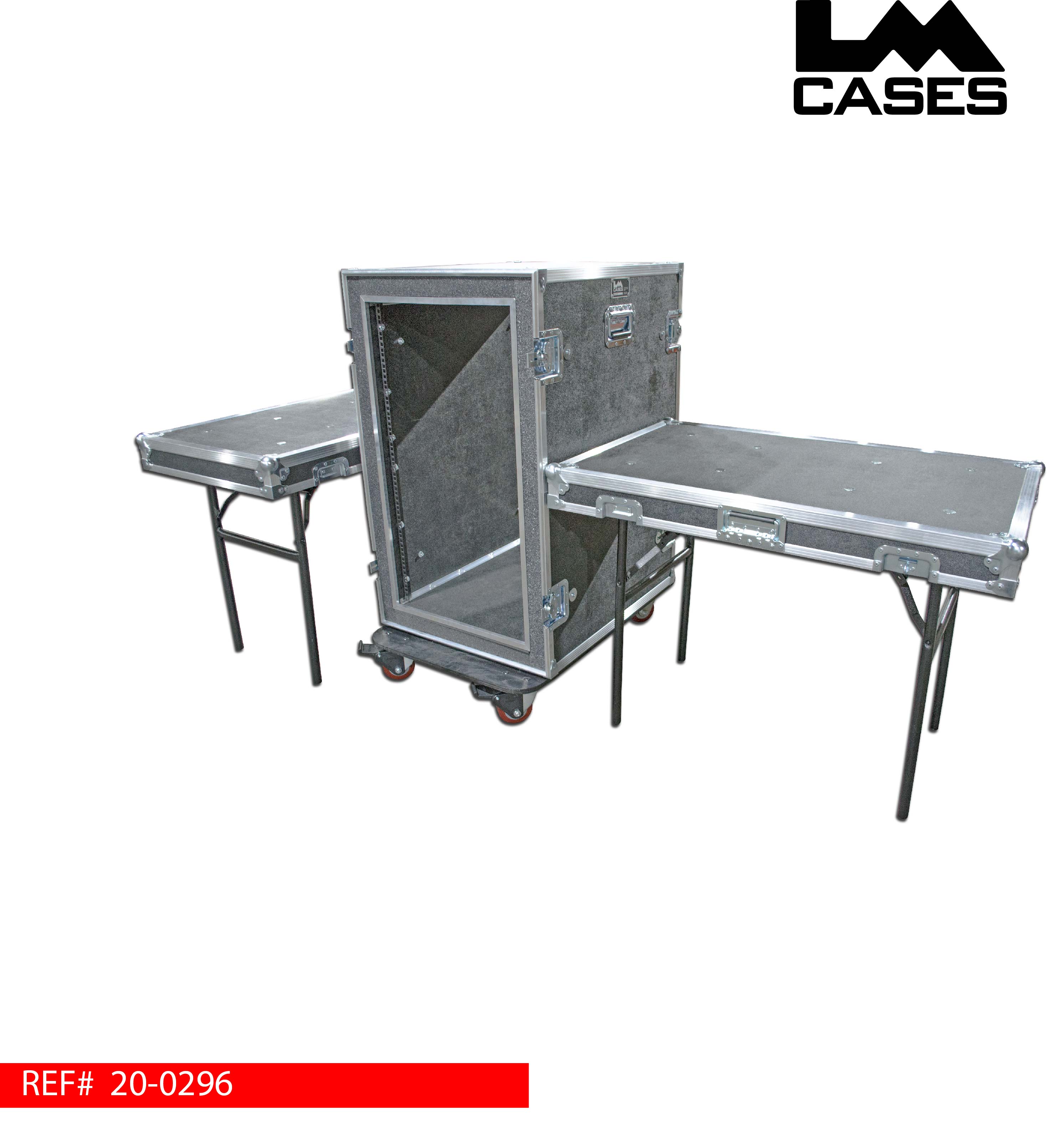

16 Space Shock Mount Rack w/Table Legs In Front & Rear Lids
This is a modified version of our standard series 16 space shock mount rack with table legs added to each lid built for T-Mobile.
16 RU Pocket Door Amp Rack
This case was built for the production department at the Kennedy Center. The 16-space rack features an OD depth of 24” x 30”.

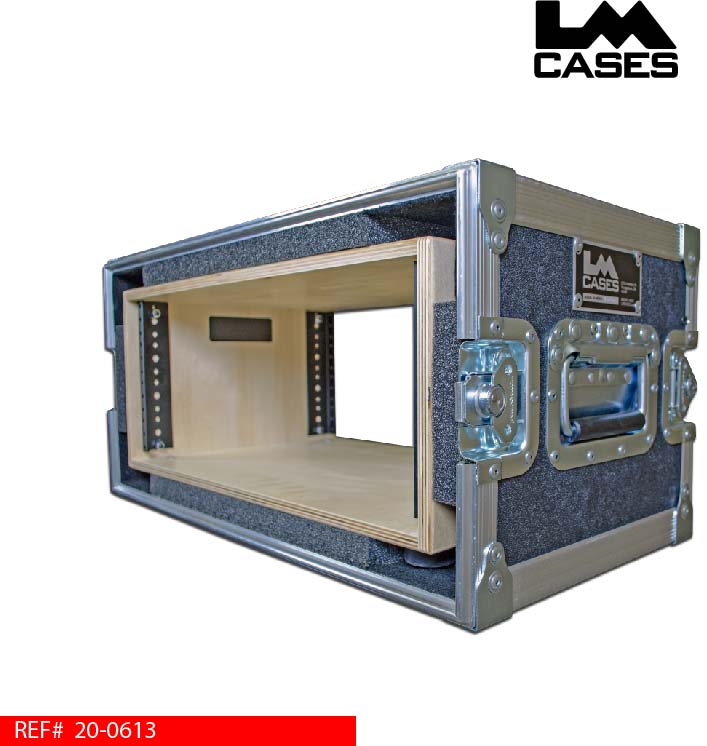

Outer Transport Case For LM 4RU Studio Outboard Rack
This outer case is designed to transport the LM Cases 16-0928 4RU Studio Outboard Rack. The case allows the rack shell to be easily loaded and removed. The shell is supported on all four sides by 1” Ester foam. The corners of the case are open to provide grab points to remove the rack shell. All surfaces not covered by foam are finished with black carpet.

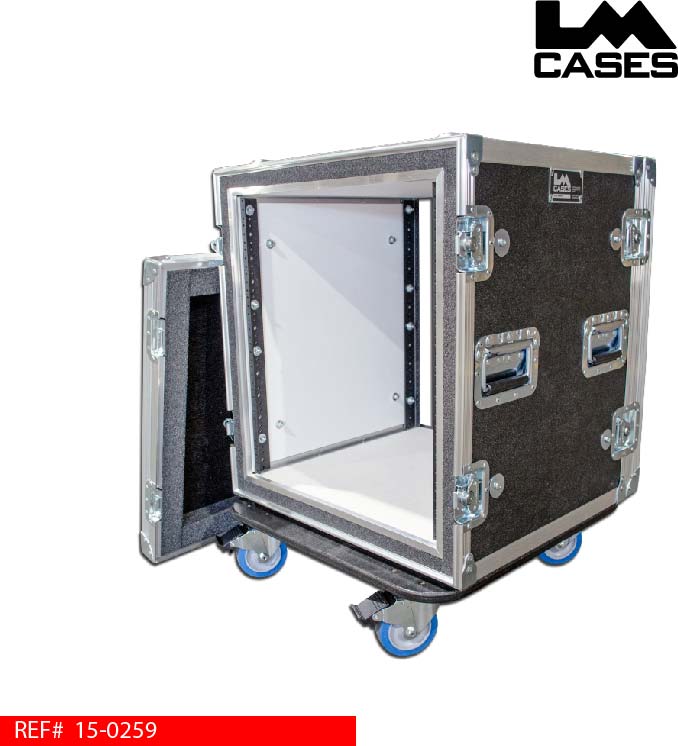

12U Standard Series Shock Mount Rack
This is LM Cases’ standard series shock mount rack shown in a 12RU height. The racks are produced in 2-16RU heights and feature 20” shell depths. All racks in the series feature stacking hardware. Racks 2-8RU come standard with stacking feet on the bottom and stacking cups on the top of the case. Racks 10U and above feature stacking cups on the top only with 4” Colson casters being provided. The smaller 2-8RU racks are designed to stack on the larger 10U and above height racks. This stacking concept allows easily built modular systems.
36RU Portable Data Center Transport Network Server Rack
This is a large format portable heavy duty rack mount case designed for moving servers and network equipment between sites. Primarily designed for moving equipment between integration shops and data centers, this rack can also be used in installed applications. The inner rack shell is built out of ½” plywood finished with black ABS plastic. Square captive nut rail is mounted at the front & rear of the rack shell. The 36” deep shell features 35” of usable rail to rail depth. The inner shell is isolated from the exterior case via 2” foam on all sides. 3.5” deep lids are secured by 6 latches each. The case exterior is built out of ½” plywood laminated with your choice of ABS plastic colors. 14 deep recessed handles are mounted in ergonomic positions on all four sides of the rack. 2 x 2 configuration handles are mounted on the side of the case to provide 2 handles for lifting, and 2 for pulling. A 1 x 2 handle pattern are mounted on each lid. 1 handle is positioned for a center pull, with the bottom 2 handles providing lift points. The case rides on 4” x 2” Colson HD casters mounted on a ¾” plywood caster board. 2 casters lock.
20RU Portable Heavy Duty Server Rack Case
This heavy duty server rack is designed for portable applications. Designed for transporting servers between data centers, trade shows and for mobile command stations. The rack is built out of ½” plywood laminated with your choice of ABS plastic colors. The inner rack shell is also built out of ½” plywood. The inner shell features a black ABS plastic lined interior. Box style square cage nut rack rail is provided to accommodate a variety of server and networking equipment mounting brackets. The rack shell is 29” deep. The front and rear rails are recessed ½”. The rails are spaced 28” apart.
Triple Wide Video Rack w/Custom LED Logo Light Panels
This case was built for Upstage Video. The case features 3 – 20RU tall, 24” deep rack bays. Custom LED logo light panels were built to provide a more impactful presence verses a standard silkscreen.
6RU Flyable Network Switch Rack For Dusty/Industrial Environments
This rack is designed to provide isolated dust proof storage of networking equipment in installed dusty and industrial applications. The rack can be flown or floor mounted. The case is designed to pull cool air through the bottom and exhaust hot air through the case sides. At max flow rate, the air in the rack will be replaced 90 times per min.
24 Space Insert / Surround Rack Set
This case set was built for PRG. The case features a removable 24RU inner rack shell and a custom exterior case.

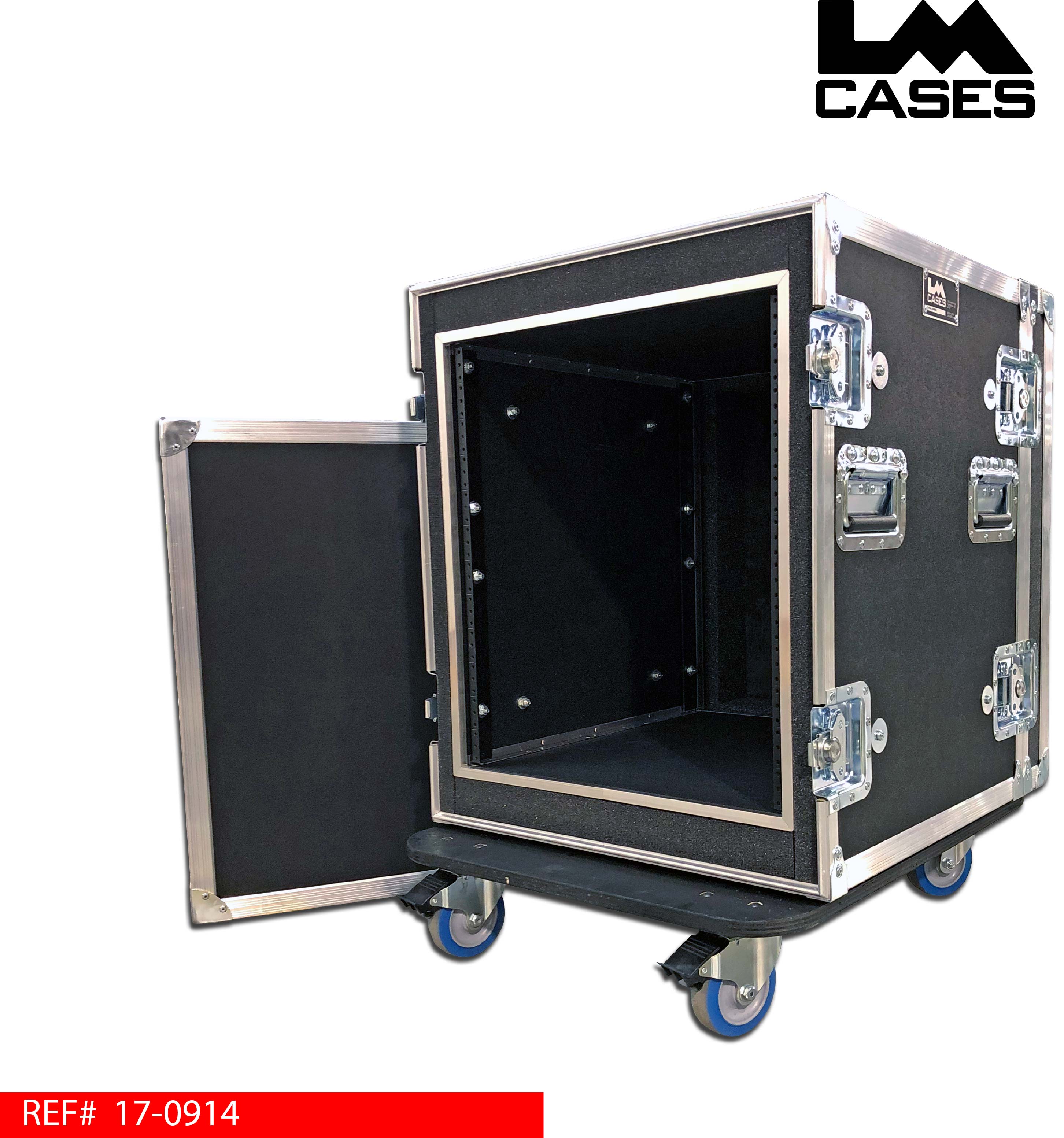

12RU 24” x 30” Truck Pack Shock Mount Rack
This case is designed for touring applications where truck pack dimensions of 24” x 30” are crucial. The case features a 3/8” plywood inner rack shell with front and rear rail with 10/32” pre-tapped holes. The inner shell features a rail to rail depth of 20.5” with .5” recess on the front and rear rails. The case features 3.5” deep front and rear lids which allow for a clearance of 4” extending beyond the front and rear rack rails. The inner shell is shock mounted with 2” foam above and below, with 1” foam protecting the sides.
32 RU Portable Server Noise Isolation Rack
This case was designed for Nvidia to be a portable server rack for use at trade shows. The case holds 32RU of gear in a shock isolated inner shell to prevent damage to the delicate servers. To dampen the noise of the server fans, the inner shell features 10 ultra low noise cooling fans and 3/8” thick clear Lexan doors at the front and back of the shell.
