Shock Mounted Racks
Lawo Modular Rack Display Case
This case system was designed for the Lawo Group as a modular approach to transport and display their equipment for trade shows. The system is designed around 3RU rack shells, and a storage box that is 3RU in height that stack together allowing for multiple confirguations. The concept allows the racks to remain stacked and locked together in the outer case tray, this expedited the set up and tear down of Lawo's booth.

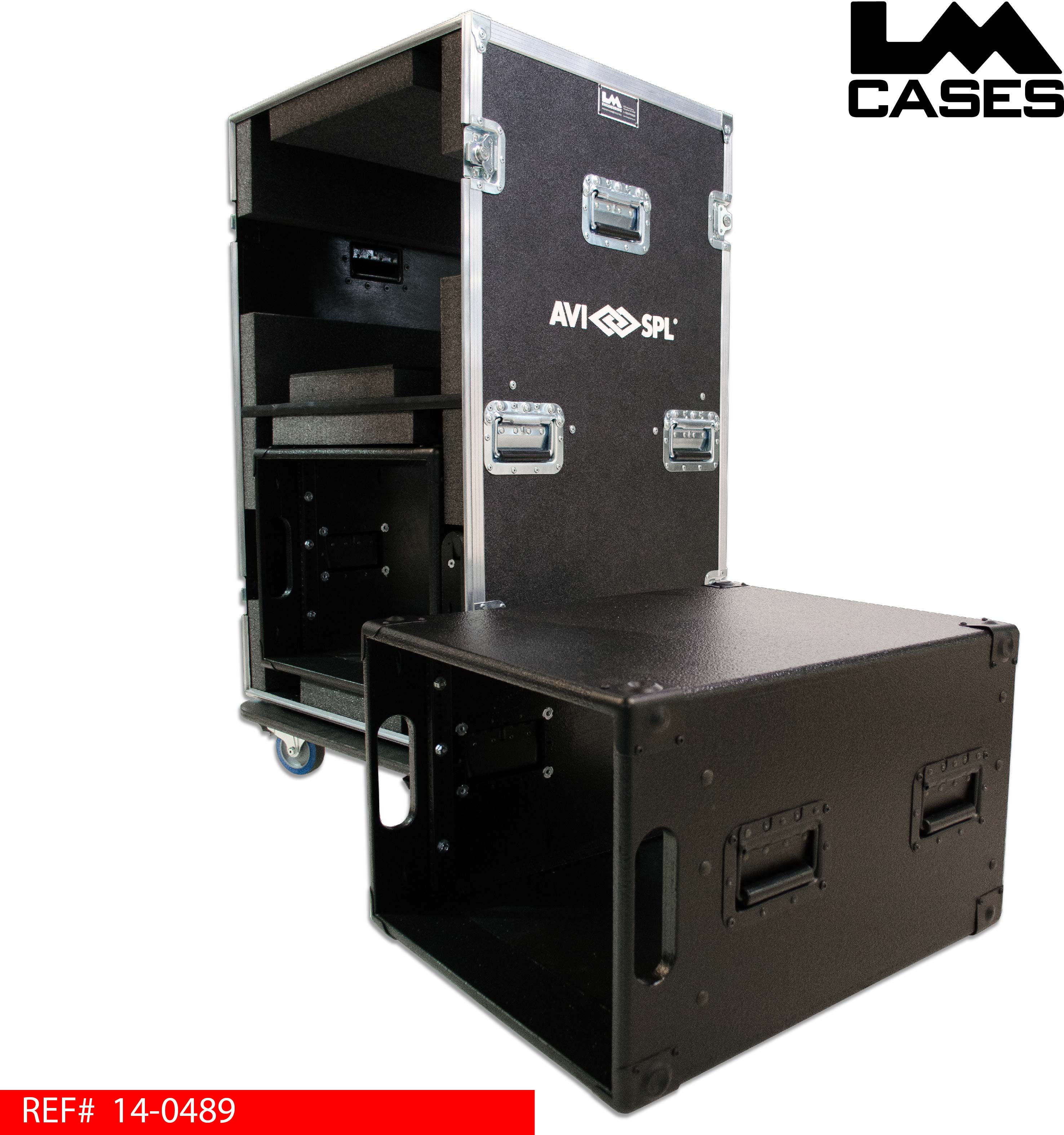

Yamaha Rio 3224-D Modular Rack System
This case was designed for AVI-SPL to house their Yamaha RIO 3224-D interfaces to provide IO for their CL5 system. The case is built around 2 removable 8RU racks that house the 5RU RIO units with room for future expansion.
Evertz Microsystems Custom Rack
This case was designed for Evertz Microsystems. The case is designed to hold a custom 40 space unit that weighs 800lbs! The unit needs to travel to different venues and be set up. To accommodate this, heavy duty Colson 4" x 2" casters were used on the rear lid to allow the case to be shipped, and fit through a standard door. The case and unit are extremely heavy; the case is designed to be mechanically lifted by the inner rack shell. In case a forklift or crane are not available, 28 deep recessed handles were used to allow the case to be manually lifted.
RED Rack: Noise Reducing Production Rack
The LM Cases RED Rack is designed to be the pinnacle portable noise reduction chamber for your studio equipment. With over 2 years of testing and development we are proud to share our RED Rack with you!
San Diego State Video Server Workstation
This case was built for San Diego state for their recent bowl game. The case features a shock mounted rack shell with space for 3 1RU servers. The case features 4 Baltic birch drawers mounted on HD glides for storage.
University Of Michigan Video Server Rack
This case was integrated by Thalner Labs for the University of Michigan, the case is designed to transport video servers. The case features a 30" deep foam shock mounted inner rack shell with captive nut box rails mounted front and rear.
10 RU Recording Outboard Rack
This case is designed to hold rack mounted outboard gear as well as a computer keyboard and mouse, the case will be used in a mobile production environment as well as in a studio. The rack is complementary to our sound isolation rack, where the computer and hard drives are stored in the isolation rack; the mouse, keyboard and monitor are located on the outboard rack. This is beneficial in studios that use mixing consoles, the case can be placed perpendicular to the mixer and allow the user a place to hold their computer monitor, mouse and keyboard; while the isolation rack that holds the computer can be kept at a distance.
Apple Mac Pro Flypack Case
This case was designed with the mobile recordist in mind. The case holds an Apple Mac Pro tower in a 2" foam lined compartment and a foam shock mounted 8 RU rack above the computer. The computer is held in with foam blocks allowing the front of the computer to remain flush with the front foam of the case. The back of the computer compartment has blocks that hold the computer by the corners to allow room for all connections on the back of the computer and prevent it from moving front to back in the compartment. There is a "U" shaped cable passage between the computer and the rack to allow cable connectivity between the two compartments without interfering with the rear lid.
LM Cases Custom 10 Space Shock Mounted Rack/Mixer Steve Harvey Morning Show
This case was built for the Steve Harvey Morning Show. The case is designed to hold a rack mounted mixer and rack mounted processing equipment. The mixer section has 11 rack spaces, and the equipment section has 10 spaces with rear rack rail. The entire rack structure is mounted in a 2" foam surround to provide shock absorption on the road. The outer and inner structures are built out of 3/8" plywood. The case features 3.5" casters mounted on a 3/4" birch caster pad.
Portable Server Rack For Oracle Sun Fire X4140 Server
This case is designed to transport an Oracle Sun Fire X4140 server. The case and inner rack shell are built from 3/8" plywood. The inner rack shell is 30" deep and surrounded by 2" foam and features front and rear pre tapped rack rail.

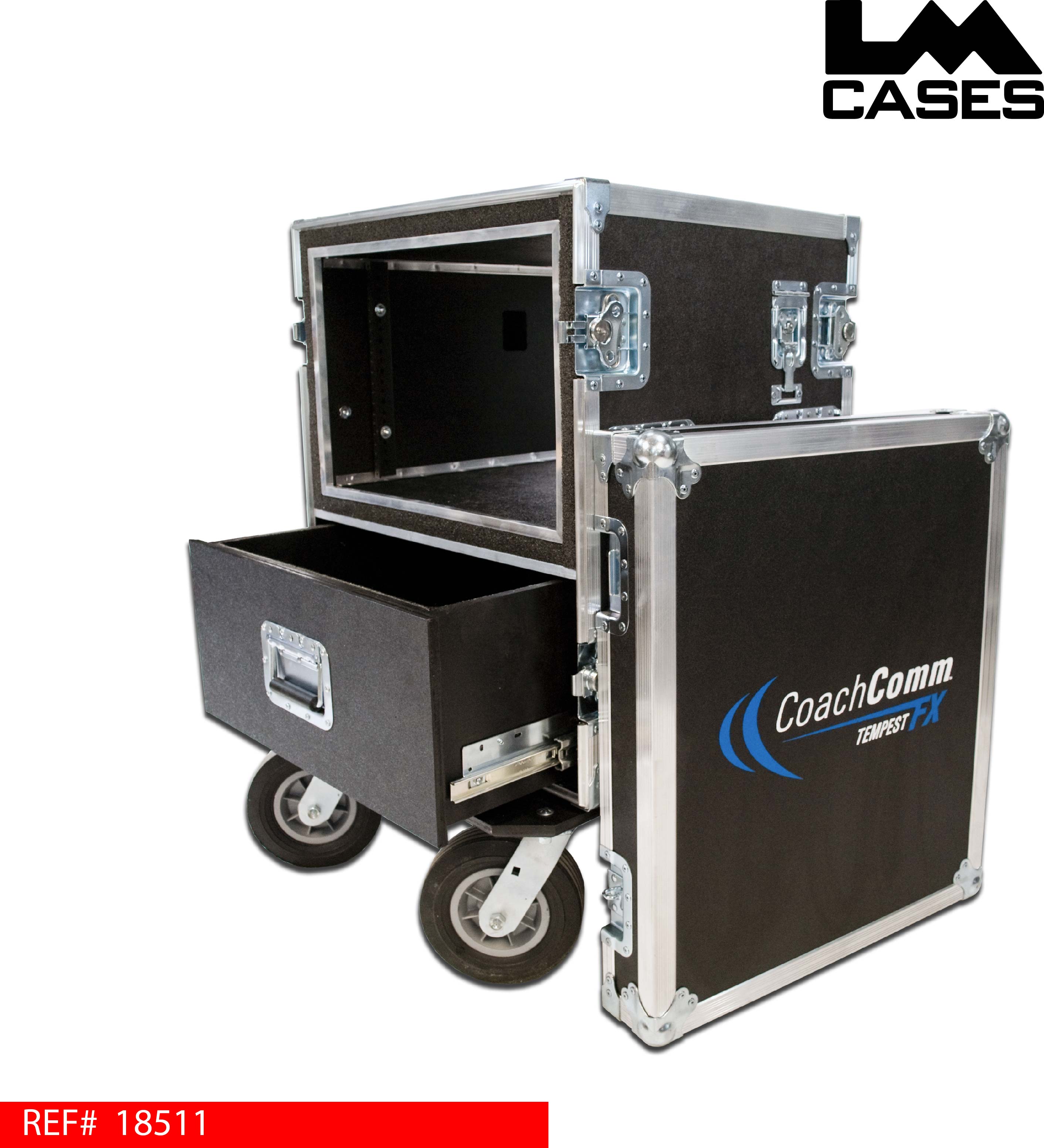

CoachComm Tempest FX Sideline Accessory Rack
This case was made for CoachComm. The case is built out of 3/8” plywood, and features silkscreens of the companies logo, pad-lockable hasp latches, recessed cable hatches, and 8” foam filled field casters.
Cisco Chooses LM Cases For Their Mobile Server Rack
This case was designed to house Cisco servers used in mobile applications. The case is built out of 1/2" plywood, and features a 1/2" inner rack shell mounted in 2" of foam to provide shock protection. The rack holds 21RU of gear features a 33" deep shell to accommodate the extra deep servers. The case features all recessed hardware and 4" x 2" HD casters mounted on a Birch pad. Special thanks to Cisco!

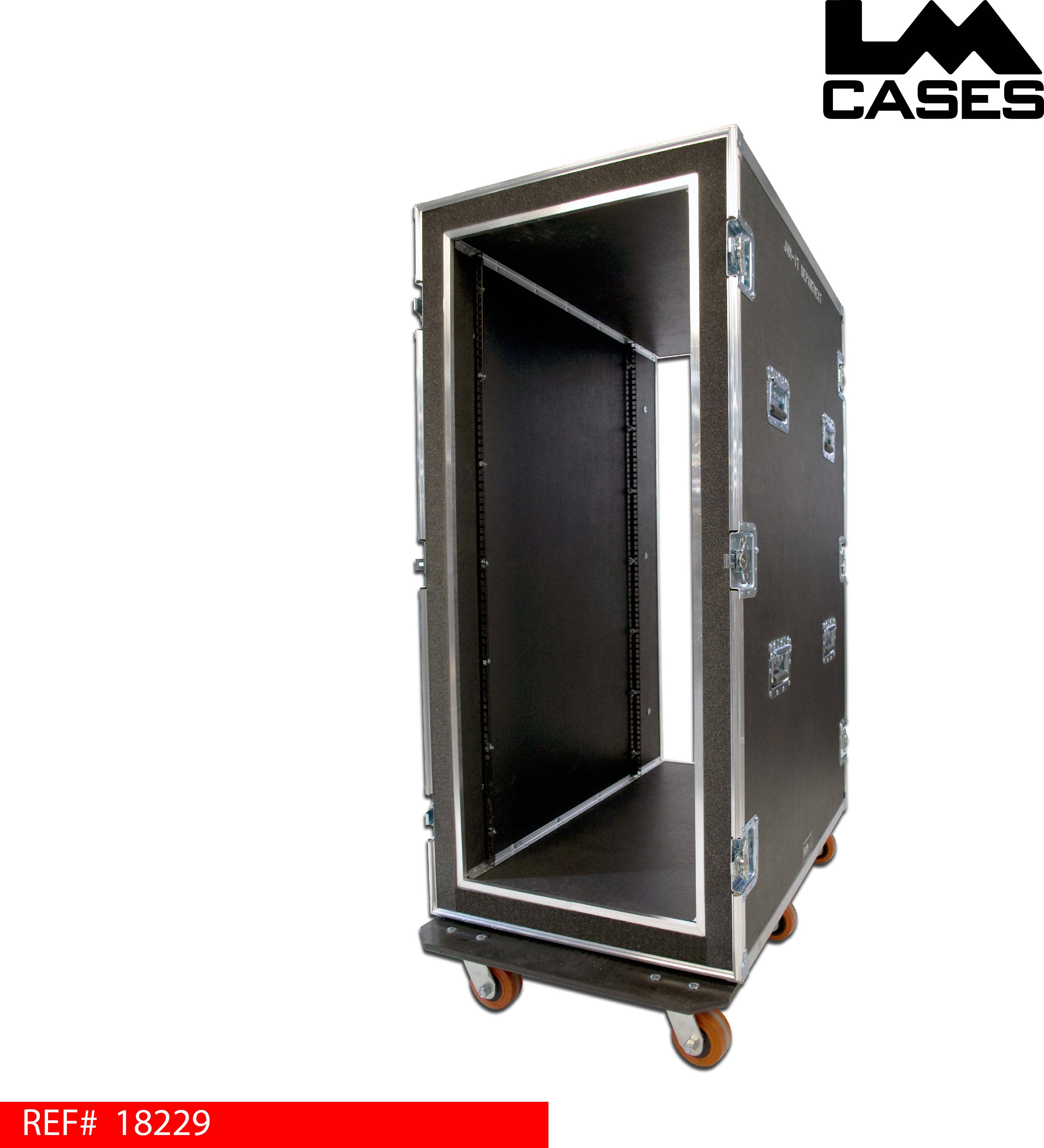

Large Format Portable Server Rack
This case was built for John Hagee Ministries IT Department. The case is built out of 1/2" plywood and features a 1/2" shock mounted inner rack. The rack features a 40" deep shell as well as front and rear captive nut box rail to accommodate the deep server units.

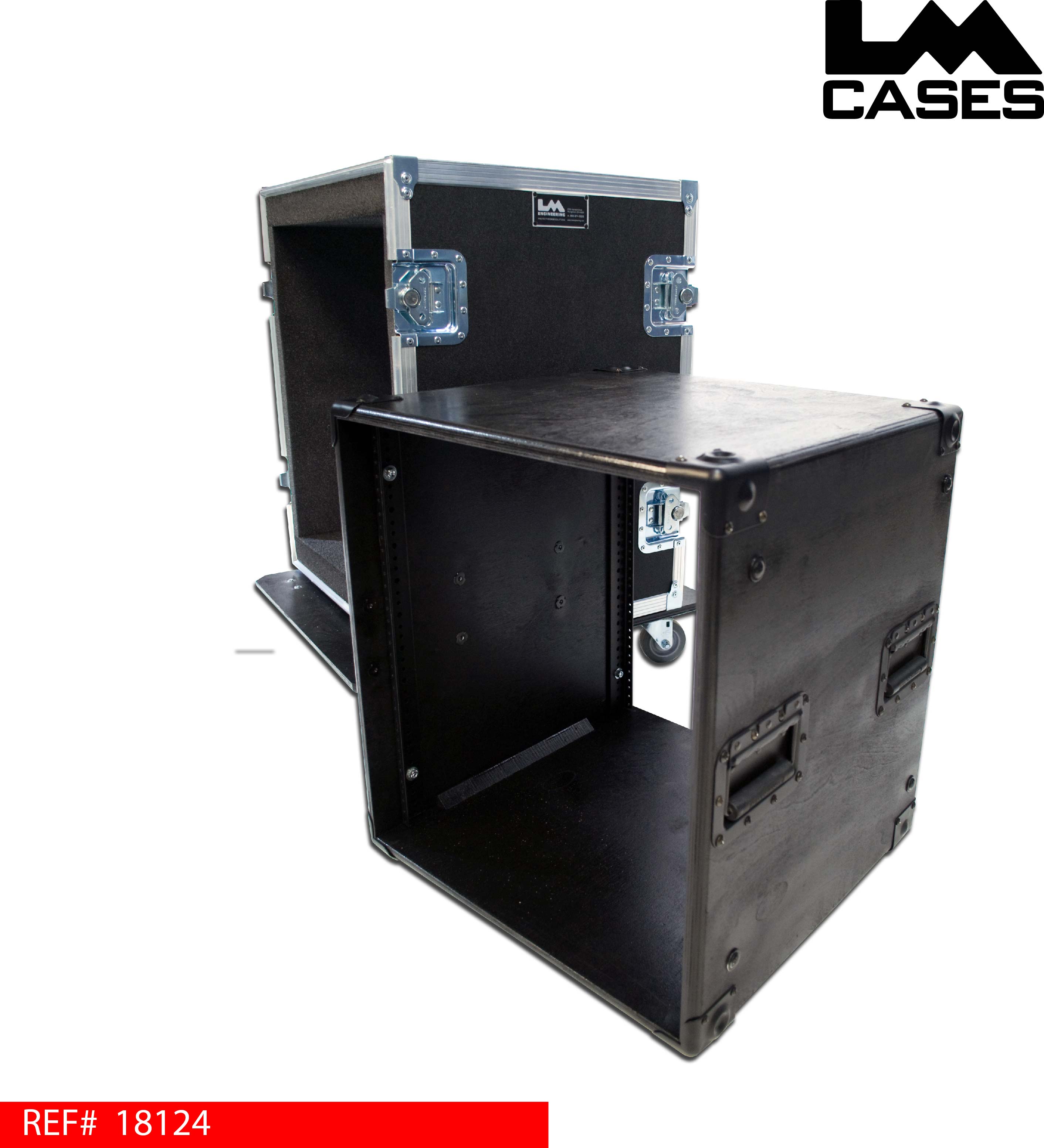

PRG Custom Surround With 12RU Insert
This rack was designed so the user has the option to remove the inner rack shell. This is very useful for rental companies, or other applications where gear is constantly changing. The removable shell design allows the user to interchange multiple inner shell configurations in one outer case, instead of changing the gear mounted in the rack.

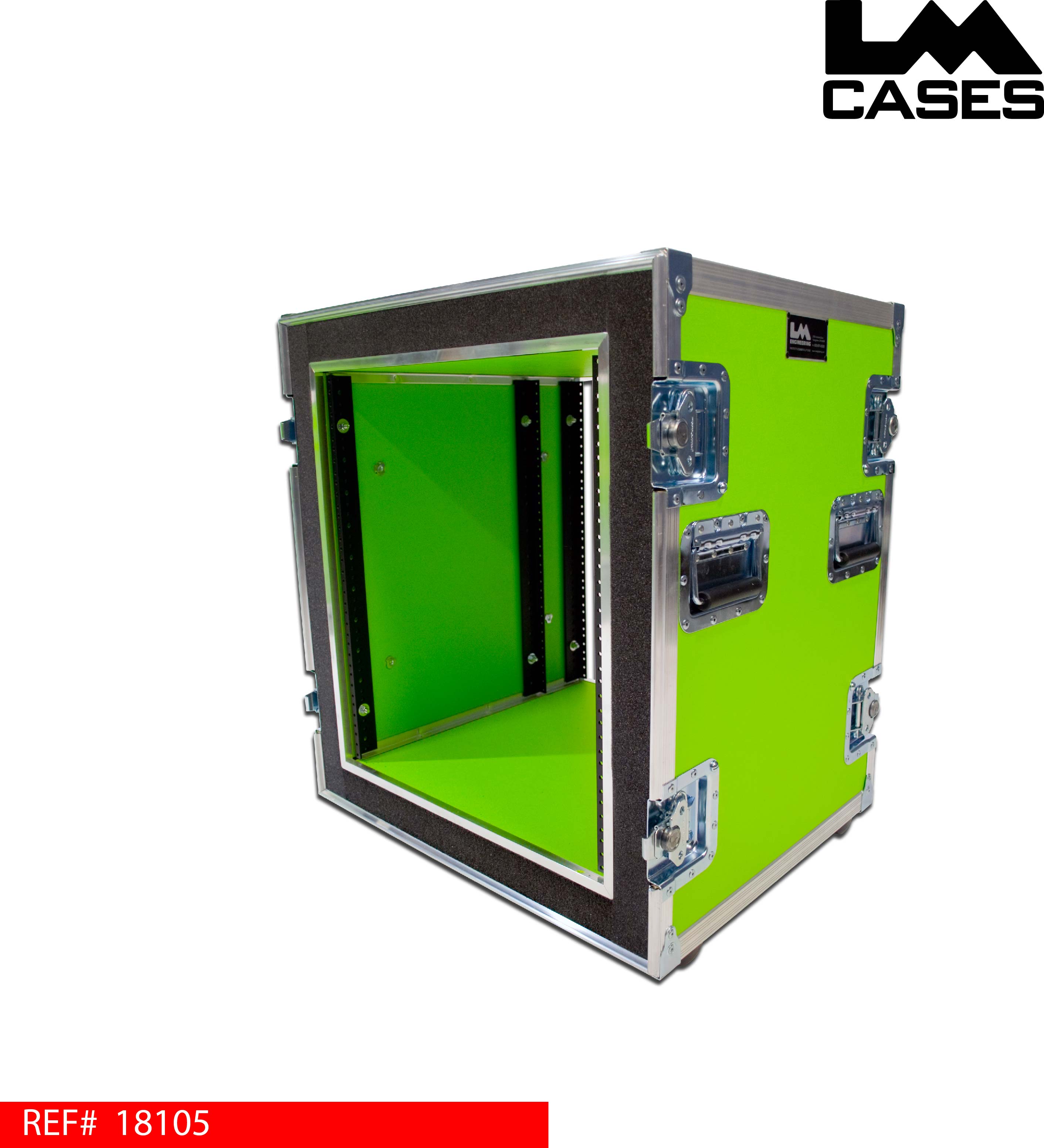

Federal Signal Shock Mount Rack
When you are sick of your gear "blending" in into the abyss of plain black cases, give our neon green laminate a try! We guarantee that your cases will be noticed by the astronauts on the MIR Space Station!
