Racks

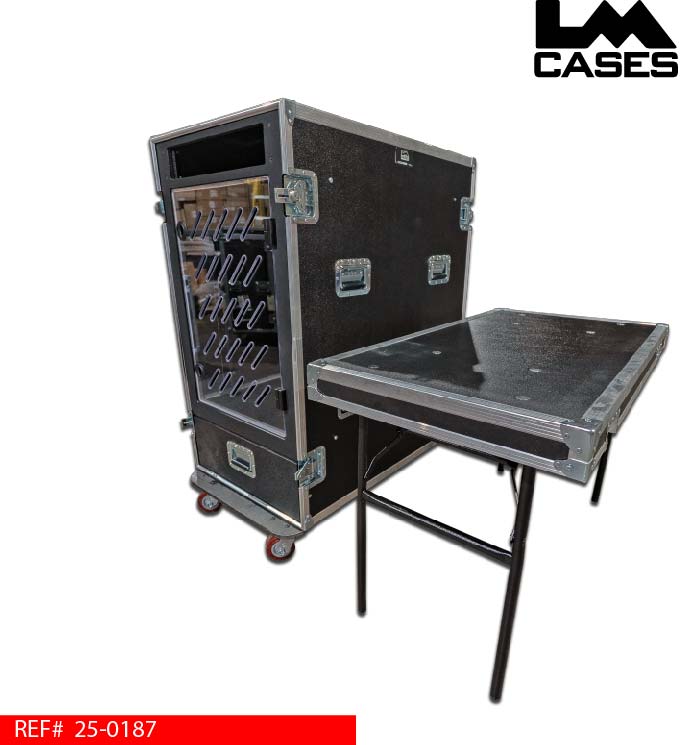

16 Space Rugged Server Transit Rack w/Fans & Custom Power Panels
This custom portable server transit case by LM Cases is built for safely transporting servers in touring environments. It features three dedicated rack sections that separate servers from power and control equipment, including a 2U external rack for KVMs, a shock-isolated 16U main server rack with adjustable rails, and a 5U rear rack for power distribution, fan control, and signal I/O.
The main rack includes vented Lexan and marine-grade doors, temperature-controlled exhaust fans, and heavy foam isolation for protection. Integrated power and networking use locking True1 and Ethercon connections, with included power and network cables designed for durability and easy labeling. A heavy-duty storage drawer provides additional space for accessories.
Constructed from laminated ½” plywood with reinforced steel framing, the case is equipped with recessed handles, lockable latches, table-leg lids, and locking casters, making it a rugged, mobile, and tour-ready server transport solution.

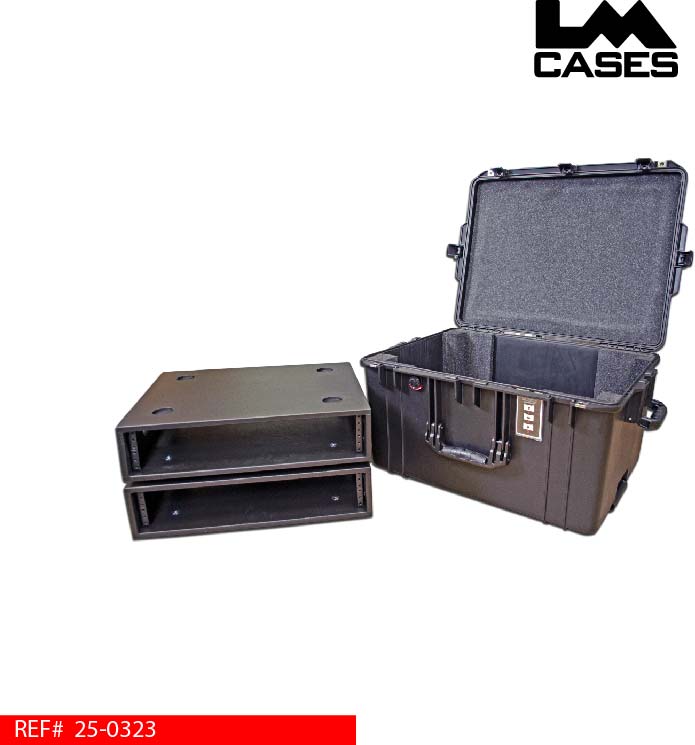

Dual 2U Airline Fly Rack
The Dual 2U airline fly rack system built by LM Cases is perfect for equipment that needs to travel by commercial airlines. The system includes 2 removable, stackable 2U rack shells with a lightweight Pelican 1637 Air case.

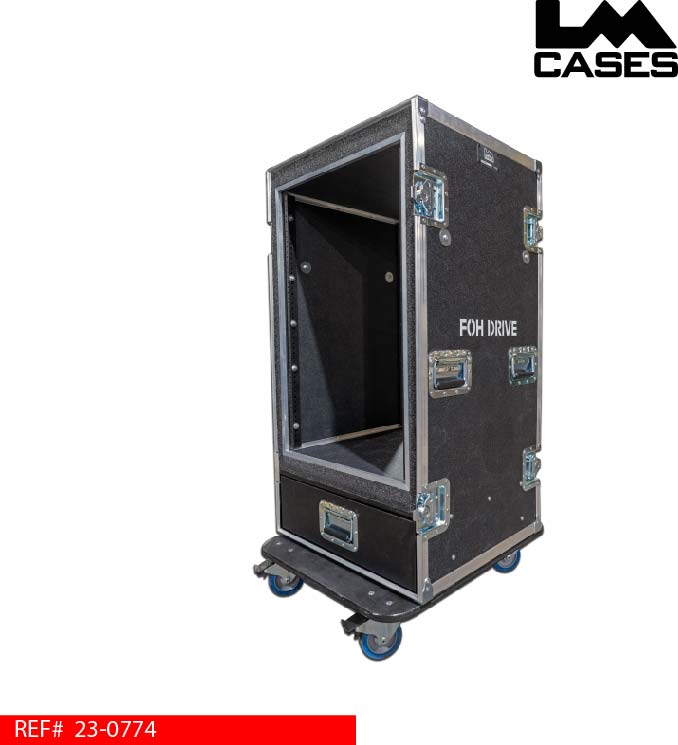

17 Space FOH System Drive Rack w/Drawer
This custom FOH processing rack case is designed to store and transport rack-mounted equipment and accessories for front-of-house audio systems, while also being adaptable for wireless microphone, video processing, or other rack applications.
The case features a shock-mounted 17U rack with front and rear rails, isolated by 2” foam to protect sensitive equipment during transport. A heavy-duty storage drawer made from Baltic Birch provides additional space for miscellaneous gear and accessories.
Constructed from ABS-laminated plywood, the case includes 4” Colson casters for mobility and custom MSA logo and “FOH Drive” stenciling, making it a durable and clearly labeled solution for live production environments.

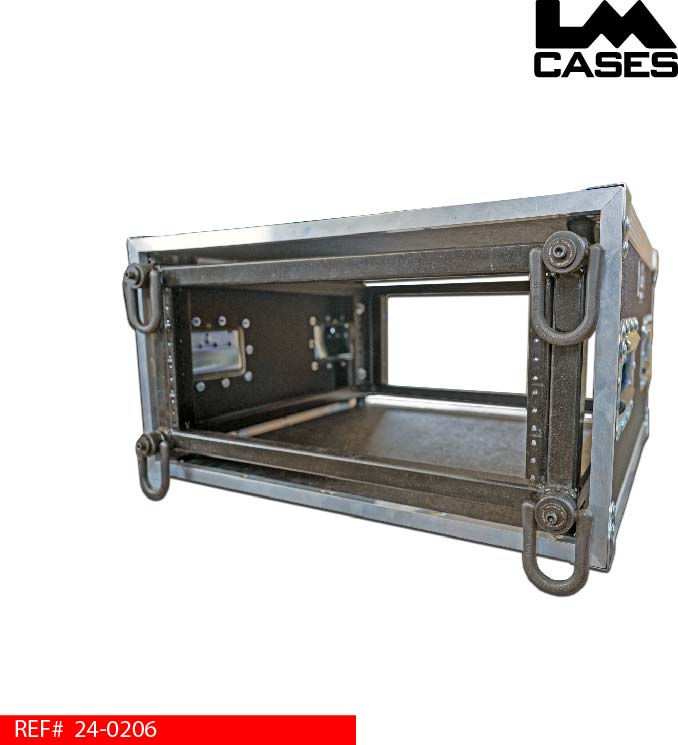

4RU Flyable Network / DSP Rack For Audio Deployments
This custom flyable network rack was built for Brown Note Productions to position network switches and DSP equipment close to PA arrays.
The system features a welded steel fly frame with a 4U rack, designed to be suspended from a line array bumper. The inner frame includes six forged steel hoist rings—four for load bearing and two for safety tethers—each rated for high load capacity with industry safety certifications.
The rack includes front and rear rack rails, safety blocks to prevent equipment from slipping out, and a marine-grade plastic dust cover with space for cable routing. Vibration isolation mounts separate the inner fly frame from the outer case to protect equipment during operation.
The exterior is built from ABS-laminated plywood with recessed handles, serving as a protective shell while the internal frame supports the load when flown.

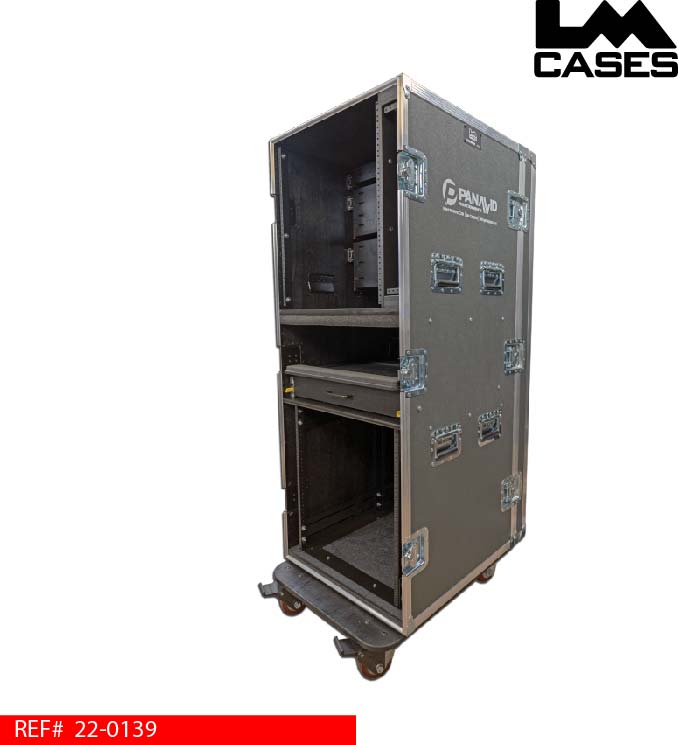

Broadcast CCU / Switcher Rack Flypack
This custom ENG broadcast rack case was built for Panavid to support mobile broadcast and production workflows.
The case features an upper 12U rack section designed for preview monitors and scopes, along with a perpendicular 1U rack space for a Clear-Com base station. Behind the rack are three storage drawers with configurable dividers for organizing accessories and equipment.
A locking center drawer houses a Blackmagic ATEM switcher and Panasonic camera controller, with additional rack space for a router panel and an integrated wrist rest for operator comfort.
The lower section includes a 24” deep 12U rack with adjustable rail sets for additional broadcast gear. Constructed from ABS-laminated plywood, the case features recessed handles, locking casters, and removable lids with table legs, making it a durable and mobile solution for broadcast environments.

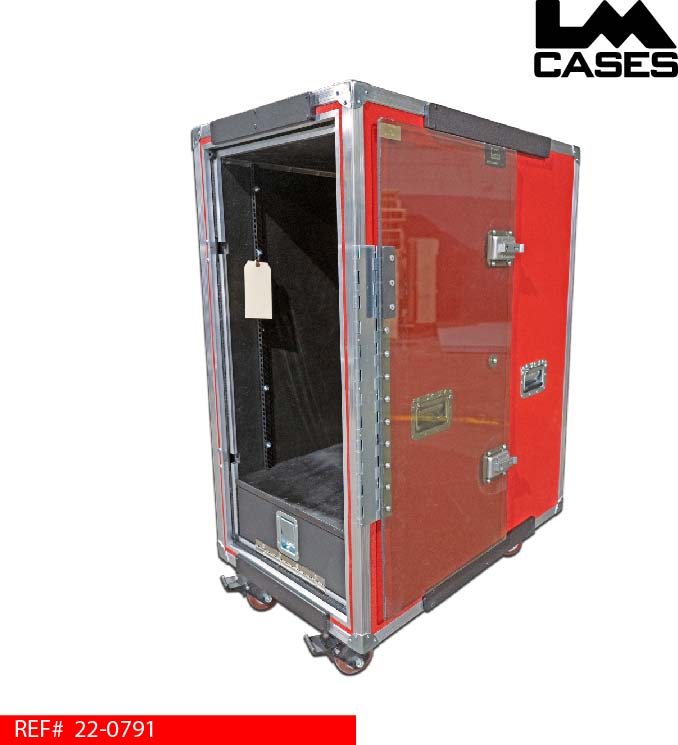

20U Portable Server Transit Rack Case
This custom 20U portable transit rack case was designed for transporting servers into data centers while supporting RFID asset tracking.
The rack features clear Lexan front and rear doors, allowing equipment to pass through RFID portals without removing the servers. Inside, a shock-isolated rack shell surrounded by foam protects equipment during transport. The rack includes front and rear rails with deep mounting depth and a lower storage compartment for accessories and rack hardware.
The exterior is constructed from ABS-laminated plywood and includes 270-degree hinged doors, locking latches, recessed handles, protective runners, and Colson casters for durability and mobility. Each case also includes barcode labeling and unique serial identification to support inventory management.

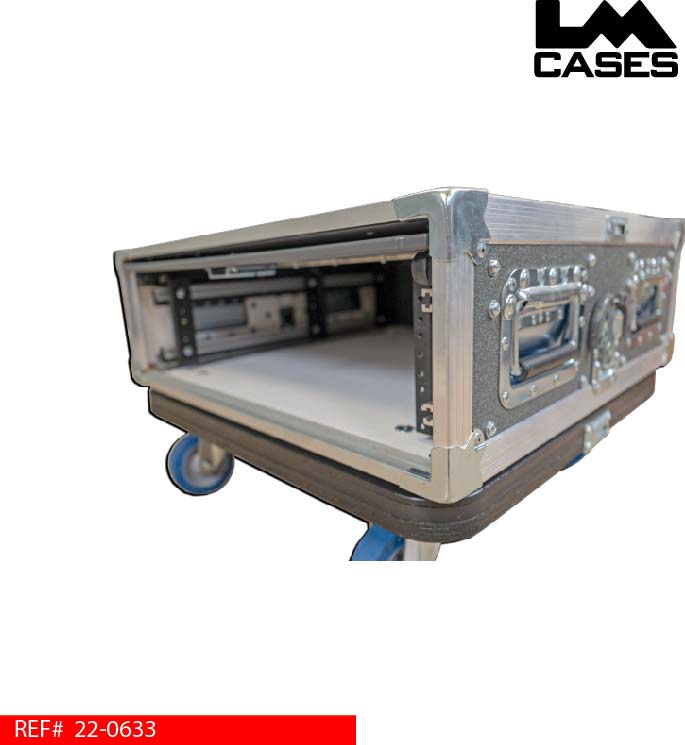

3RU Pocket Door Rack - 23” Deep Shell
The LM Cases Lo-Pro racks are designed as smaller versions of our Pocket Door Series. These racks are perfect for rental companies and users who need to configure racks per gig. The rails are mounted in slide tracks allowing recesses to be set per application using a standard Philips screwdriver. Each rack contains 3 rail sets. The mid rail set is intended for either rear mounting equipment like amps and drawers or cable management.

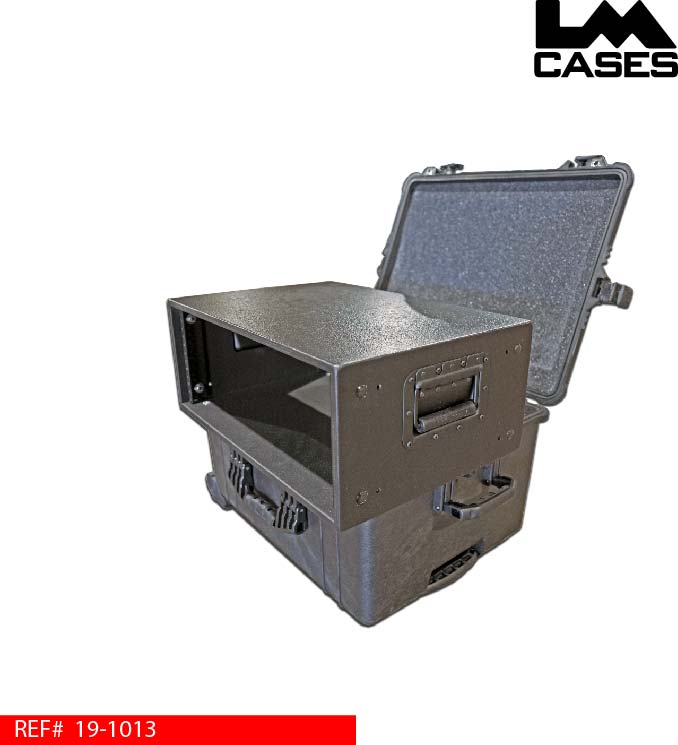

4 Space Fly Rack w/Pelican 1620 Case
This 4RU portable flypack is designed portable fly dates in mind. The removable rack shell is built from ½” Baltic Birch plywood. The rack is finished with black textured coating and features 2 deep recessed black handles and large rubber feet. Pre-tapped, 10/32” rack rail is provided at the front & rear positions. 2 rail recess options are provided at ½” and 1”. These recess options allow you to have rail-to-rail depths of 13” - 11”. A custom CNC cut PE foam insert protects the rack with 2” foam at all points. 2” are left open at the front and rear of the rack for any cables or protruding equipment. An accessory compartment is provided under the rack shell for storage.
2U Solid Walnut Angled Studio Desktop Rack For IO, Router Panels & Preview Monitors
The 2U angled studio rack is designed for desktop applications where a router panel or IO panel are required. Built from solid walnut, this rack is both durable and aesthetically pleasing for mobile and fixed production environments.

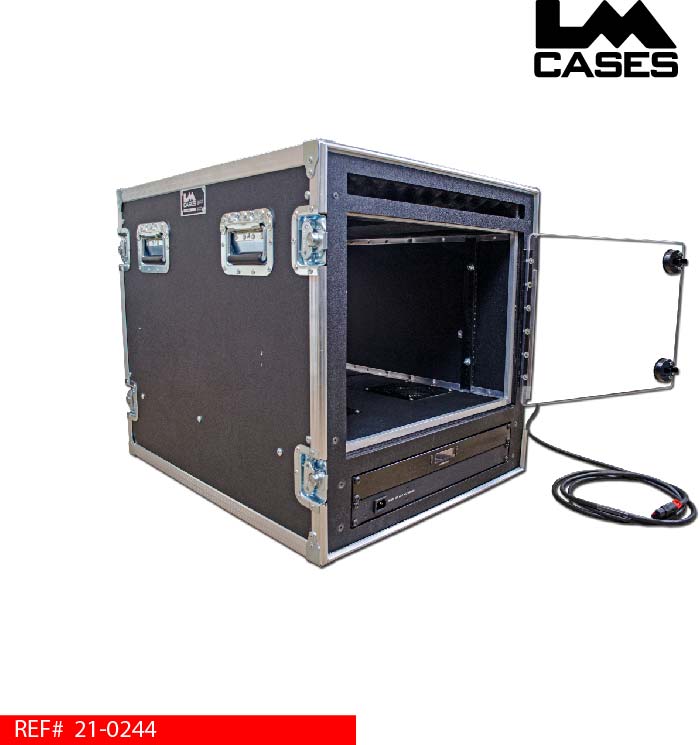

Noise Isolating Portable Rack Case For NewTek Tricaster System
This rack was designed to hold NewTek Tricaster components in an installed application. Noisy equipment is installed in the rack to allow it to remain close to the user in a quiet production environment.

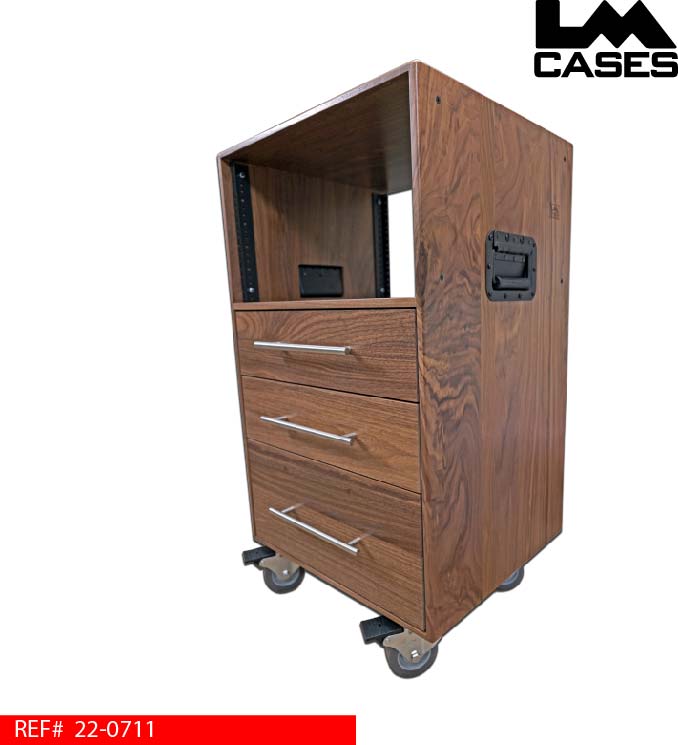

Studio Control Room Storage Rack/Workbox - 6U Solid Walnut
The studio control room storage rack is designed to hold rack mount equipment and peripherals in a decorative unit for installed applications. The rack is perfect for home studios, conference rooms and houses of worship where a high quality, aesthetically pleasing storage solution is required.

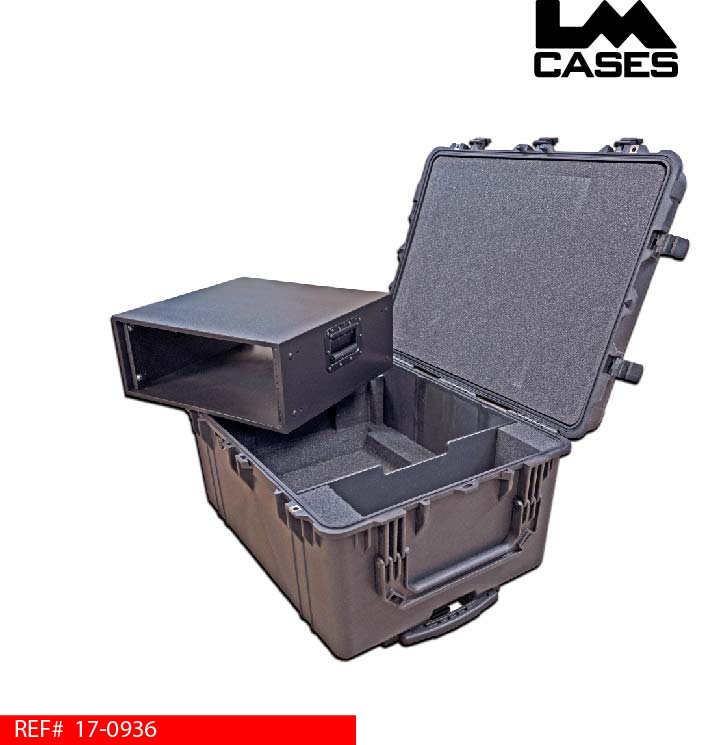

4 Space Fly Rack For Deep Equipment
This 4RU portable flypack is designed with deeper rack equipment in mind. The removable rack shell is built from ½” Baltic Birch plywood. The rack is finished with black textured coating and features 2 deep recessed black handles and large rubber feet. Pre-tapped, 10/32” rack rail is provided at the front & rear positions. 2 rail recess options are provided at ½” and 1”. These recess options allow you to have rail-to-rail depths of 18”, 17.5” and 16”. A custom CNC cut PE foam insert protects the rack with 2” foam at all points. 2” are left open at the front and rear of the rack for any cables or protruding equipment. An accessory compartment is provided under the rack shell for storage.

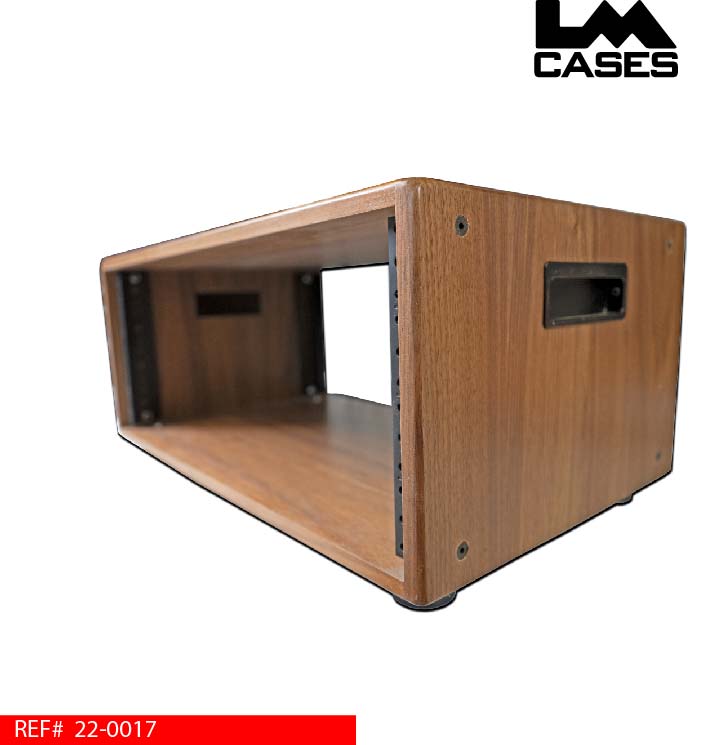

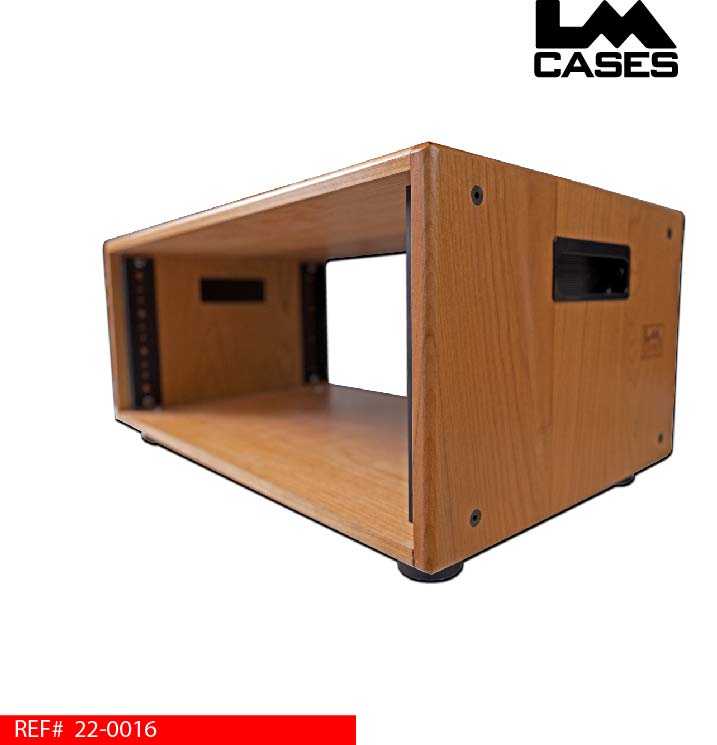

4U Studio Outboard Rack, 12” Deep - Solid Cherry
The LM Cases 4U studio outboard rack is built from solid ½” walnut finished with a light satin lacquer. Exposed dove tail joints add a beautiful aesthetic in addition to providing a strong bond between the panels. The rack features pre-tapped 10/32” front and rear rack rail recessed ½” with a rail-to-rail dimension of 11”. The rack features 2 black handles and 4 rubber feet.

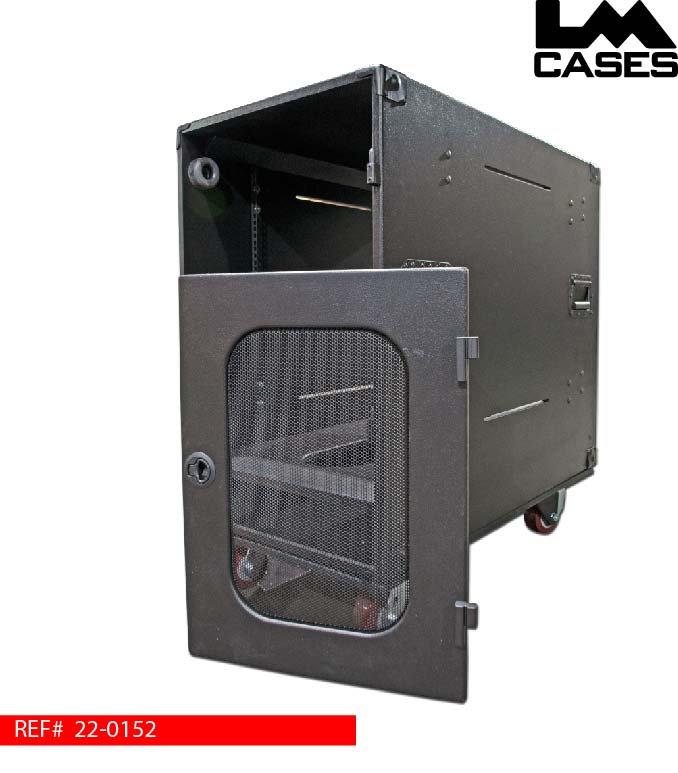

14U Heavy Duty Installed Server Rack w/Removable Door
This case is a heavy duty server rack designed for installed and on campus applications. The rack is intended to offer a more portable alternative to standard metal server racks. Featuring 14 RU of rack height and 30” of rack depth, the rack will find a perfect home in office server applications, data centers and long term installs.
16 Space Shock Mount Rack w/Table Legs In Front & Rear Lids
This is a modified version of our standard series 16 space shock mount rack with table legs added to each lid built for T-Mobile.
