Racks
12U Standard Series Shock Mount Rack
This is LM Cases’ standard series shock mount rack shown in a 12RU height. The racks are produced in 2-16RU heights and feature 20” shell depths. All racks in the series feature stacking hardware. Racks 2-8RU come standard with stacking feet on the bottom and stacking cups on the top of the case. Racks 10U and above feature stacking cups on the top only with 4” Colson casters being provided. The smaller 2-8RU racks are designed to stack on the larger 10U and above height racks. This stacking concept allows easily built modular systems.
16U Portable HD Server Rack w/KVM Section & Storage Drawer
This is a heavy duty 16U portable server transport rack manufactured for SNA Displays. The rack is designed to hold rack mount servers and other video processing equipment. The rack features an external 2U section for a KVM located above the main rack section. A storage drawer and external 4U patch section is also provided.
36RU Portable Data Center Transport Network Server Rack
This is a large format portable heavy duty rack mount case designed for moving servers and network equipment between sites. Primarily designed for moving equipment between integration shops and data centers, this rack can also be used in installed applications. The inner rack shell is built out of ½” plywood finished with black ABS plastic. Square captive nut rail is mounted at the front & rear of the rack shell. The 36” deep shell features 35” of usable rail to rail depth. The inner shell is isolated from the exterior case via 2” foam on all sides. 3.5” deep lids are secured by 6 latches each. The case exterior is built out of ½” plywood laminated with your choice of ABS plastic colors. 14 deep recessed handles are mounted in ergonomic positions on all four sides of the rack. 2 x 2 configuration handles are mounted on the side of the case to provide 2 handles for lifting, and 2 for pulling. A 1 x 2 handle pattern are mounted on each lid. 1 handle is positioned for a center pull, with the bottom 2 handles providing lift points. The case rides on 4” x 2” Colson HD casters mounted on a ¾” plywood caster board. 2 casters lock.
20RU Portable Heavy Duty Server Rack Case
This heavy duty server rack is designed for portable applications. Designed for transporting servers between data centers, trade shows and for mobile command stations. The rack is built out of ½” plywood laminated with your choice of ABS plastic colors. The inner rack shell is also built out of ½” plywood. The inner shell features a black ABS plastic lined interior. Box style square cage nut rack rail is provided to accommodate a variety of server and networking equipment mounting brackets. The rack shell is 29” deep. The front and rear rails are recessed ½”. The rails are spaced 28” apart.
Triple Wide Video Rack w/Custom LED Logo Light Panels
This case was built for Upstage Video. The case features 3 – 20RU tall, 24” deep rack bays. Custom LED logo light panels were built to provide a more impactful presence verses a standard silkscreen.
8RU Installed Rack Shell - 12” Deep
This rack shell is designed for use on table tops where a traditional flight case is too bulky, or not aesthetically pleasing. The rack shell can be used for fixed installations, or packed in a larger exterior case. Perfect for video equipment, network switches, test equipment and audio interfaces. The rack is built out of ½” Baltic Birch plywood finished with black texture coating. All edges are routed with any and all voids filled. The rack features 2 black spring loaded recessed handles, pre-tapped 10/32” rail, and four large rubber feet.
6RU Flyable Network Switch Rack For Dusty/Industrial Environments
This rack is designed to provide isolated dust proof storage of networking equipment in installed dusty and industrial applications. The rack can be flown or floor mounted. The case is designed to pull cool air through the bottom and exhaust hot air through the case sides. At max flow rate, the air in the rack will be replaced 90 times per min.
24 Space Insert / Surround Rack Set
This case set was built for PRG. The case features a removable 24RU inner rack shell and a custom exterior case.
10 Space Flat Panel Shock Mount Rack With Top Lid Storage
This case features a ½” plywood inner rack shell that is foam shock mounted. The rack features a 21” deep rack shell. Usable rail-rail rack depth is 18” with 1.5” front & rear rail recess. The case exterior is built out of ½” plywood, and features stacking caster wells, 4 deep recessed handles, 4” Colson HD casters (2 locking), and slam latches. The lids store inside of the case shell above the rack. The lids are stored in individual compartments allowing them to be removed independently of each other. This case is perfect for amplifiers, in ear monitors, headset communications and stage boxes!

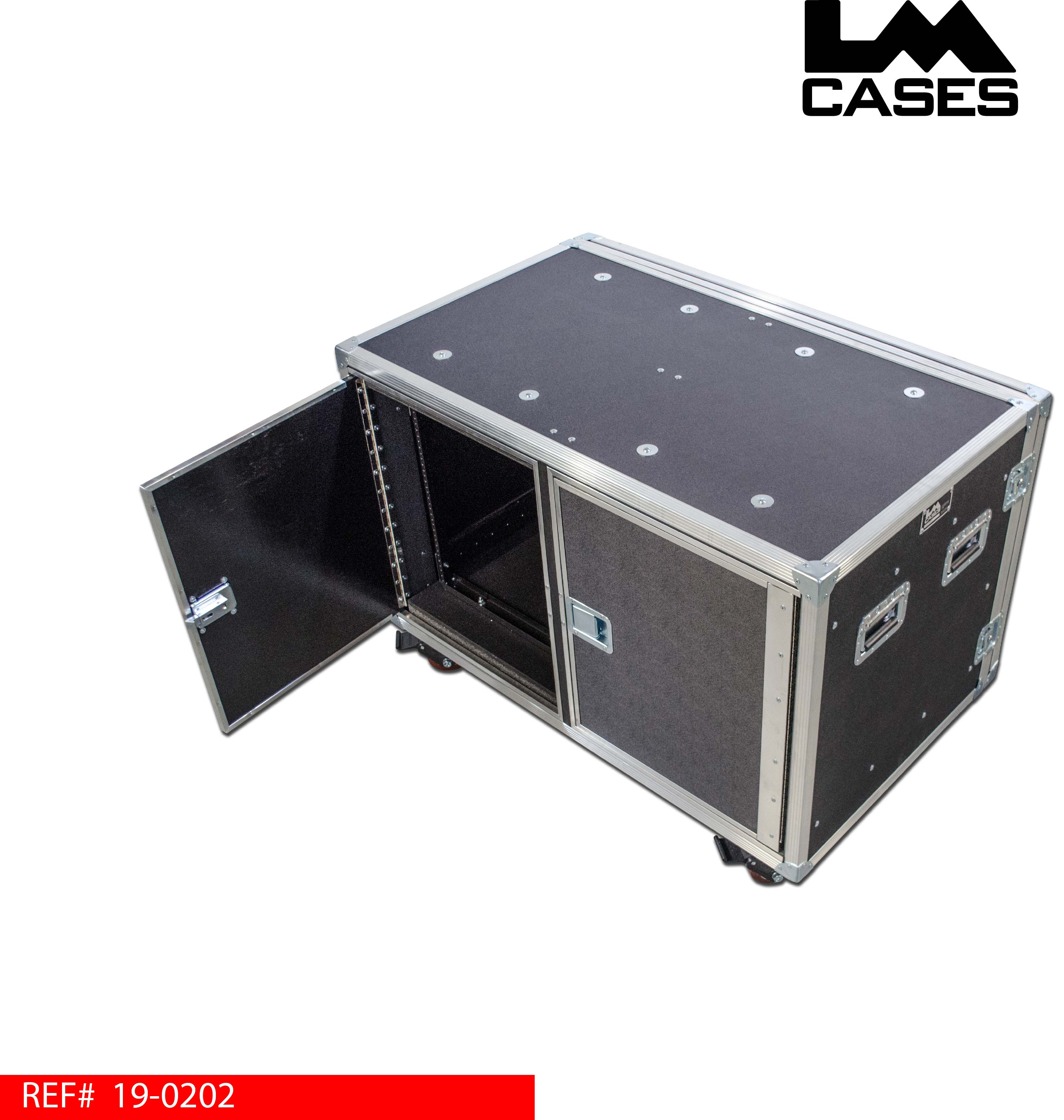

12 Space Double Wide Shock Mount Pocket Door Rack
This case features 2 – 12RU shock mounted rack sections. It is designed around a 48” x 30” truck pack allowing it to be a half pack in a 96” truck and a third pack in a 90” truck. The case can be used as a stand for a FOH or monitor console, a system processing workstation, or a dedicated RF rack. The case features 2 pocket style doors covering the front of each rack section. The doors are mounted on HD glides that allow each door to slide into the sides of the case. The back of the case features a fully removable rear lid with an integrated hinged trap door. The rear lid can be removed to allow full access when loading the rack. The rear lid is designed to stay closed during use. The rear trap door is vented and hinged to provide quick access to all interior equipment. The inner rack shells feature adjustable front, mid and rear rack rail mounting points. The rack features 20” in depth from the front rails to the rear rails. There is 2.5” of clearance between the inside of the front lid to the front rails, and 4.25” of clearance between the rear rails and the rear lid. The exterior case is built from ½” plywood laminated with your choice of ABS plastic laminate colors. The case features 6 deep recessed handles, 3 vent dishes and 4” x 2” Colson HD Encore casters mounted on a full ¾” plywood wheel pad. The front 2 casters are locking.
12RU 24” x 30” Truck Pack Shock Mount Rack
This case is designed for touring applications where truck pack dimensions of 24” x 30” are crucial. The case features a 3/8” plywood inner rack shell with front and rear rail with 10/32” pre-tapped holes. The inner shell features a rail to rail depth of 20.5” with .5” recess on the front and rear rails. The case features 3.5” deep front and rear lids which allow for a clearance of 4” extending beyond the front and rear rack rails. The inner shell is shock mounted with 2” foam above and below, with 1” foam protecting the sides.
2RU Airline Carry On Fly Rack
This case is designed for touring engineers who require outboard rack mounted gear. The Pelican 1510 case is designed to be carried on and stored in most overhead compartments on commercial airlines. The interior rack is built from ½” Baltic Birch and finished with black texture coating. The rack features 2 recessed black handles. Front rail depth is set at 1” to allow for knobs and connectors on equipment, the rear rail is set at ½”. Different rail recess options adds functionality, allowing the user accommodate most pieces of outboard equipment.
32 RU Portable Server Noise Isolation Rack
This case was designed for Nvidia to be a portable server rack for use at trade shows. The case holds 32RU of gear in a shock isolated inner shell to prevent damage to the delicate servers. To dampen the noise of the server fans, the inner shell features 10 ultra low noise cooling fans and 3/8” thick clear Lexan doors at the front and back of the shell.
Professional Wireless PWS LPDA Antenna Case w/Combiner Rack
This case is designed to hold 2 PWS LPDA antennas, and features a removable 2RU rack shell. The antennae are held in a custom CNC cut foam insert that hold them in a nested configuration. The antenna compartment is separated from the rack via a pieces of 1/4” marine grade plastic, this prevents the antennae from rubbing against the bottom of the rack shell. The rack shell is built out of 1/2” Baltic Birch plywood and is finished with black texture coating. The shell features 10/32” pre-tapped front & rear rack rail. Each set of rails is recessed .75”, and has a rail to rail rack-able depth of 11.75”. All the interior components are held in a Pelican 1620 waterproof case.
Lawo Modular Rack Display Case
This case system was designed for the Lawo Group as a modular approach to transport and display their equipment for trade shows. The system is designed around 3RU rack shells, and a storage box that is 3RU in height that stack together allowing for multiple confirguations. The concept allows the racks to remain stacked and locked together in the outer case tray, this expedited the set up and tear down of Lawo's booth.
