Single Position Video Broadcast Workstation
This custom video flypack case was built for SoCal Rentals. The case is designed to be a prewired, quickly deployable video production rig.

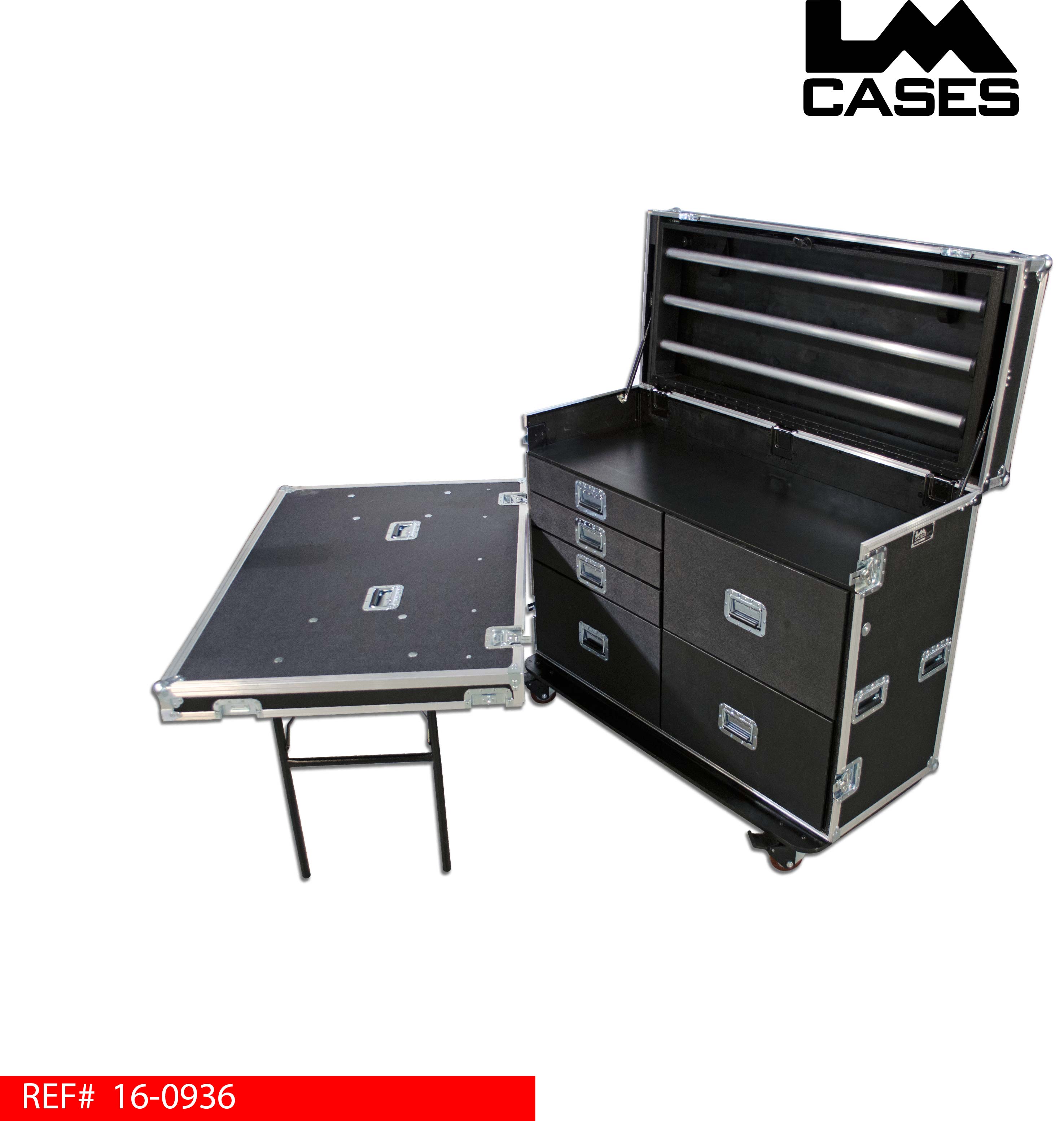

Art Gallery Mounting/Installation Work Station
This case was built for the Garth Greenan Gallery as a mobile work station used in art mounting and gallery installations. The case lid features a tilting frame that has 3 rods for mounting paper rolls. The frame is designed to hold 3 rolls of paper that are 6” diameter. For easier access, the frame tilts forward. It is secured with a cable latch with a central pull handle that secures the frame at the left and right side. The case lid is held in position with gas springs.
Custom Portable TV Panel Work Station
This case was built for MIT as a portable work station for a Tricaster system. The case lid features a centered tilting monitor mount allowing the user to supply their own monitor. The main work surface features a slide out shelf for the Tricaster panel. A 17RU rack section is mounted below for equipment storage. Four storage drawers are included next to the rack section.
Miami Dolphins Projector/Document Camera Workstation
This case was designed for the Miami Dolphins to display video and photos for team presentations. The case features a projector, and a document camera attached to a top work surface. The system is designed with quick setup and tear down in mind. All components are permanently wired allowing the user to simply remove the case lids and plug the system into a power source.
University Of Maine Video Flypack
This video fly pack was designed for the University Of Maine. The LM Cases Custom Integration department handled the installation of the audio visual components and the construction of the custom rack panel. The case features a flip up lid supported by gas springs, a dual 5RU shock mounted rack, slide out work surface with integrated IO panel and a dual 10RU shock mounted rack section.

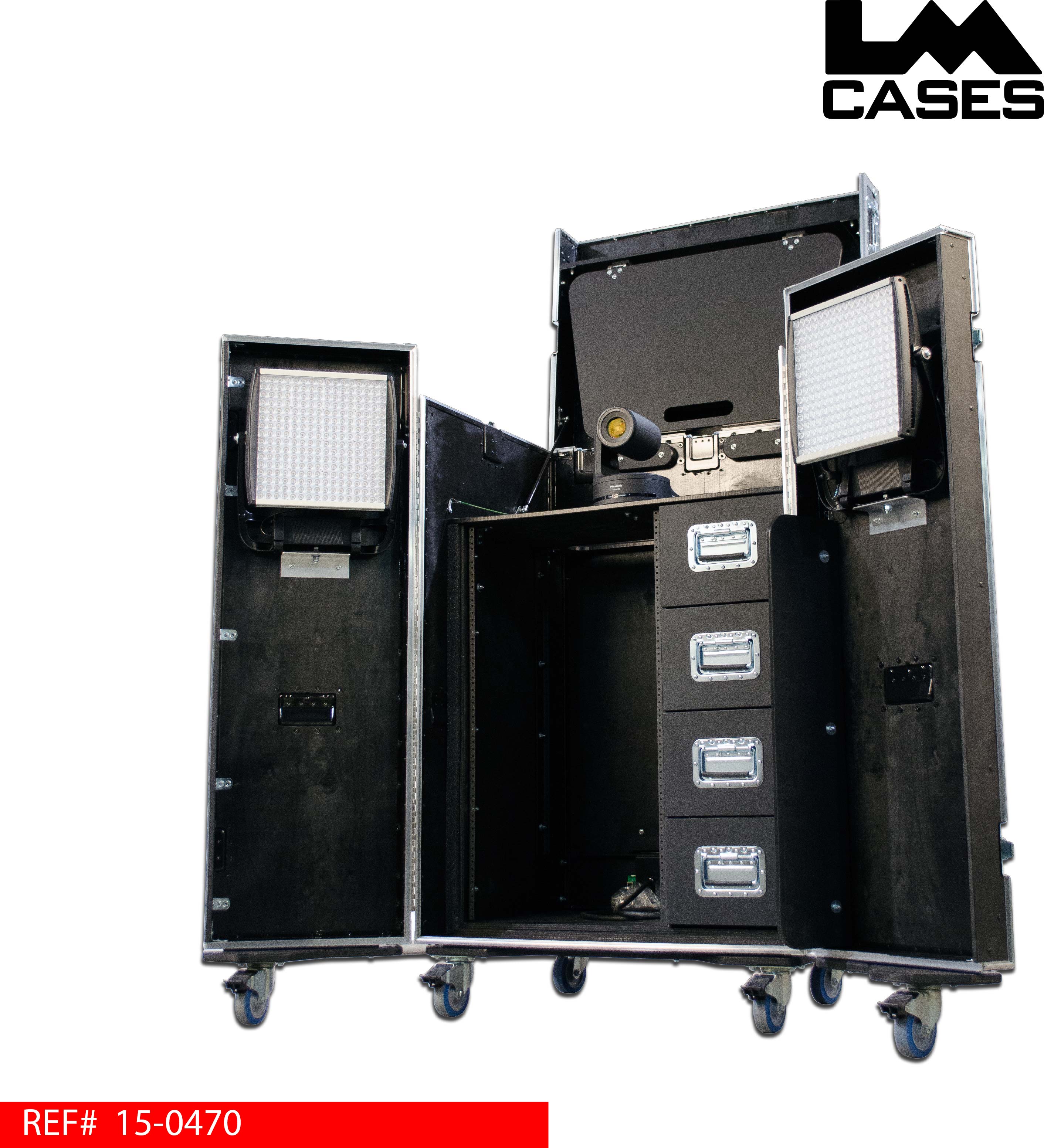

NBA Portable Interview Workstation
This case was designed as a portable interview station used court side by the National Basketball Association. The case was designed for The Systems Group who handled the final system integration, the LM Cases Custom Integration department provided the rack mounted IO panel in addition to all of the power input and rough wiring. A case was built for each NBA team to have in their arena for pre and post game interviews, the case is simply rolled out, plugged into power and Ethernet and powered on. The player sits in front of the Panasonic camera and looks at the preview screen mounted in the case lid, lighting is provided by 2 LED wash panels mounted in the case lids.
Microphone Tech Workbox
This case was designed for Loyola University to hold microphones and stands for their event services department. The workbox holds an assortment of mics, stands and components allowing the Event Services department to bring a singular workbox that holds all their equipment to events.
Detroit Tigers Medical Workbox
This trunk was designed for the Detroit Tigers as a medical workstation to be used in the teams locker room. The trunk features 3 Tilt Lock bins mounted in the lid, a work surface with an integrated power strip and 3 storage drawers.
Triple Wide Video Flypack Workstation
This case was designed for Ashland University to hold video production equipment for on campus use. The case features 3 - 12RU monitor racks, 3 - 16RU equipment racks and dual work surfaces for controllers and laptops.

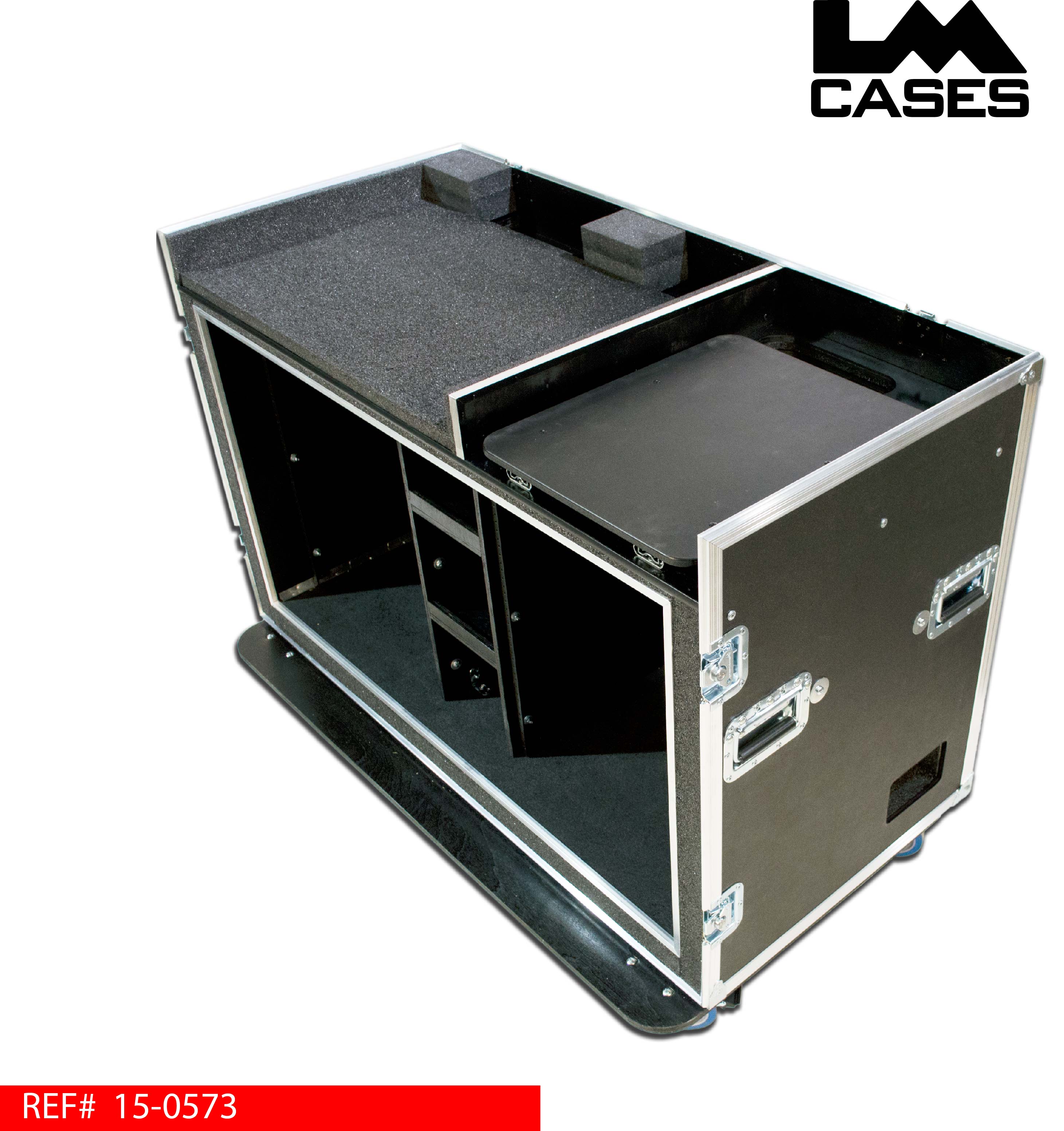

Yamaha QL5 Audio Workstation
This case was designed to be a portable front of house production workstation centered around a Yamaha QL5 console. The case holds the console in a custom 1" PE foam lined compartment with space behind the console for cables and connections. To the right of the console, the case features a Formica laminated slide out work surface which is perfect for a stage managers call sheets or as an auxiliary laptop station.
Portable Tricaster TV Production Flypack
This case was built for Creative Live as the video portion of a portable audio & video mobile rig, CLICK HERE to see the matcing audio case.The case features a slide out shelf for a NewTek Tricaster TCXD855 control surface with a video monitor mounted in the lid above the console. The lid features 3 large barn doors to keep the glare down as well as prevent light pollution from the monitor on dark sets. Below the mixer section is a 16 space rack section and 4 drawers.
iMac Video Switcher Workstation
This case was designed for use as a portable video switcher workstation based around 2 - 21.5" iMacs. The case holds the iMacs and a Dell E2014 monitor on a custom flip up lid that is supported by HD gas springs. Below the monitors is a work surface that provides a home for keyboards, mice and a video switcher. Below the work surface is a triple wide shock mounted 12RU high rack that accommodates a total of 36 rack spaces.
Portable Video Fly-Pack Case
This case was designed to be a portable pre-wired video fly pack. The case features dual 24" Dell Ultrasharp monitors, dual 4 space shock mounted racks, a stationary work surface, a retractable switcher work surface, and dual 9 space shock mounted racks below the switcher.
GrandMA2 FOH Workstation Case
This case was designed for Volt Lites by the LM Cases Custom Integration Department to be a fully integrated front of house workstation for large scale tours. The LM Cases CI department handled the sale and installation of many of the case components such as the video monitors, audio monitors, mounts, custom cables, and rack mounted components.
The case design is centered around the GrandMA 2 Fullsize lighting console which is mounted on a retractable shelf. Because each show is programmed and run from the console, the case needed to have 2 distinct "Live" and "Program" modes. In Live Mode, the console is retracted over the case and the 2 monitors are moved over the audio monitors so the operator can see the stage. In Program Mode, the console can be extended from the case allowing the programmer to sit with their legs under the console like a traditional desk. The console sits on 4 pedastals that hold it by its feet to keep it firmly in place during use and provide additional shock protection during transport. The console is also held by 2 lid mounted dividers that separate the console from the speaker enclosures. The pedastals are made out of PE foam and marine grade plastic. The monitors can also be move over the rear of the console for maximum visibility. The LM Cases CI department created a Powercon inlet and custom cable to allow the console to be powered via the locking Powercon connectors.
The Dell 23" LCD monitors are mounted on articulating arms allowing them to swing over the console and monitors and be spun between portrait and landscape modes. The video switching between computers, the console and media servers is handled by a 4 in 4 out video switcher.
The audio playback system is based around a 2.1 KRK speaker system compromised of 8" monitors and a 10" subwoofer. Custom black texture coated foam lined enclosures were created to hold the 8" monitors allowing all components to be firmly mounted during transport.
All rack mounted equipment is housed in a 11RU shock mounted double wide rack under the console. The rack section is built out of 1/2" plywood laminated with silver abs plastic allowing a more reflective surface in case equipment needs to be serviced during a show. Cooling is provided by 9 fans pulling air from the outside and cooling both rack sections as well as the computer section to the right of the rack.
The exterior case is built out of 1/2" plywood and features 4" x 2" Colson casters, deep recessed hardware and a 2 color silkscreen of the Volt Lites logo. The top lid has 4 recessed D-Ring shackles mounted in it to allow a table to be strapped to the top of the case during transport. Because the case will be forklifted on to a FOH platform, LM Cases custom 1/4" aluminum forklift guard was employed. The forklift guard is contours the aluminum corner stock of the case and wraps under to provide extra protection when the case is lifted.
Special thanks to Matt and the Volt Lites team!

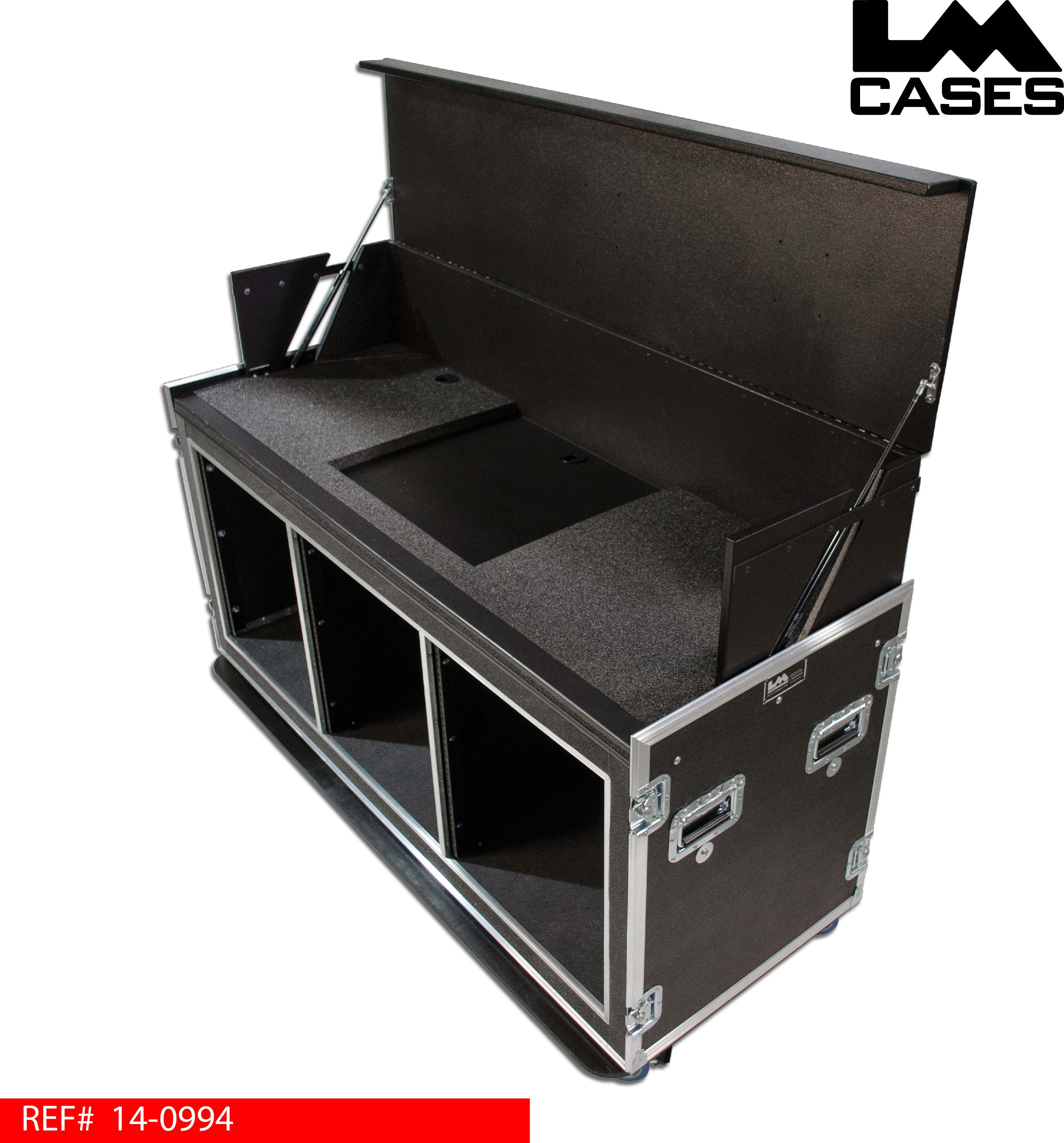

iMac Production Workstation
This case was built for Starlight Visual. The case is designed to be a self contained mobile lighting production solution that is plug and play. The LM Cases Custom Integration (CI) department installed and provided many of the electronic components including the 2RU i/o panel, keyboard, mouse, rack drawer, rack shelf, powerstrips and electrical connections prior to shipment to Starlight Visual for the final assembly.
