Production

Roland V-800HD Switcher Case

This case was designed for a Roland V-800HD switcher as a mobile workstation that can be quickly set up. The case holds the switcher in a custom rack mount compartment and features a pre drilled VESA pattern in the lid for mounting a monitor. The switcher compartment not only securly holds the unit, it also has a trap door to allow cables to be hidden for a sleek finished look. The exterior case is built out of 3/8" plywood.

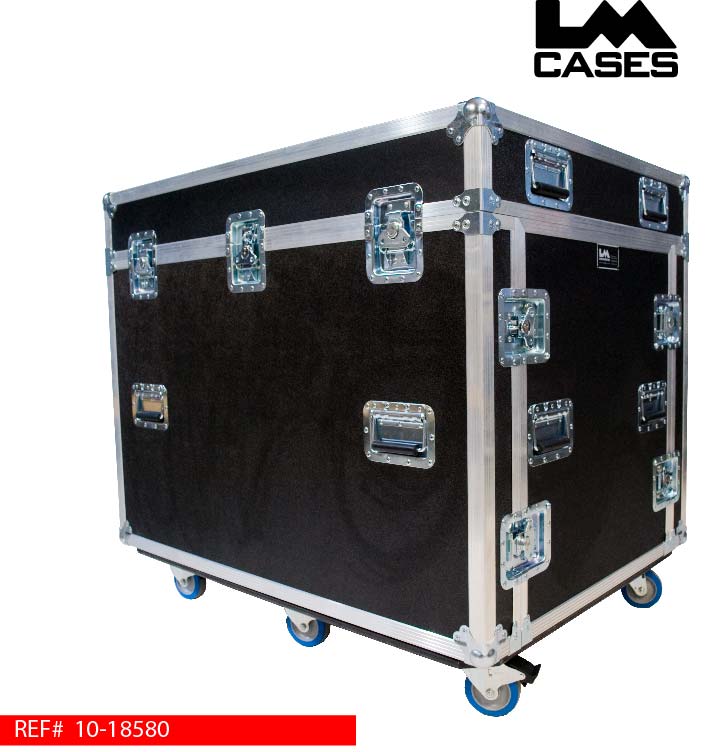

IVCI International Video Conferencing Workstation

This case was built for International Video Conferencing. The exterior case is built out of 1/2" plywood, and features a 1/2" inner rack/worksurface structure built out of 1/2" Baltic Birch. The entire inner structure is shock mounted using 2" foam on all sides. The rack portion features dual 14RU racks with 25" of usable space between the front and rear rack rails. The top portion of the inner structure is laminated with black formica to allow for a smooth work surface. The top work surface also features a 1RU recessed rack slot and a custom built housing for a LCD touch screen controller.
