Power Systems - Distros/Power Products
Dual Source Power Distribution Unit For Floating Set Piece
This custom power caddy was designed for a moving set piece used by the Backstreet Boys for their residency at the Sphere in Las Vegas.
Dual Source Temporary Site Power System - 15 Amp 1 Phase
The LM Cases Dual Source Temporary Site Power System is designed to provide multiple power outlets such as standard AC, USB and locking Neutrik True1. The system can operate on standard 15-amp AC or be isolated from the electrical grid via its built in generator. Applications for the system include mobile offices, command centers, locker rooms and athletic sidelines.
D 1/1 15-Amp Edison Power Distribution Unit
The LM Tour Systems D 1/1 15-Amp power distribution unit is designed for applications where an Edison AC power is the desired input connector. The D 1/1 has many of the same features of our larger 2 & 3 phase units in a 15-amp single phase version.
D3/2 3 Phase 30 Amp Rack Mount Power Distro
The LM Tour Systems 3/2 power distribution unit is designed with amplifier racks in mind. The 3-phase distribution unit provides a variety of outlets allowing for multiple uses for a variety of applications. Power is brought into the unit via a Hubbell 2815 flanged inlet using a NEMA L21-30 locking connector. A Hubbell HBL2816 flanged outlet is provided for looping in additional systems or for local courtesy power. 3 LED lights are located behind the flange on the inlet showing when power is present at the inlet.
T1 Power Distribution Unit - True1 Locking
The LM Tour Systems T1 power distribution unit is designed for portable applications where locking power distribution is required. Power is brought into the unit via a front mounted Neutrik True1® inlet. A 20amp hydraulic breaker is wired directly after the inlet, with all outlets being wired post breaker. A combination volt/amp display shows available voltage and the current amp draw from devices connected to the distro. A True1® outlet is located on the front panel allowing multiple distros to be linked together. A LM Tour Systems 4-plex or HD pendant power bank can also be specified for additional outlets. In addition to the True1® outlet, a HD 20amp duplex outlet is also provided on the front of the distro.
1U Half Rack Width Power Distribution Unit
This 1RU half rack power distribution unit is designed to work with our half rack width studio rack. The power unit is designed to provide 4 outlets for half width racks. The unit features a front mounted C13 IEC power inlet with an indicator LED to show when power is present. 2 duplex outlets are rear mounted for your equipment. Don’t forget to add a LM Tour Systems Locking IEC power cable!
Socapex Break Out & Switch Panel Set
This custom Socapex panel set was designed for a theatrical application where it was requested for switched control over 6 duplex outlets. Power is fed into the system via Powercon connector and is split evenly through 6 switches, then to 6 outlets. The 46-578 switch panel is designed to be desk mounted allowing for fast access with the 46-479 outlet panel being mounted on the rear rail of a rack. A 3ft Socapex extension cable connects the 2 boxes. Should the user desire to use the outlet panel in a different location, a standard Socapex extension cable can be used. The 46-479 outlet panel can be used with any standard Socapex cable/distro as a breakout.
NPDU Network Power Distribution Unit
This custom rack mounted power distribution is designed with network racks in mind. The 2RU, 6” deep chassis is built from .125” thick brushed aluminum that is black anodized.
LM Tour Systems LMAB 12v, 2RU LED Rack Light Enclosure w.Flexible Task Light
This power supply is built by the LM Cases Custom Integration department to provide a central source for lighting and control in integrated systems. The front panel features an 18” dimmable, flexible, LED task light. 2 switches are provided to allow switched control over 2 banks of lights.

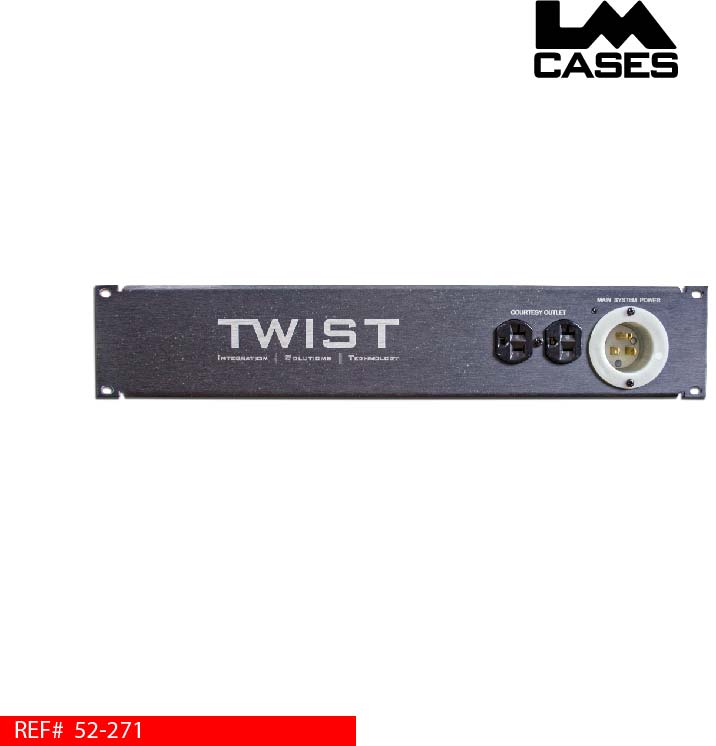

15amp 2RU Custom Branded Power Input Rack Mount Panel
This panel was built for Twist Integration Solutions. The panel is designed to be the main power input source for their integrated systems. Power is brought in via a Hubbell 15amp recessed inlet. A red LED indicator light illuminates when voltage is present. Power is routed to a front mounted courtesy outlet and a white rear mounted outlet.

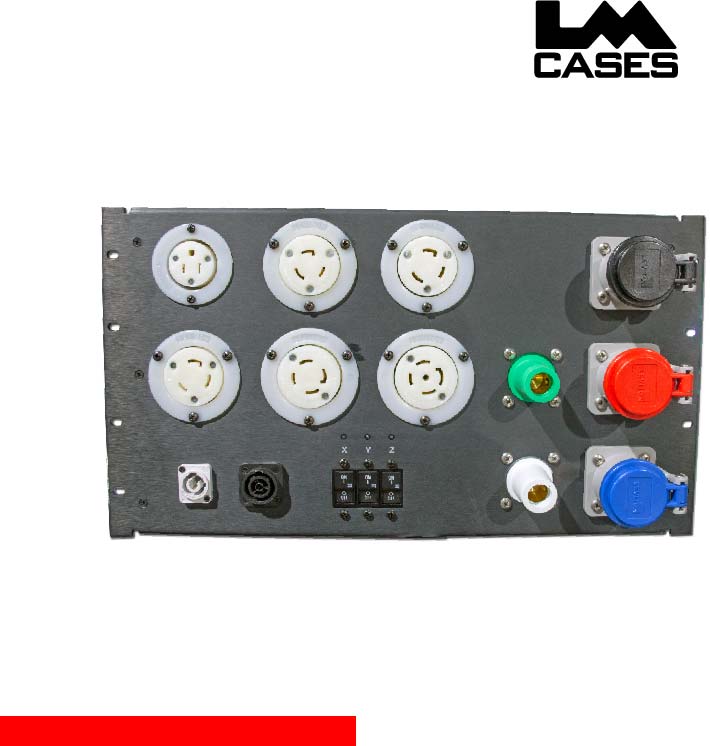

L21-30 3 Phase Testing Distribution Panel
This custom power test panel is designed to split 3 phase power via a L21-30 connector into a variety of output connectors. The intended purpose is providing a central power source to allowing different systems to be electrified and tested before leaving a rental/integration shop.
WBQB-L Work Station Courtesy Outlet Box w/USB Charging & LED Lights
The LM Tour Systems WBQB-L workbox courtesy power box is designed to provide centrally located power and lighting to workboxes. The box is powered by a Neutrik Powercon locking connector. Power is sent to two Leviton T5633-E outlets. These outlets provide 4 Edison AC outlets in addition to two USB-A, and two USB-C outlets. AC is converted to DC internally to power 2 – 3 pin XLR connectors for 12v lights. The box features a 10” x 10” back plate used to attach the WBQB-L to any surface.

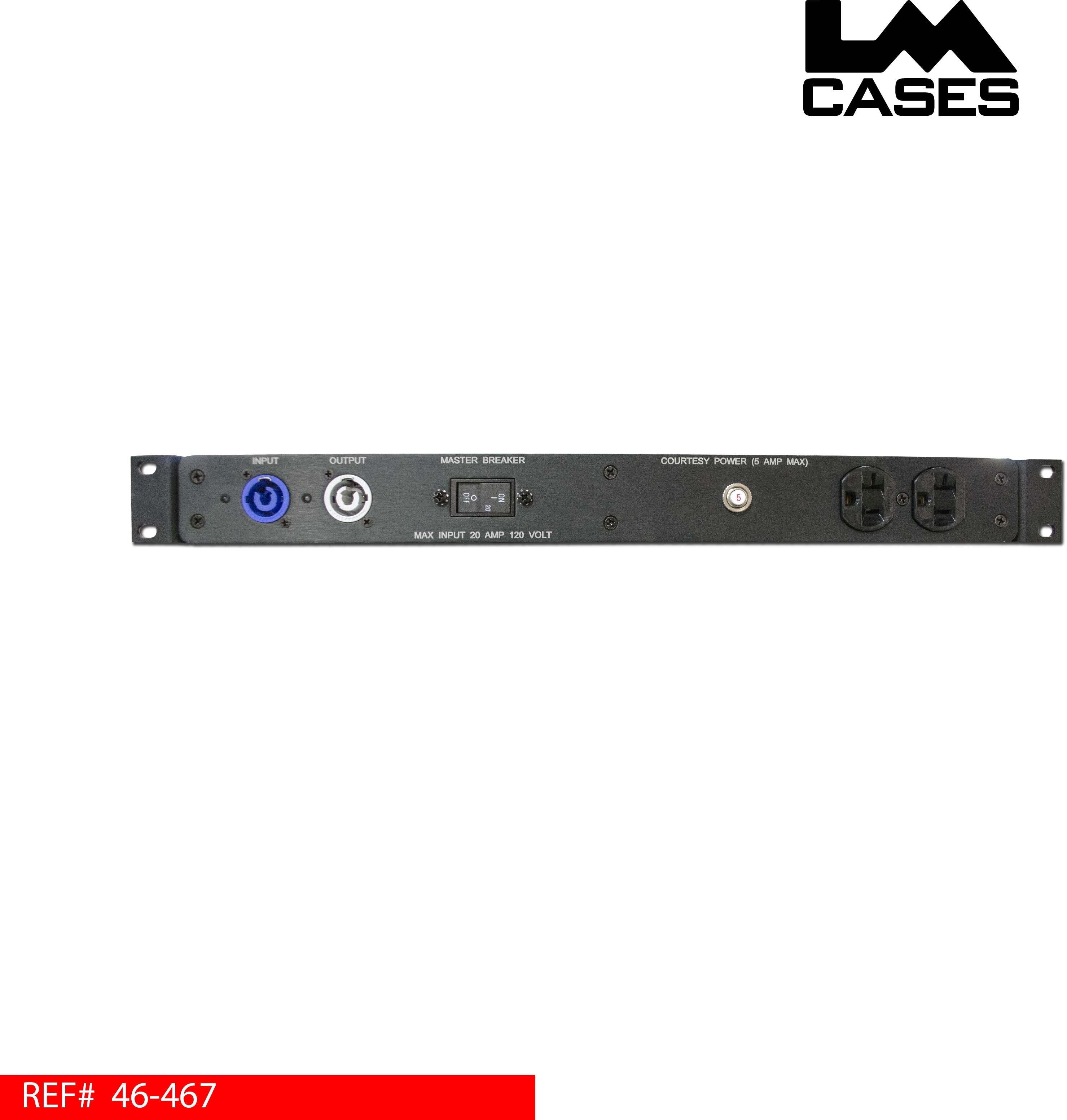

D1 Power Distribution Box
The LM Tour Systems D1 power distribution box is designed to be a central power hub for mobile racks and integrated systems. Power is introduced to the box via the front Powercon connector. A blue status LED shows when power is present. The 20amp hydraulic master breaker provides control over all outlets and can serve as an on/off switch for systems. A front mounted Powercon loop outlet is provided for linking systems together. This outlet is configured post breaker. A front mounted courtesy duplex is provided with a dedicated 5-amp breaker. The rear of the unit features 3 duplex outlets for a total of 6 outlets in a close proximity configuration. A spaced Edison outlet is provided for larger “wall wart” style plugs that render plugs in a duplex configuration un-usable. An additional rear Powercon® outlet with a blue status light is provided for linking additional items. The D1 can be rack mounted from the front or rear via the removable ears. The unit features rounded front and rear face pieces for a streamlined look when using the unit without its ears attached in a stage box configuration.
2RU USB/Edison/Powercon® Power Distribution Unit
This power box is designed to provide 8 courtesy Edison and USB outlets to a work surface or rack. The power box also includes 2 Powercon® output jacks for expansion. Common uses for this box include tech work stations where a variety of power outlets are required. The box is constructed out of 1/8” brushed aluminum that is anodized black. Power is supplied via a 3’ HD SOOW cable terminated with a Hubbell Edison plug.
3000w Rack Mounted US To EU Power Converter Box
This power conversion box is designed to be a main power input for touring systems that travel between the US and EU. The box is split into two independent sides:
