Presonus

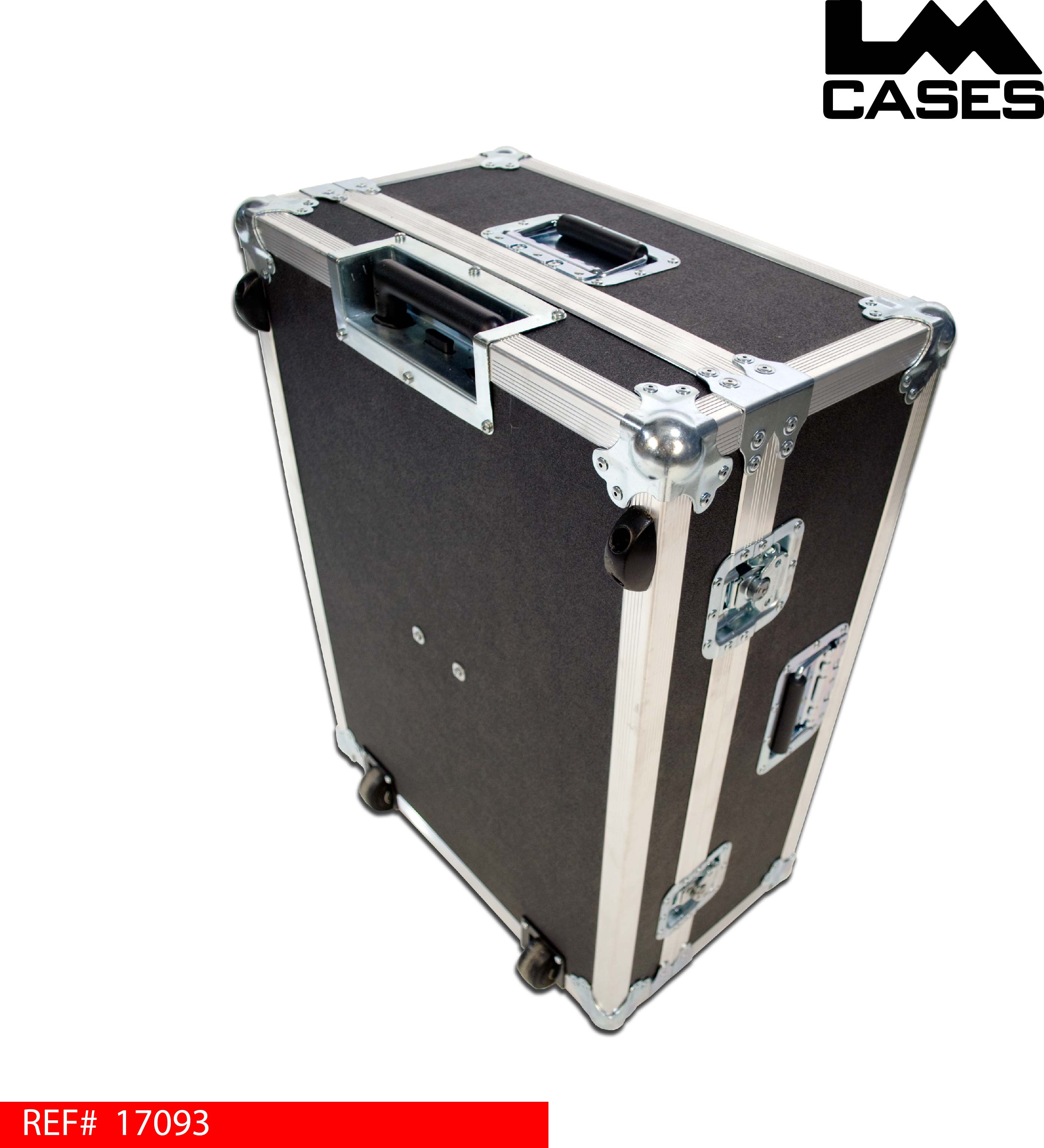

Presonus 16.4.2 StudioLive Case w/Tilt N’ Travel Option

This design is based off our standard ATA case for the Presonus StudioLive, and adds our Tilt N' Travel option. The Tilt N' Travel option is comprised of a multi stage telescoping aluminum handle and inboard dolly casters allowing the case to be rolled like a piece of luggage. Our Tilt N' Travel design is very durable and designed to be on the road. All wearable parts such as the handle and wheels are designed to be replaced in the field. We custom fabricated mounting plates to use behind the wheels allowing the wheels to be attached via a common 10/32" rack screw. The telescoping handle also follows this protocol, both parts are replaceable in the field using common items unlike many other designs that feature riveted parts that can only be replaced by the manufacturer if the end user does not have access to a riveter.

Presonus 16.4.2. Road Case With Doghouse

This case combines the best pro features of larger console cases and integrates them into a smaller package. The case features a 1" foam lined interior with foam blocking around all critical components. The board is held in place by the custom doghouse that contours the back of the board along with a foam block that pins the board down at the arm rest. Pinning the console by holding the front and rear allows a space between the knobs and faders and the top foam of the case.
