Mixing Consoles
Presonus StudioLive 16.4.2 w/Integrated iPad Doghouse
This case is designed to hold the Presonus StudioLive 16.4.2. The case features a custom doghouse that cradles the console from rear and sides. The side arms help the console remain stable in user position, each arm features custom foam piece to prevent wearing the console paint during its life on the road. The arms are cut to match the side vents on the console to provide adequate ventaliation. The doghouse is built out of 3/4″ birch and is black texture coated.
Presonus Studiolive 24 With iPad Integrated Doghouse
This case is designed to hold the Presonus StudioLive 24. The case features a custom doghouse that cradles the console from rear and sides. The side arms help the console remain stable in user position, each arm features custom foam pieces (see picture below) to prevent wearing the console paint during its life on the road. The arms are cut to match the side vents on the console to provide adequate ventaliation. The doghouse is built out of 3/4″ birch and is black texture coated.
Soundcraft EPM8 Mixer Case
This case was designed for the Audio Visual Professional Group. The case is from our XL Series (Click Here For Info). XL Series cases are designed for light weight portable applications, they work especially well in the rental markets.
Presonus 16.0.2 Case
This case is designed for the Presonus Studiolive 16.0.2 mixer. The case is built out of 1/4" plywood to keep it lightweight and manageable. The case interior features a 1" foam lined interior with strategic foam blocking to keep the mixer in place during transportation. There is a foam slot under the mixer for cable storage.
Presonus 24.4.2 Case With Doghouse
This case was designed for a Presonus Studiolive 24. The case features a 1" foam lined interior and a custom 3/4" Birch doghouse that contours the back of the board. The exterior case is made out of 1/4" plywood and features 5 recessed handles.
Soundcraft Vi1 Case
This case was designed for KM Productions NY. The case features a removable front and top lid, allowing easy access to the front of the console during a show. The bottom tray features a 2 rack space section for a drawer and or keyboard shelf. The interior case also features a custom 3/4" Birch doghouse that contours the rear profile of the console. The doghouse features a double hinged top which allows the top cover to fold completely back for easy access. This doghouse also has a hinged back panel allowing the entire back and top of the doghouse to fold open.
Presonus Studio Live 24.4.2 Case
This case is designed for the Presonus StudioLive 24.4.2. The case interior is lined with 1" foam and is designed to allow easy access to the i/o section of the board as well as the front headphone jack. The exterior case is built out of 3/8" plywood and features a pull off latched lid and 3 handles.
Yamaha PM5D Road Case
This case was designed for Maryland Sound International. The case is built out of 1/2" plywood laminated with Armor-Tuf fiberglass. The case features a 10" Birch doghouse, 2 slide out keyboard shelves mounted on Accuride glides, 14 Handles, 4" x 2" HD casters, a recessed PAL label dish, recessed asset bar code dishes and a custom silkscreen of the MSI logo.

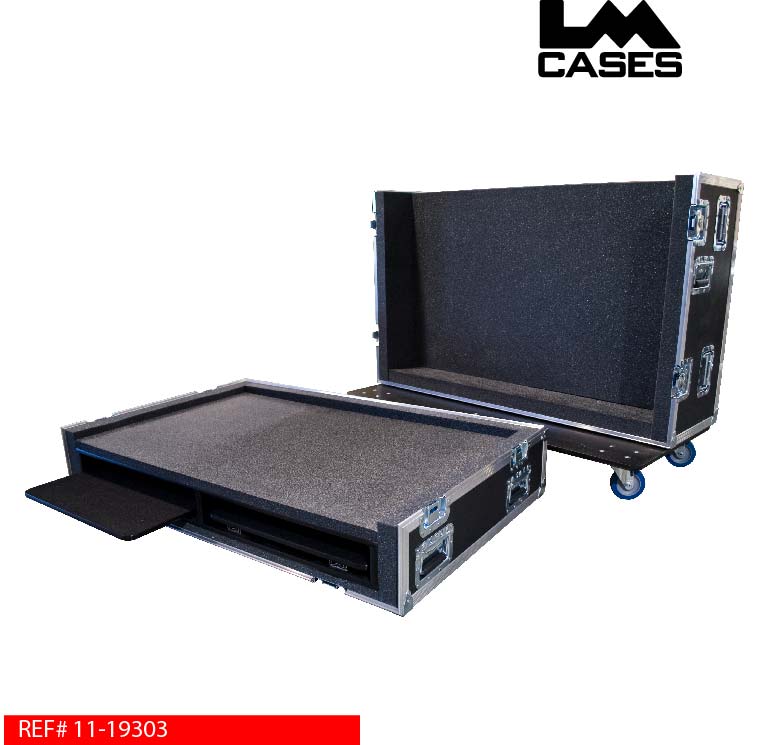

Avid Digidesign Venue Profile ATA Case
This case was designed for the Audio Visual Professional Group. The case is a 3 piece console case with a removable top and front lid. The removable top lid features 2 foam lined compartments for up to 19" widescreen monitors, there are also 2 slide out keyboard trays under the console.
Avid SC48 Flight Case
This case was built for Maryland Sound International. The case is designed to hold the SC48 in on a foam shock mounted structure that is built to make the doghouse and keyboard tray a single unit. The case also features an accessory compartment as well as a built in mouse pad to the right of the console.

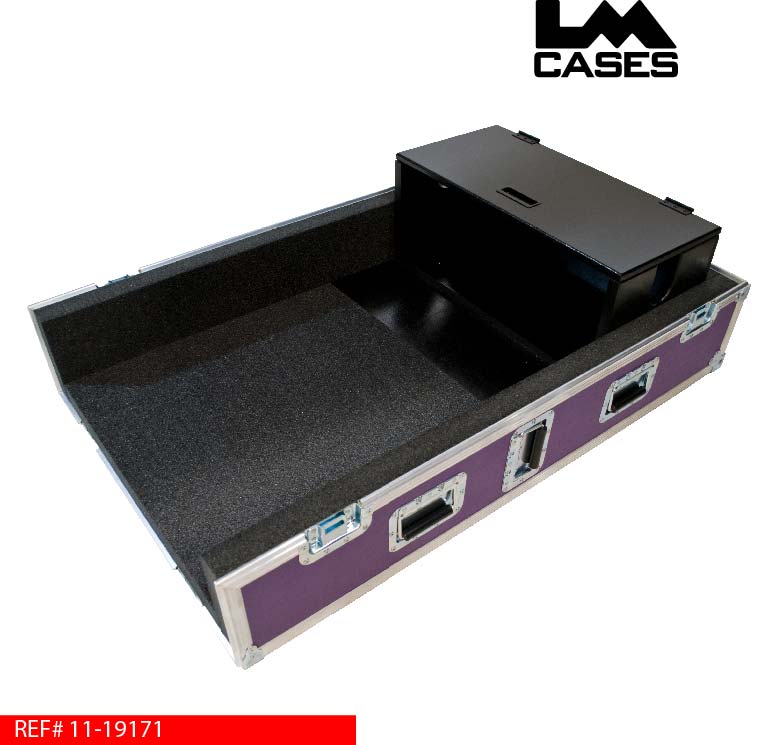

Midas XL3 EXT 16 Channel Extender Case
This case was built for Concert Productions. The case is built out of 1/2" plywood laminated with purple ABS, and features a 2 piece removable lid, 3/4" birch hi-gloss doghouse, and 4" casters.
Yamaha LS9-16 Flight Case
This case is designed for a Yamaha LS9-16 mixing console. The case is built out of 3/8" plywood and features a 2" foam lined interior with 3 1/2" casters.
Allen & Heath iLive T80 and iDR 32 ATA Cases
These cases were designed for Presentation Services (PSAV). The case set is designed to hold the Allen & Heath iLive T80 and the iDR32 remote stage box. The console case is built from 3/8" plywood and features a 2" foam lined interior, 3.5" casters, custom PSAV ID tag, and the 2 color PSAV silkscreen.
Yamaha LS9-32 Install Workstation
This case was designed as part of an installation project provided by North American Theatrix. The case is designed to blend in when it is installed at a theater, the case is built out of 3/4" birch and features LM's black textured coating.
Yamaha LS9-32 Mixer ATA Workstation
This case was designed to hold a Yamaha LS9-32 mixer. The case features a double wide shock-mounted 16RU rack section as well as a custom Birch doghouse that contours the back of the console.
