Mixing Consoles
Roland M300 ATA Case w/Doghouse
This case was designed to hold a Roland M300 compact digital mixer. The case features a 1" foam lined interior and a black texture coated 3/4" Birch doghouse. The exterior is built out of 3/8" plywood and features 3.5" Casters.
Soundcraft Vi6 Custom Flight Case
This case was built for Maryland Sound International, and is designed to hold a Soundcraft Vi6 Console. The interior of the case features a slide out keyboard tray, a 2RU rack drawer and storage for 2 LCD monitors.
LM Cases Custom 10 Space Shock Mounted Rack/Mixer Steve Harvey Morning Show
This case was built for the Steve Harvey Morning Show. The case is designed to hold a rack mounted mixer and rack mounted processing equipment. The mixer section has 11 rack spaces, and the equipment section has 10 spaces with rear rack rail. The entire rack structure is mounted in a 2" foam surround to provide shock absorption on the road. The outer and inner structures are built out of 3/8" plywood. The case features 3.5" casters mounted on a 3/4" birch caster pad.
Presonus StudioLive 24.4.2 Mixer Case With Casters
This case was designed and built for Avex Inc. The case features a 2" foam lined interior, and custom foam blocking to keep the mixer in place during transportation. The case is built out of 3/8" plywood laminated with red ABS plastic. The exterior of the case features a custom silkscreen of the customer's logo, 7 handles, and 3.5" Colson casters.
Custom Yamaha LS9-32 Case With Doghouse
This case was built for RCI Sound Systems. The case is designed with a removable nose piece to allow easier access to the front of the console. The case features a 2" foam lined interior, a gloss black birch doghouse and 3.5" Colson casters.
Soundcraft Ghost LE Flight Case
This case was built for World Wrestling Entertainment as part of their mobile production department. The case features a custom 3/4" birch doghouse that allows the doghouse lid to meet with the forward set meter bridge.

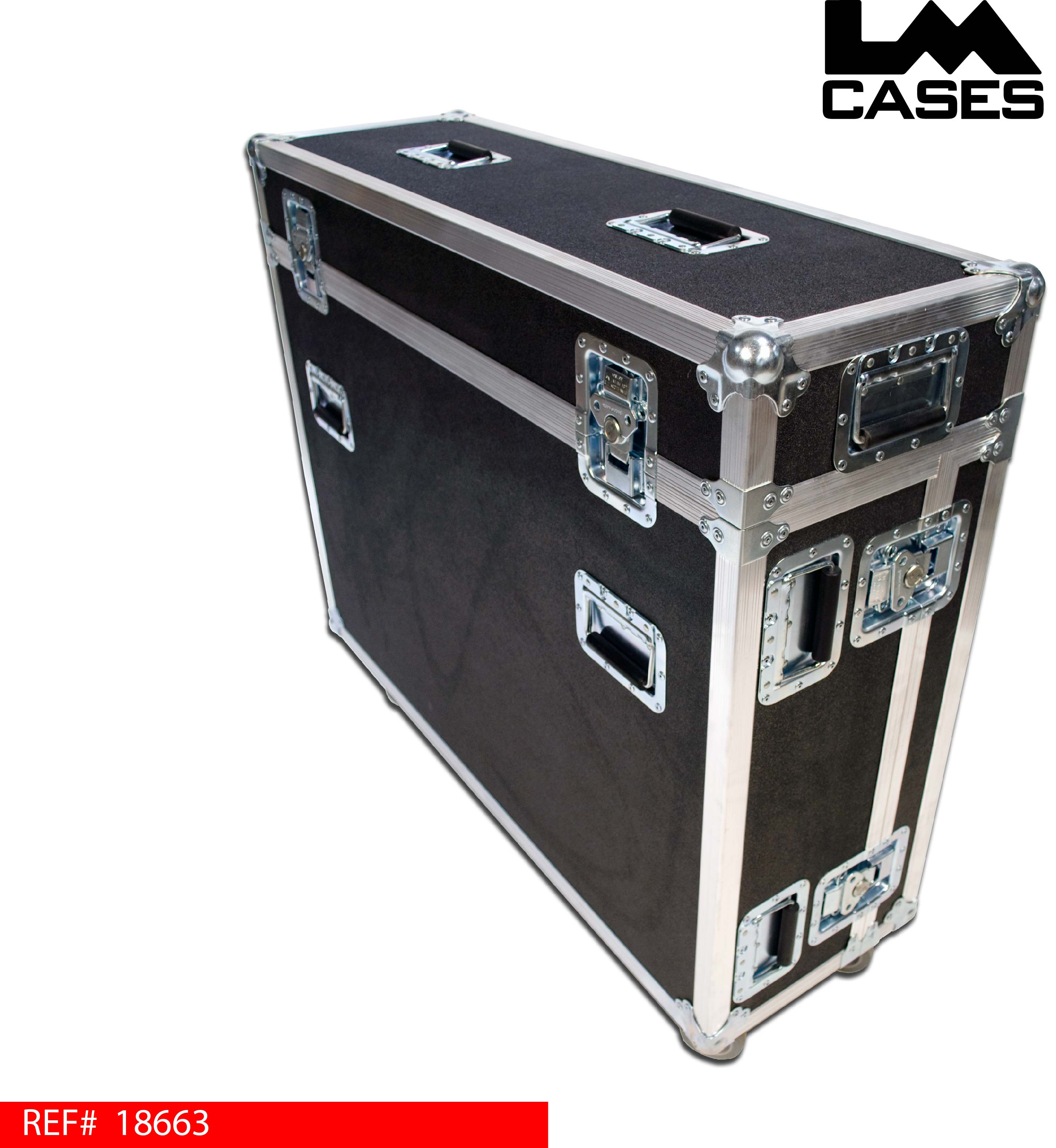

Avid SC48 Compact Road Case
This case was built for Clair Global Systems. The case is designed to be used in an installed application where the console is moved from building to building on a campus. The case is a very compact design allowing for easier moving and storage in campus.
Yamaha M7CL-48 Flight Case
This case was built for Campus Crusade For Christ. The case features a 2 piece removable lid to allow access to the console's front headphone jack. The interior of the case features custom angled foam blocks to support the console from the side, this allows the angled screen to be untouched by the case. Because the top lid of the case only touches the console on the sides, damage from removing the lid is minimized.
Presonus StudioLive 24.4.2 Case w/Tilt N’ Travel Option
This case is designed for the Presonus Studiolive 24.4.2 digital mixer. The case is built out of 1/4" plywood and features recessed hardware in addition to a telescoping aluminum handle and 3" inboard dolly casters. The case also features an accessory compartment behind the mixer for storage of peripherals such as cables, littlelites etc..
Custom Mixer Workstation
This case was designed for Spring Hill Camps. The case features a 18RU equipment section with rear rail, as well as a 11 RU mixer section to accommodate a rack mounted mixer. The case also features a foam lined compartment for a projector, speaker stand storage in the rear lid, and a black formica laminated production work surface.

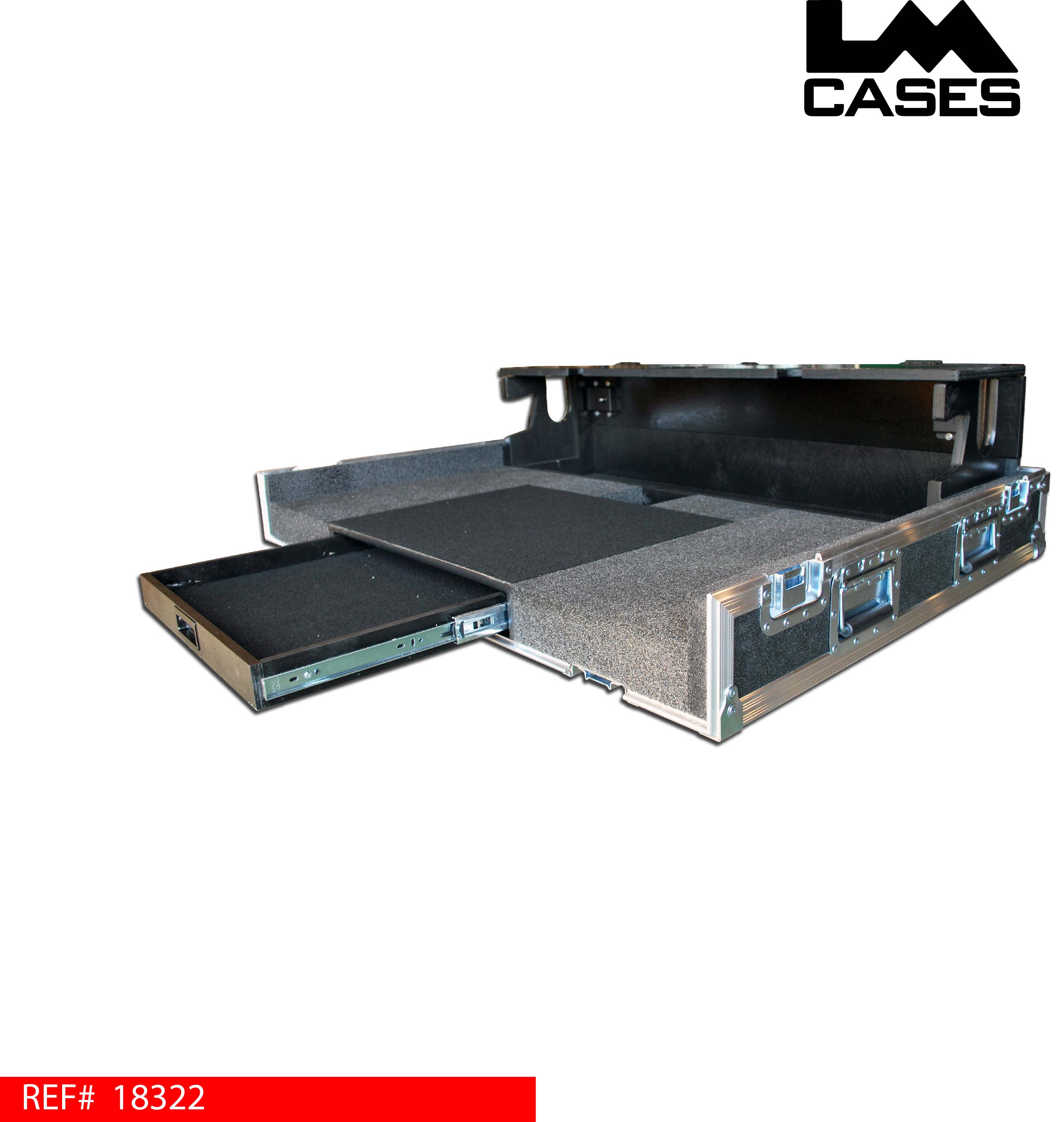

Custom Avid Venue Profile Case
This case was built for Michigan based sound company Pro Audio Inc. The case features a removable nose piece allowing access to the front of the console. The removable nose design also allowed us to integrate a slide out shelf under the console for a keyboard. The design also incorporates storage areas for 2 flat panel monitors in the lid of the case. Each compartment is lined with Class A foam to prevent scratches to the screens of the displays.
Presonus 16.4.2 StudioLive Case w/Tilt N’ Travel Option
This design is based off our standard ATA case for the Presonus StudioLive, and adds our Tilt N' Travel option. The Tilt N' Travel option is comprised of a multi stage telescoping aluminum handle and inboard dolly casters allowing the case to be rolled like a piece of luggage. Our Tilt N' Travel design is very durable and designed to be on the road. All wearable parts such as the handle and wheels are designed to be replaced in the field. We custom fabricated mounting plates to use behind the wheels allowing the wheels to be attached via a common 10/32" rack screw. The telescoping handle also follows this protocol, both parts are replaceable in the field using common items unlike many other designs that feature riveted parts that can only be replaced by the manufacturer if the end user does not have access to a riveter.
Presonus 16.4.2. Road Case With Doghouse
This case combines the best pro features of larger console cases and integrates them into a smaller package. The case features a 1" foam lined interior with foam blocking around all critical components. The board is held in place by the custom doghouse that contours the back of the board along with a foam block that pins the board down at the arm rest. Pinning the console by holding the front and rear allows a space between the knobs and faders and the top foam of the case.
