Video Switchers & Flypacks
Pelican 1600 1RU Rack Flypack
This case was designed for Starlight Visuals to hold a custom time code sync clock. The design features a 1RU rack with a removable bottom panel, and a signal and power panel built by the LM Cases Custom Integration department. The rack is held in a Pelican 1600 case with a custom CNC cut foam insert.
Voyage Productions Media Server Kit
This media server kit was designed for Voyage Productions, the kit is based around a cylindrical Mac Pro tower housed in a 6 space rack. The Mac Pro connections are addressed via a custom IO panel built by the LM Cases Custom Integration Department. The rack is transported in a Pelican Storm iM2975 case.
Portable DIT Monitor Rack Case
This case was built for the Farm League to provide a monitor and controller storage front end to their portable digital image transfer work station. The rack holds a Black Magic 17" Smartview HD monitor on a tilting rack frame allowing multiple view angles. Below the 17" monitor is a Black Magic Smartview Duo dual rack mount preview monitor. A slide out drawer was used to hold a Tangent Element controller. The controller is held in place via custom CNC cut plastic brackets that contour the units shape and secure it allowing the the rack to be tipped and rolled while the controller remains securely mounted. A custom power distribution box built by the LM Cases Custom Integration department is included for split UPS power between this case and its computer case. The power distribution box takes incoming power, routes it to the UPS (not pictured) via Powercon then distributed the UPS secure power to the computer rack. The UPS includes courtesy outlets and breakers. The rack is built out of 1/2" Baltic Birch finished with black texture coating, the rack also features black recessed handles.

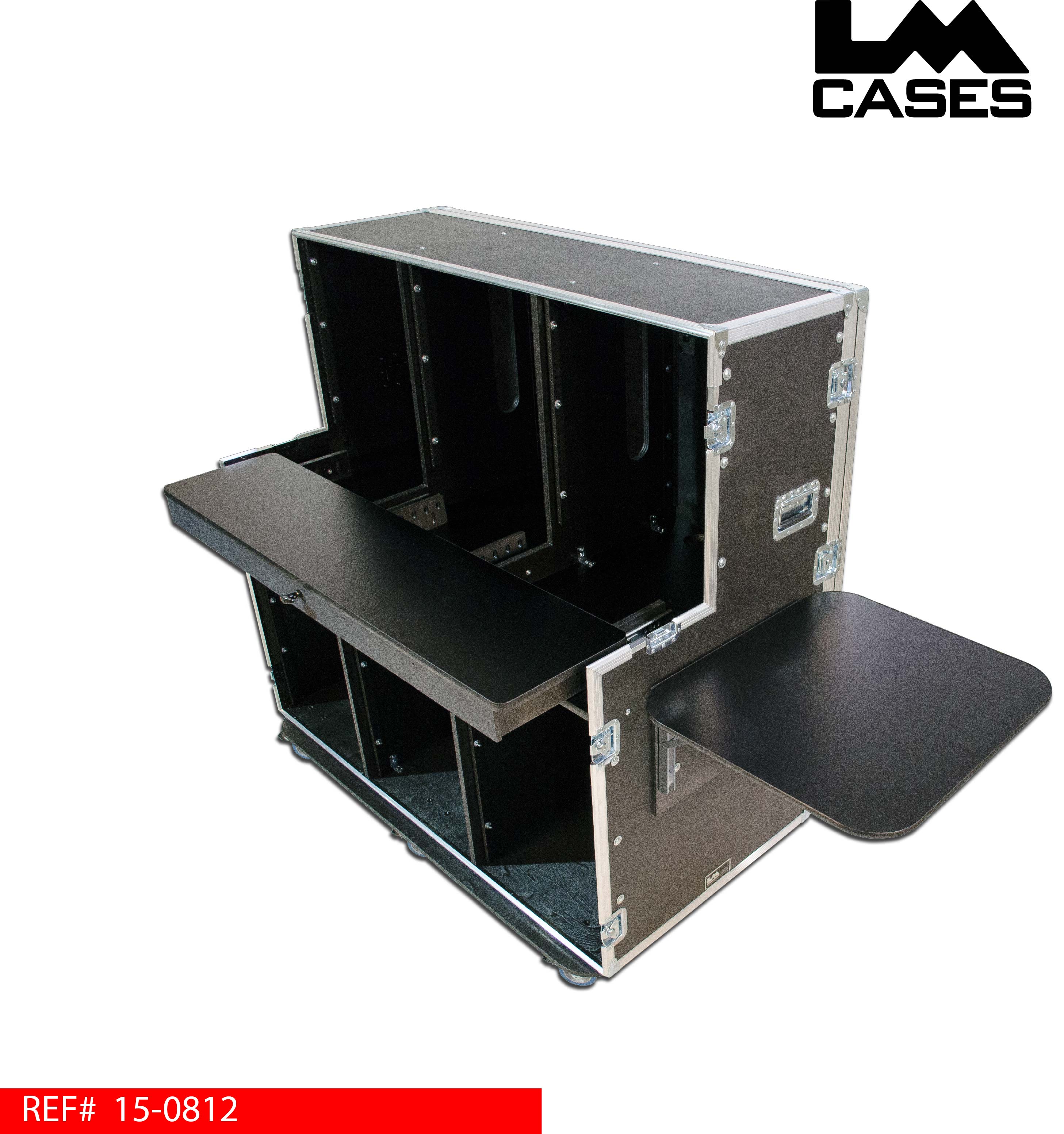

Triple Wide Video Flypack Workstation
This case was designed for Ashland University to hold video production equipment for on campus use. The case features 3 - 12RU monitor racks, 3 - 16RU equipment racks and dual work surfaces for controllers and laptops.
Portable Grass Valley Karrera Video Production Work Station
This case was built for World Stage to hold their Grass Valley Karrera production switcher. The Karrera is mounted to an extendable shelf that is designed to allow users to sit or stand behind the unit during operation. The case features 3 - 12RU rack bays for future expansion as well as storage for the control monitor and mount arm.

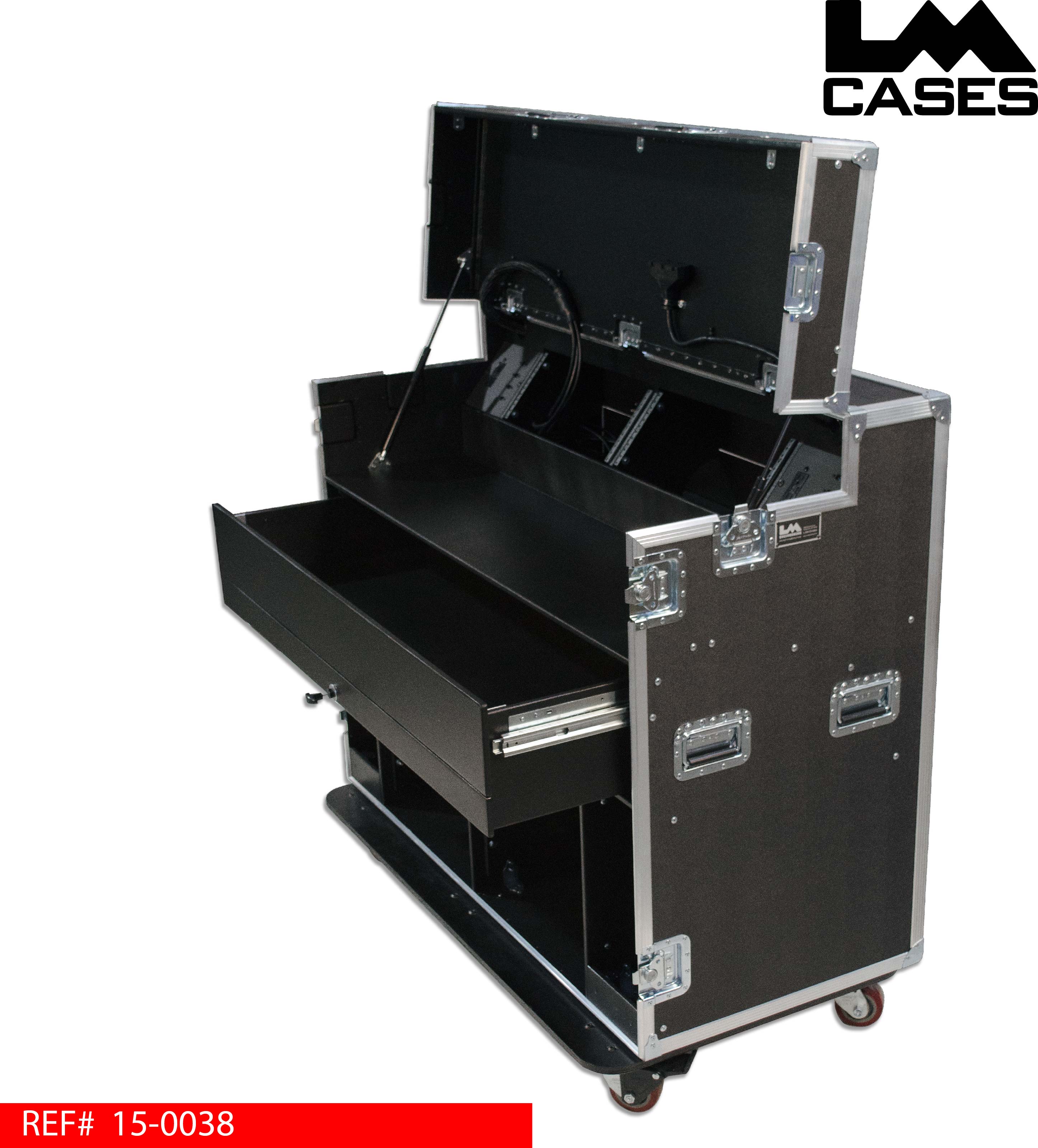

Portable Large Format DIT Workstation
The Portable Large Format DIT Workstation was designed for Angel Valley Media. The LM Cases Custom Integration Dept pre-wired to accept a variety of professional monitors by including Displayport, HDMI and AC Power cables pre installed into the case lid. Power and signal are kept separate; each cable bundle is wrapped in Techflex and finished with heat shrink tubing. All cables are labeled at both ends. The monitor lid is supported by gas springs, which aid in opening the lid and ensuring that it stays open during use. Below the monitors is a dual 4RU rack section, which is primarily designed for preview monitors and any piece of gear less than 6" deep. The rack section is mounted at a 50-degree angle allowing producers to stand behind operators and still have an undistorted view of the rack-mounted components. On each side of the rack section is a bank of 4 USB 3.0 ports with 10' extensions allowing ports from rack-mounted components to be conveniently addressed at the work surface. Also included are 2 duplex AC power outlets with integrated USB charging ports that provide 4 total courtesy USB & power outlets. The dual 4RU rack section features a trap door with 2 recessed vent dishes for quick access to the back of the rack components and USB/power banks. Below the rack section is a 51.75" x 20" pull out work surface, that is made out of 3/4" Baltic Birch and is finished in black texture coating. The work surface features position locks allowing it to be locked into several fixed positions while retracted, this feature is operated by a low profile T-pull handle. Below the retractable work surface are dual 9RU rack sections that include rear rack rail and a rackable depth of 21". The back of rack section is accessed by a removable trap door that features 2 recessed vent dishes and 2 recessed cable hatches. The cable hatches allow cables to be passed through the trap door while it is still closed. The front removable lid features 2 sets of table legs allowing it to be used a massive production table measuring 56.5" x 46". The front lid has 4 slim recessed handles mounted in the sides to aid in removal and moving to its storage location. The exterior case is built of 1/2" plywood and features 6 Colson 4" x 2" casters (3 locking) and 4 deep recessed handles.

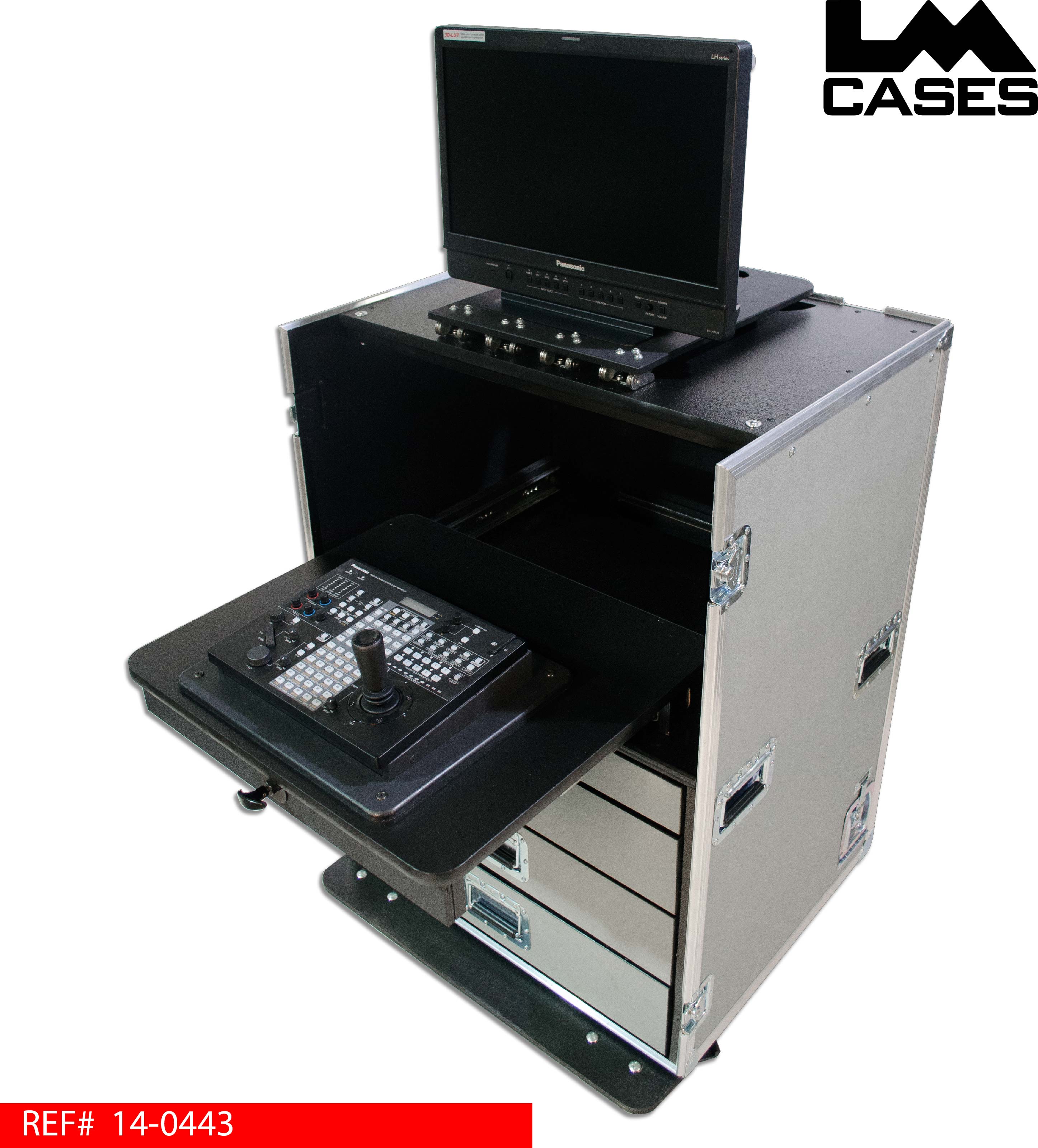

Camera Controller Flypack Workstation
This case was designed for Novartis Pharmaceuticals and integrated by the Whitlock Group as part of a 3 case portable system that is designed to travel between buildings on their campus. This case is designed to compliment the main A/V control unit (more info on that case can be found HERE) by offering a independent camera control station. This case is designed to have the same depth and height as the main workstation allowing the two cases to have a similar esthetic and flow when working next to each other.

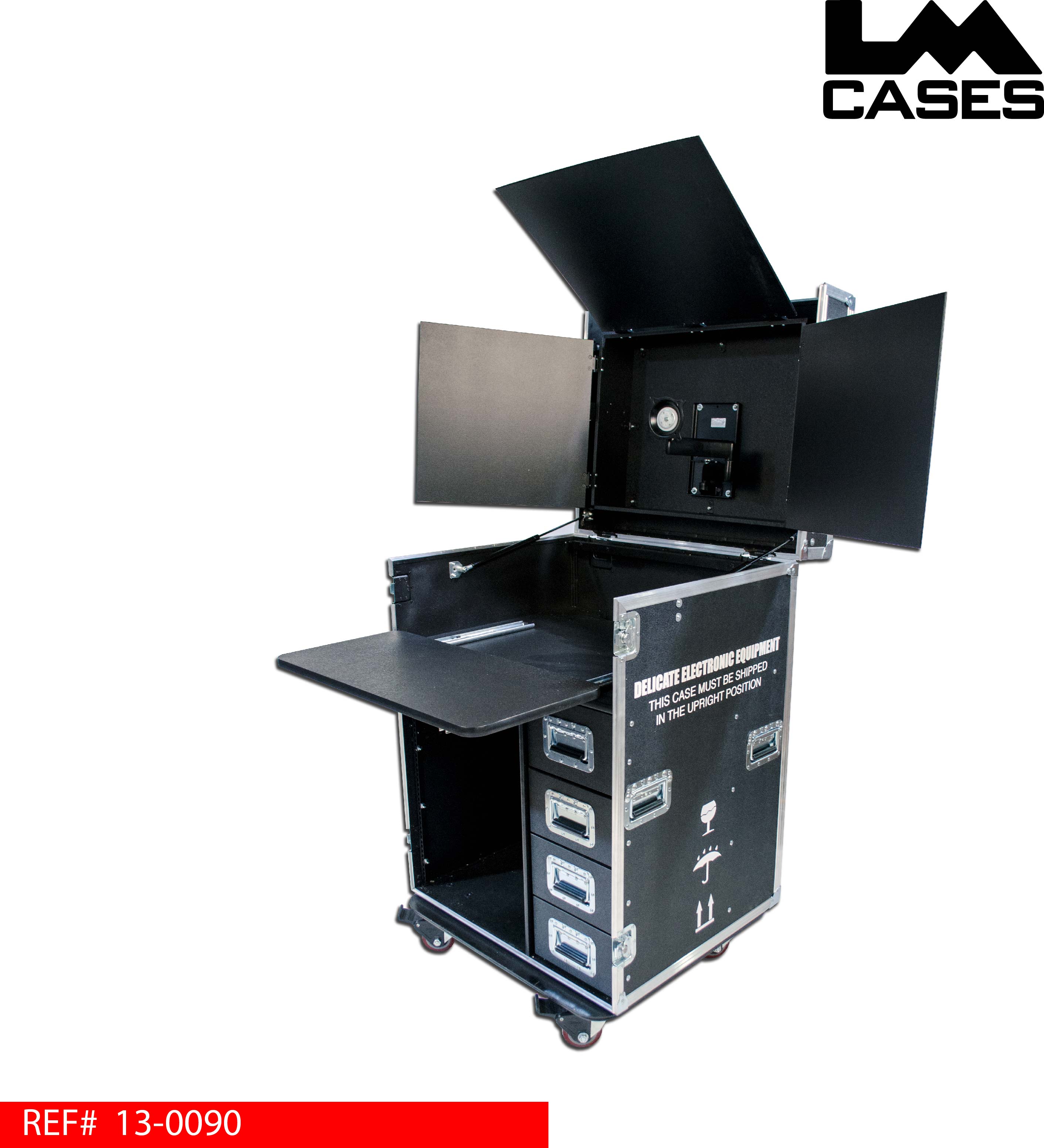

Portable Tricaster TV Production Flypack
This case was built for Creative Live as the video portion of a portable audio & video mobile rig, CLICK HERE to see the matcing audio case.The case features a slide out shelf for a NewTek Tricaster TCXD855 control surface with a video monitor mounted in the lid above the console. The lid features 3 large barn doors to keep the glare down as well as prevent light pollution from the monitor on dark sets. Below the mixer section is a 16 space rack section and 4 drawers.

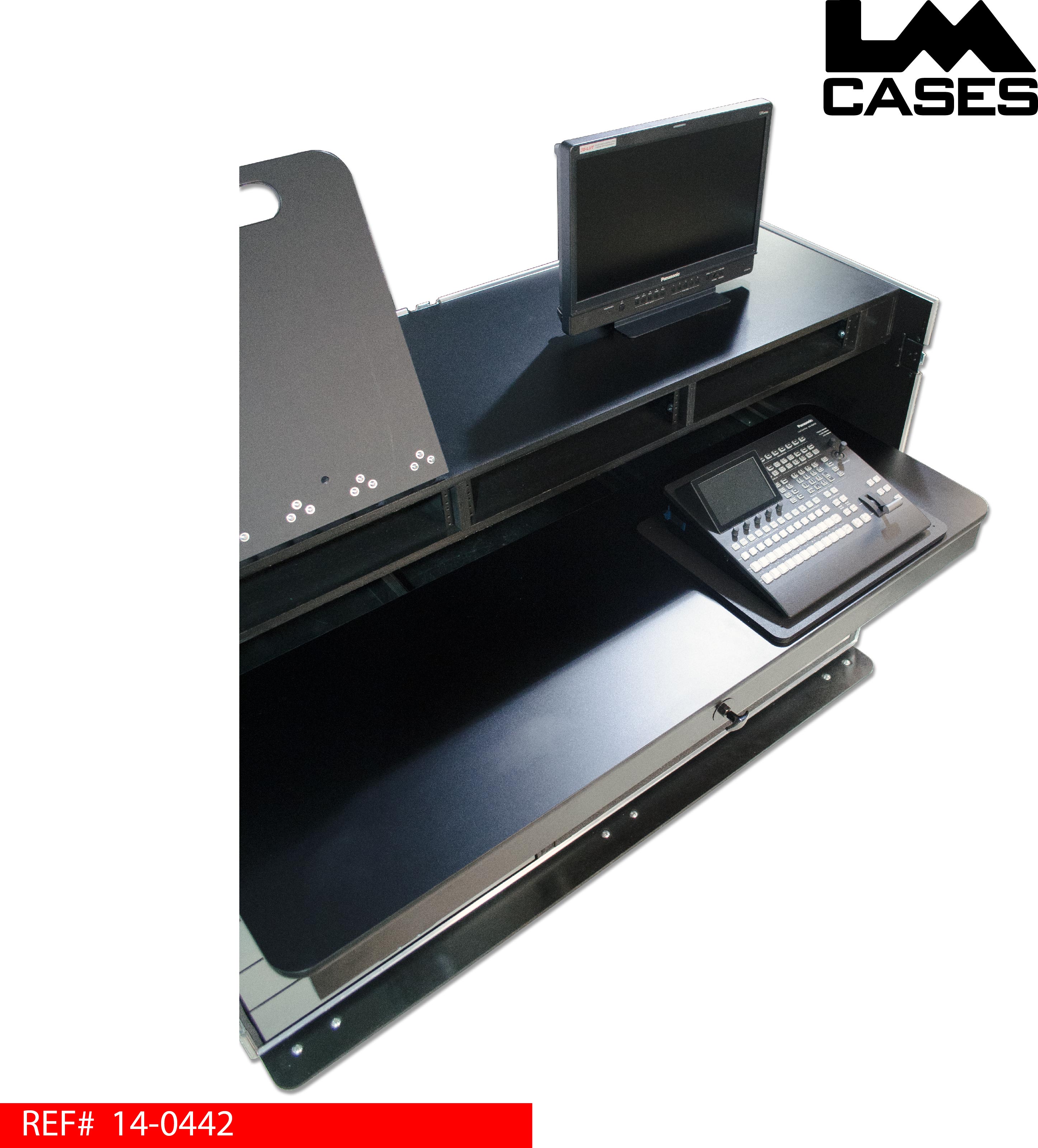

Panasonic AV-HS410 Video Switcher Case & Rack Mount Bracket
This case was designed for Panavid as a all in one solution to transport their Panasonic AV-HS410 switcher and a monitor. The LM Cases Custom Integration department created a custom bracket that slips around the switcher that allows it to be rack mounted. Also included are 4 shock absorbing bolts in a VESA pattern allowing a Sony PVMA-170 monitor to be mounted above the switcher in the lid.

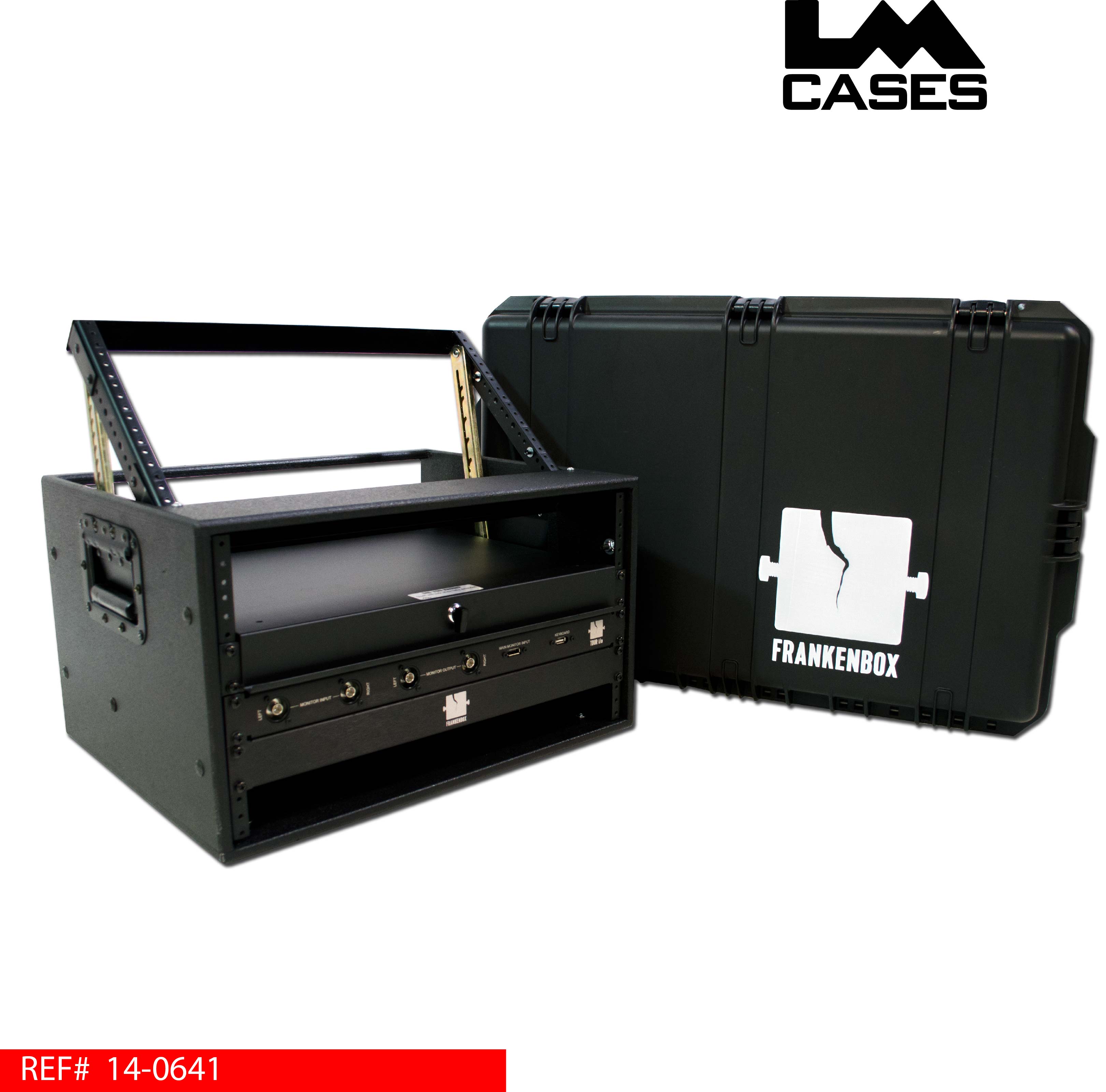

Portable Black Magic Smartview Monitor Rack
This rack was designed to hold a Black Magic SmartView HD rack mounted monitor and support equipment as the control element of a touring media server package. The rack is 6RU tall with a tiltable rack section that holds the monitor. The rack unit is stored in a Pelican Storm iM2975 waterproof case with a custom silkscreen of our customers logo.
World Wrestling Network Portable View Station
This project was designed for the World Wrestling Network as a portable monitoring station for Vince McMahon. The system was designed, built, and installed by the LM Cases Custom Integration department. The system consists of the inner portable view station which designed to blend into corporate environments and its outer case that protects it on the road.
Barco Folsom Image Pro4 Case
This case was designed for a Folsom Image Pro in a single rack space removable shell. The rack shell is built from 1/2" Baltic Birch finished with black texture coating.

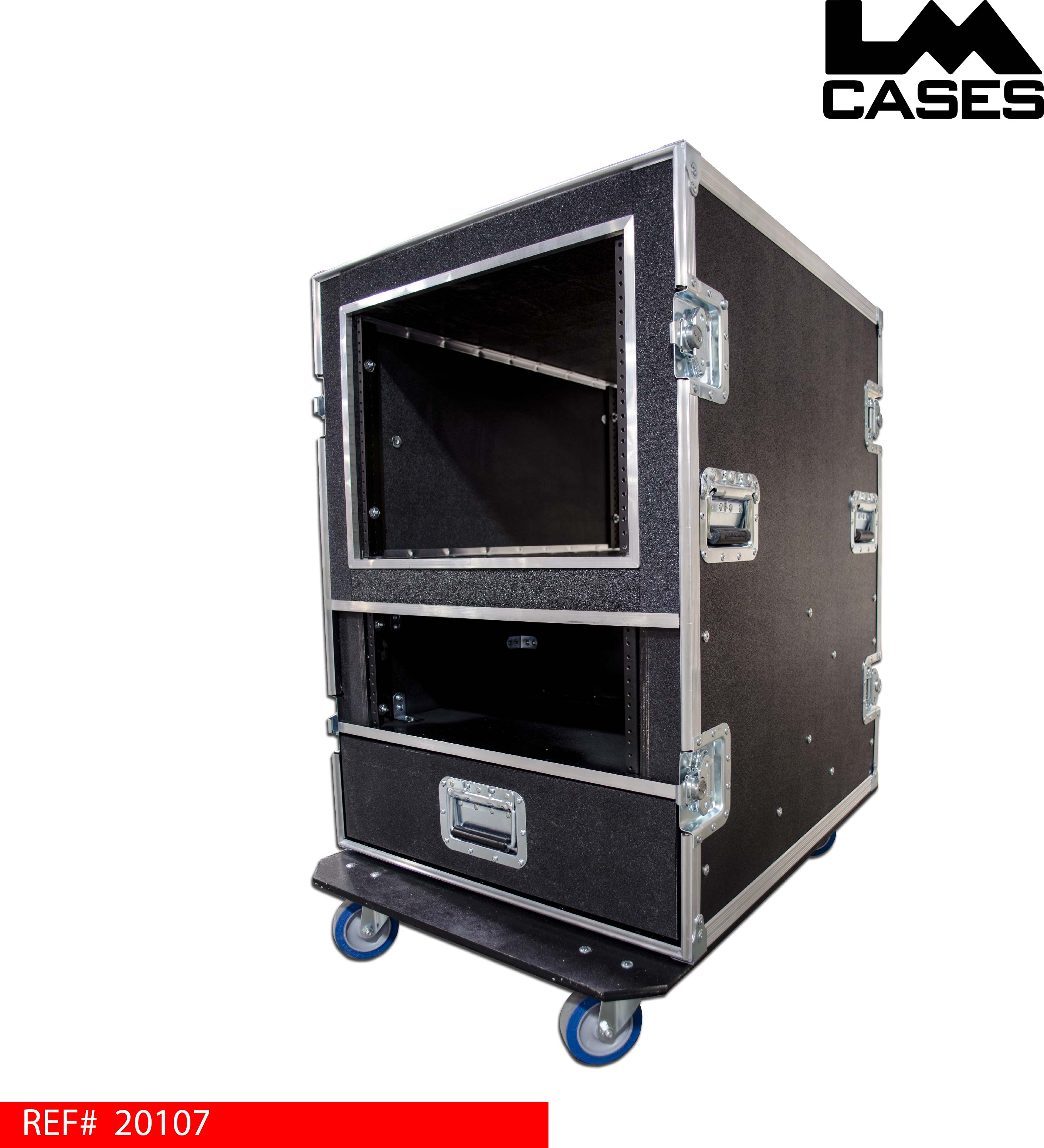

Christie Vista URS Router Case
This case was designed to hold 2 Christie Vista URS Video Routers in an 8 space shock mount rack. Below the rack on the rear of the case is a 4 space rack section used for custom i/o rack panels. The case features 3 drawers, 2 in the front; and one in the back under the rack mount patch section.

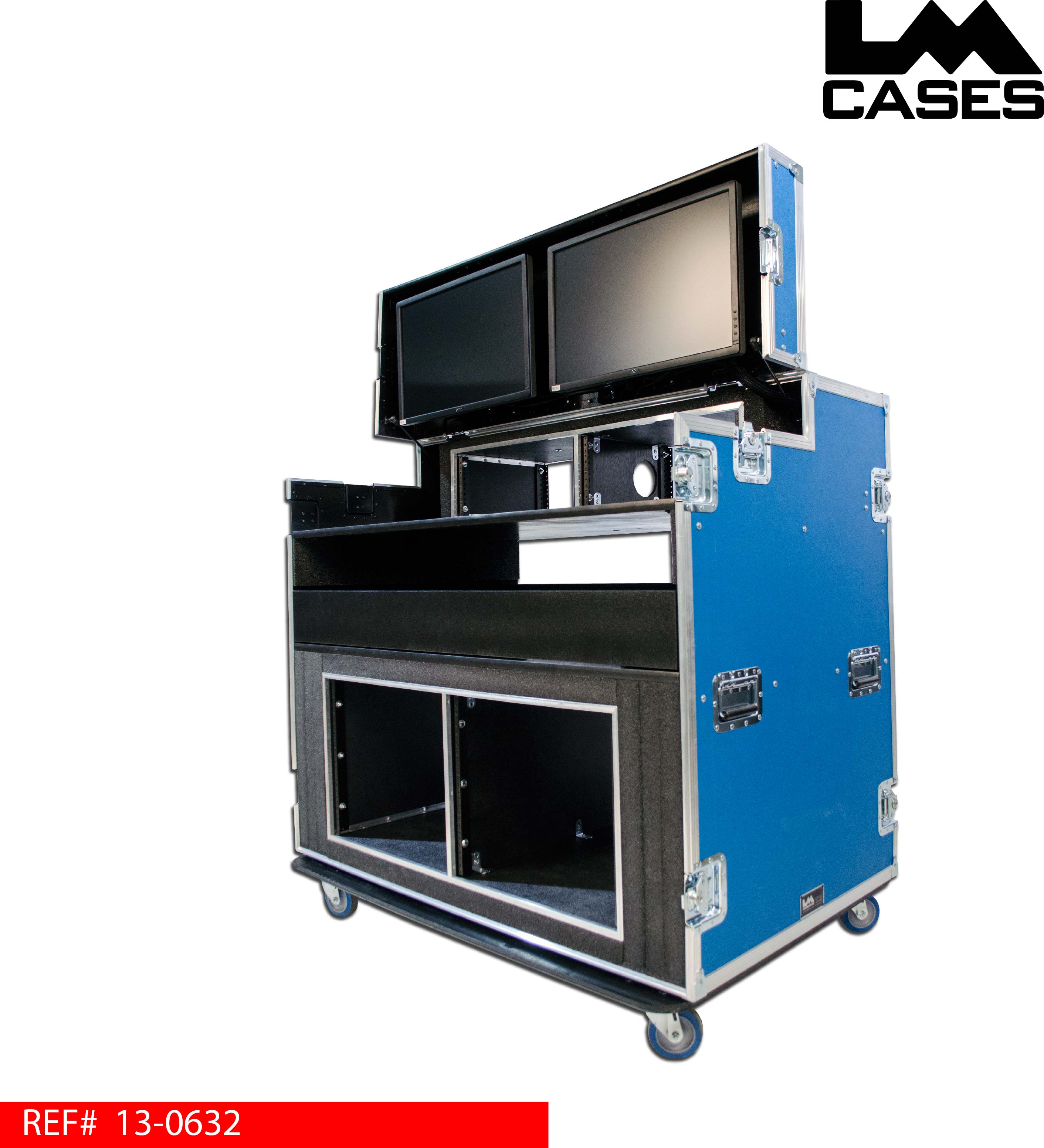

Portable Video Fly-Pack Case
This case was designed to be a portable pre-wired video fly pack. The case features dual 24" Dell Ultrasharp monitors, dual 4 space shock mounted racks, a stationary work surface, a retractable switcher work surface, and dual 9 space shock mounted racks below the switcher.

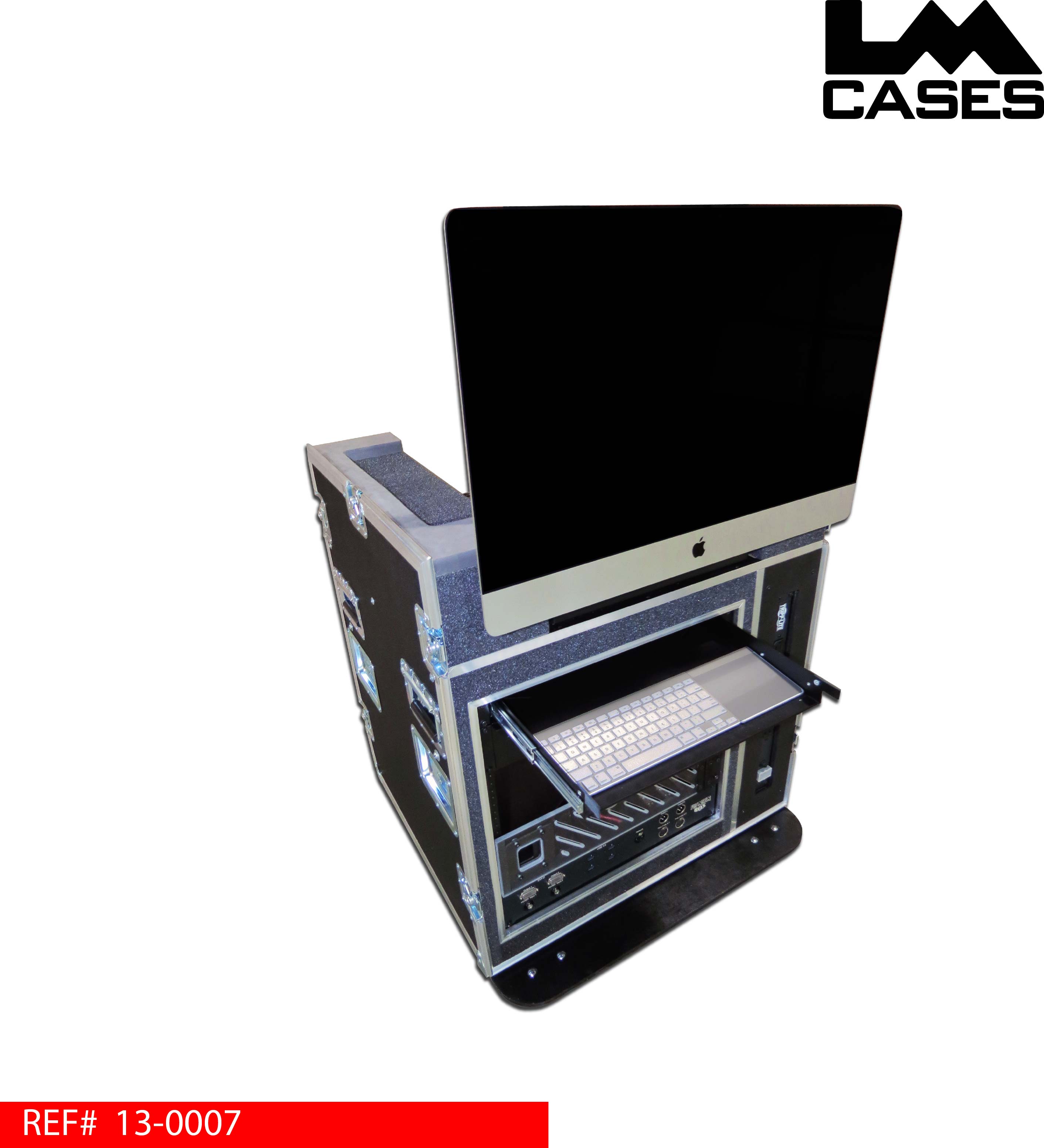

iMac Production Workstation
This case was built for Starlight Visual. The case is designed to be a self contained mobile lighting production solution that is plug and play. The LM Cases Custom Integration (CI) department installed and provided many of the electronic components including the 2RU i/o panel, keyboard, mouse, rack drawer, rack shelf, powerstrips and electrical connections prior to shipment to Starlight Visual for the final assembly.
