Video Switchers & Flypacks
Roland V800 Video Flypack Workstation w/Articulating Monitor Arm
This case was built for Headline Productions as a central video processing system for corporate events. The system is based around a Roland V800 video switcher. The flypack features Dell H2418T touch monitor mounted on a custom-built articulating monitor arm. A shock mounted 16U rack section is included for equipment.
Compact Carry On Resolume Media Server Kit
This portable playback system is designed around our 2 Space Airline Carry On Rack. The system is designed to be the interface portion of a Resolume media server system for a hip-hop artist. The compact format allows the tour’s playback tech to carry the system on any commercial or private airplane.
Black Magic ATEM 1 Switcher Case
This case is designed to hold a Black Magic ATEM 1 switcher. The switcher is held in a custom CNC cut PE foam insert. The foam insert contours the shape of the switcher for a perfect fit. An accessory compartment is located under the switcher for additional storage. The insert is mounted in a waterproof Pelican 1600 case.
Video FlyPack Case w/Camera Control & Custom LED Light Panels
This case was built for Upstage Video as a portable video flypack work station for camera control. The top lid holds 2 Black Magic 4k monitors. The lid is supported by gas springs that assist in the opening and closing. The springs keep the lid open during use.
Video Streaming Fly Pack w/Articulating Monitor Arm & 16RU Rack
This case is designed with mobile audio and video productions in mind. The 3 axis monitor mounting system allows the display to be angled in a sitting or standing position, extended, and moved to the left or right of center. A position control board handles the monitors angle. Friction hinges are used allowing the screen to be raised to a vertical position or laid flat. These friction hinges allow the monitor to behave in the same manner as a laptop screen: the screen can be positioned in any position along a 90 degree plane without the need for ratcheting mechanisms or support rods. A Chief K2W120B mount is installed to allows the display to be positioned left or right of center, in addition to 15” of extension towards the user.
Microsoft Surface Studio 2 Small Format Fly Pack Case
This fly pack is designed for several applications using the Microsoft Surface Studio 2 as the system centerpiece. Applications include DIT workstations, media servers, and live sound. The case holds the Surface Studio by its base allowing it to be used laying down, and fully extended without removing it from the case. The case contours the unique shape of the monitor and removes any stress on the internal hinging system during shipping. Power is supplied to the case via a LM Tour Systems DSK-T True1 power inlet box and provided 25’ 14awg SJOOW True1 to Edison power cable. A Furman Pluglock is mounted on a soft close glide to provide power for all internal components. The Pluglock is wired to the DSK-T via a locking True1 connector. Power cables are secured in the Pluglock via locking hoops that hold plugs in during transport.
Triple Wide Video Rack w/Custom LED Logo Light Panels
This case was built for Upstage Video. The case features 3 – 20RU tall, 24” deep rack bays. Custom LED logo light panels were built to provide a more impactful presence verses a standard silkscreen.

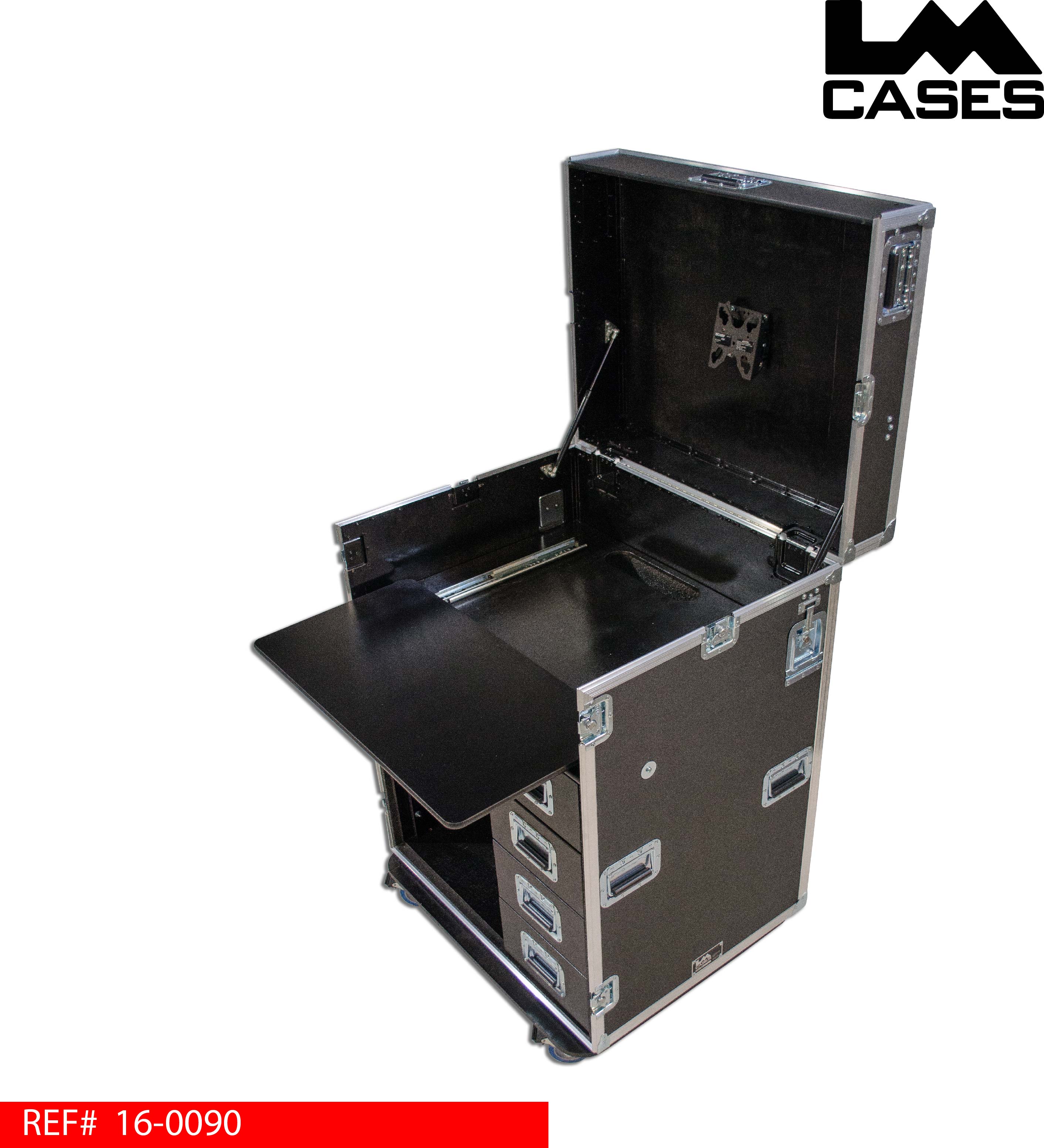

Custom Portable TV Panel Work Station
This case was built for MIT as a portable work station for a Tricaster system. The case lid features a centered tilting monitor mount allowing the user to supply their own monitor. The main work surface features a slide out shelf for the Tricaster panel. A 17RU rack section is mounted below for equipment storage. Four storage drawers are included next to the rack section.
Black Magic SmartView Monitor Fly Pack Storm Case
This case was built for Paramount Event Group as a custom video fly pack. The case features a 6RU tilting rack frame for a Black Magic Smartview Monitor. Below the monitor is a 3RU rack section for additional equipment storage. A custom foam insert is included to hold Datavideo DAC 70’s and Decimator MD-HX converters.
Black Magic ATEM / iMac Production Flypack
This case was built for Plum Precision as a portable video fly pack production case. The system is based around two 21” iMac computers and a Black Magic ATEM production studio. The case features a large sliding work surface allowing users to sit comfortably during shows. The work surface is ergonomically mounted to provide a standard working desk height. Built out of ¾” Baltic Birch plywood finished with black texture coating, the work surface features a remote cable locking latch system that allows the surface to be extended and locked into 25 positions.
Ice Hockey Video Fly Pack Editing/Streaming System Case
This case was designed for the hockey team at the University of California at Santa Barbara. The case is designed to be a mobile production hub used by the team’s video staff for editing and streaming of games.
27” iMac Video Production Fly Pack
This case is designed to hold a 27” iMac mounted on a position control board. The board is mounted to position control hinged that allow the computer to tilt and be held in position similar to a laptop screen. The computer is interfaced to the mount board via an articulating Chief mount that allows the computer to telescope away from the mount board and be moved to the right or left of the case. The computer is mounted to the Chief mount via an included Apple VESA mount adapter. Below the computer is a shock mounted 12 space rack that includes front & rear pre-tapped 10/32” rack rail. The rack includes a 1RU slide out shelf for the computer’s keyboard. The case includes table legs mounted in one of the lids. The case exterior includes 8 deep recessed handles and rides on 4” Colson casters mounted to a full ¾” plywood caster board.

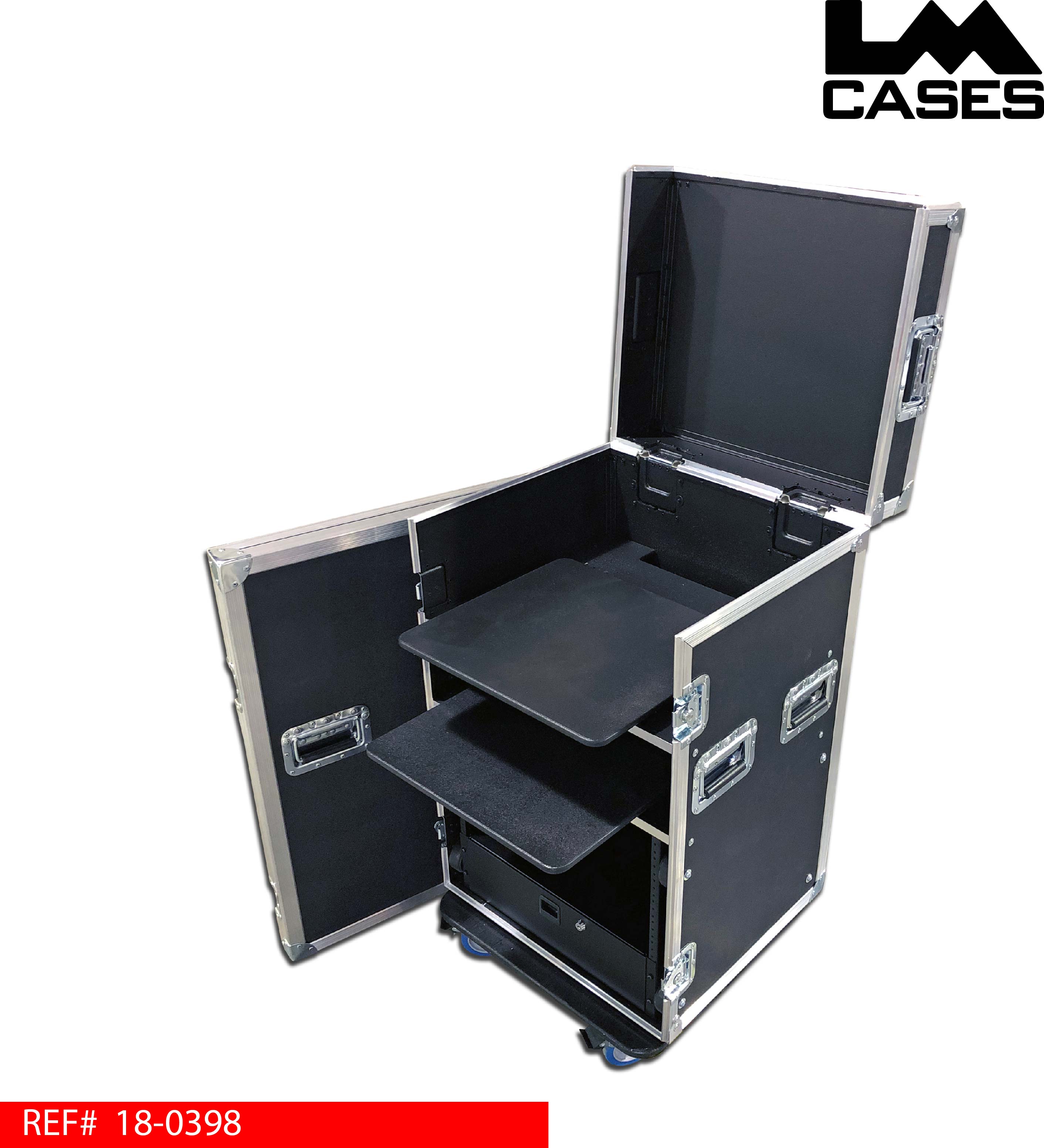

Compact Flypack Production Workstation
This case is designed to be a portable video fly pack workstation. The case includes a Chief FTR1U tilting monitor mount allowing a monitor to be mounted in the case lid. Also included are two slide out shelves to hold a laptop, audio mixer or a video switcher. Below the dual slide out shelf’s is a 9RU rack section. The rack rails are mounted to the case via rubber vibration isolation mounts. The rack section features rear rack rail and a trap door. The case exterior is built out of 3/8” plywood laminated with your choice of ABS colors. The case features deep recessed hardware and rides on 4” Colson casters mounted on a ¾” caster board that spans the entire bottom of the case.
University Of Maine Video Flypack
This video fly pack was designed for the University Of Maine. The LM Cases Custom Integration department handled the installation of the audio visual components and the construction of the custom rack panel. The case features a flip up lid supported by gas springs, a dual 5RU shock mounted rack, slide out work surface with integrated IO panel and a dual 10RU shock mounted rack section.

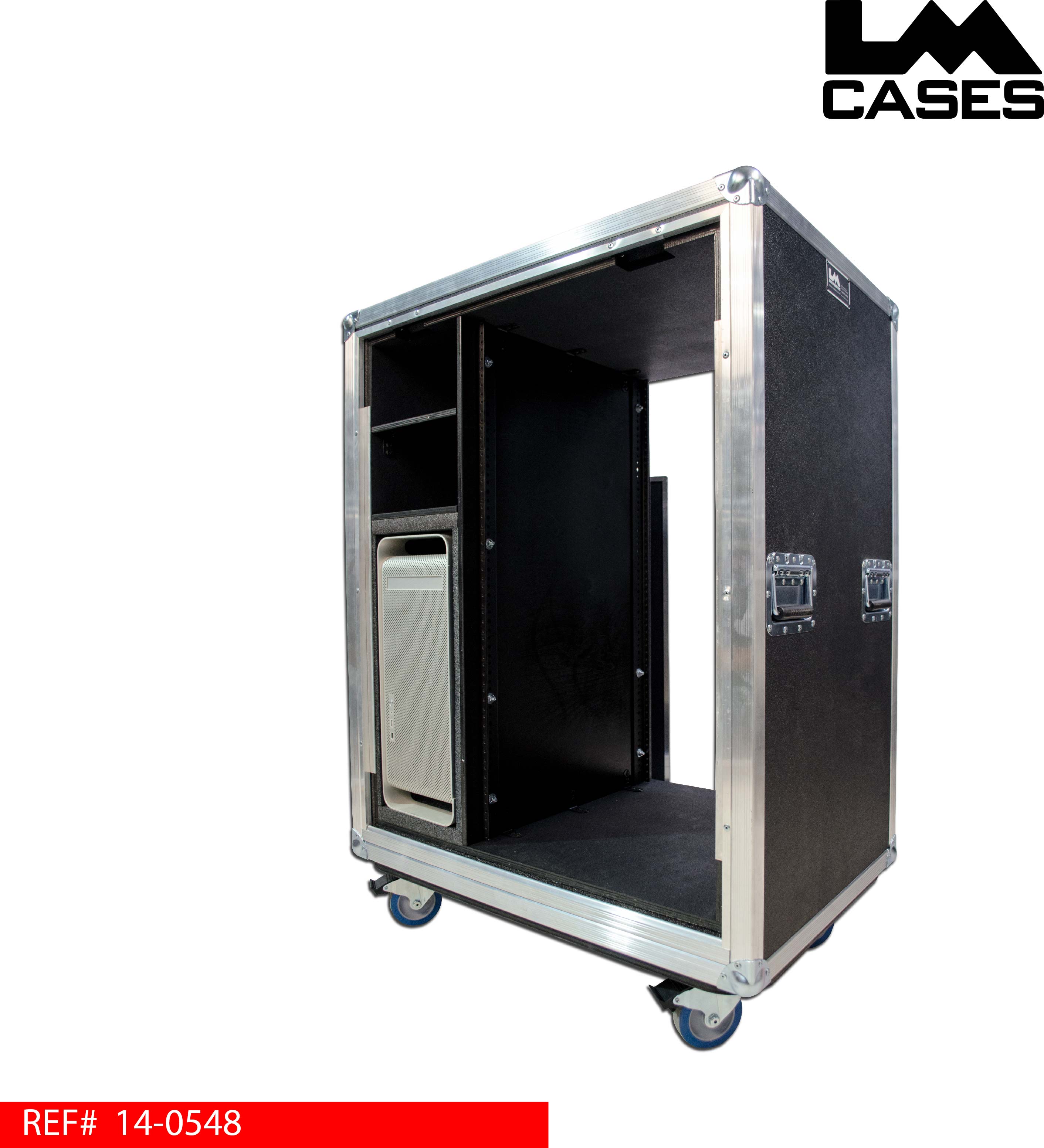

Mac Pro Video Workstation
This case was designed for the University Of Wisconsin to hold an Apple Mac Pro tower, accessories and rack mounted equipment for a portable video conferencing system. The case features flat panel lids on the front and rear to make accessibility quick and easy.
