Power Distribution
Dual Circuit True1 Power Distribution Unit w/Hydraulic Breakers
This is a perfect power input panel for systems requiring dual 20amp power inputs from separate sources, the panel can also be beneficial as a master power switch for 2 separate systems when utilizing the breakers as “on/off” switches. Power enters the panel via the True1 jack and is routed through the breaker, then to 2 duplex outlets. The 20amp breaker protects the system from over drawing and or power surges.
The rack chassis is built out of thick .125” brushed aluminum and black anodized. All labels are laser etched.
Check out LM Tour Systems line of custom True1 power cables to compliment your new distro!
15amp 2RU Custom Branded Power Input Rack Mount Panel
This panel was built for Twist Integration Solutions. The panel is designed to be the main power input source for their integrated systems. Power is brought in via a Hubbell 15amp recessed inlet. A red LED indicator light illuminates when voltage is present. Power is routed to a front mounted courtesy outlet and a white rear mounted outlet.
DSK-ES Switched Desktop Courtesy Power Box w/True1 Connectors
The LM Tour Systems DSK-ES desktop courtesy power panel is designed to be a central power panel for racks, and workstations that may not have room for rack mount power distribution. Other applications include separate switched outlets for monitors, or speakers that need to be switched off independently.
L21-30 3 Phase Testing Distribution Panel
This custom power test panel is designed to split 3 phase power via a L21-30 connector into a variety of output connectors. The intended purpose is providing a central power source to allowing different systems to be electrified and tested before leaving a rental/integration shop.
WBQB-L Work Station Courtesy Outlet Box w/USB Charging & LED Lights
The WBQB-L Courtesy Panel by LM Tour Systems provides integrated power and task lighting for touring workboxes and technical storage systems. Designed for flexible mounting above work surfaces or inside drawers, the panel features a Powercon inlet feeding dual AC outlets with integrated USB-A and USB-C charging. An internal 12V DC power supply delivers power to dual XLR outputs, allowing the use of gooseneck task lights or other 12V XLR-equipped fixtures. Compact, versatile, and tour-ready, the WBQB-L adds convenient power and illumination wherever it’s needed in a mobile workspace.
D1 Power Distribution Box
The LM Tour Systems D1 power distribution box is designed to be a central power hub for mobile racks and integrated systems. Power is introduced to the box via the front Powercon connector. A blue status LED shows when power is present. The 20amp hydraulic master breaker provides control over all outlets and can serve as an on/off switch for systems. A front mounted Powercon loop outlet is provided for linking systems together. This outlet is configured post breaker. A front mounted courtesy duplex is provided with a dedicated 5-amp breaker. The rear of the unit features 3 duplex outlets for a total of 6 outlets in a close proximity configuration. A spaced Edison outlet is provided for larger “wall wart” style plugs that render plugs in a duplex configuration un-usable. An additional rear Powercon® outlet with a blue status light is provided for linking additional items. The D1 can be rack mounted from the front or rear via the removable ears. The unit features rounded front and rear face pieces for a streamlined look when using the unit without its ears attached in a stage box configuration.
2RU USB/Edison/Powercon® Power Distribution Unit
This power box is designed to provide 8 courtesy Edison and USB outlets to a work surface or rack. The power box also includes 2 Powercon® output jacks for expansion. Common uses for this box include tech work stations where a variety of power outlets are required. The box is constructed out of 1/8” brushed aluminum that is anodized black. Power is supplied via a 3’ HD SOOW cable terminated with a Hubbell Edison plug.

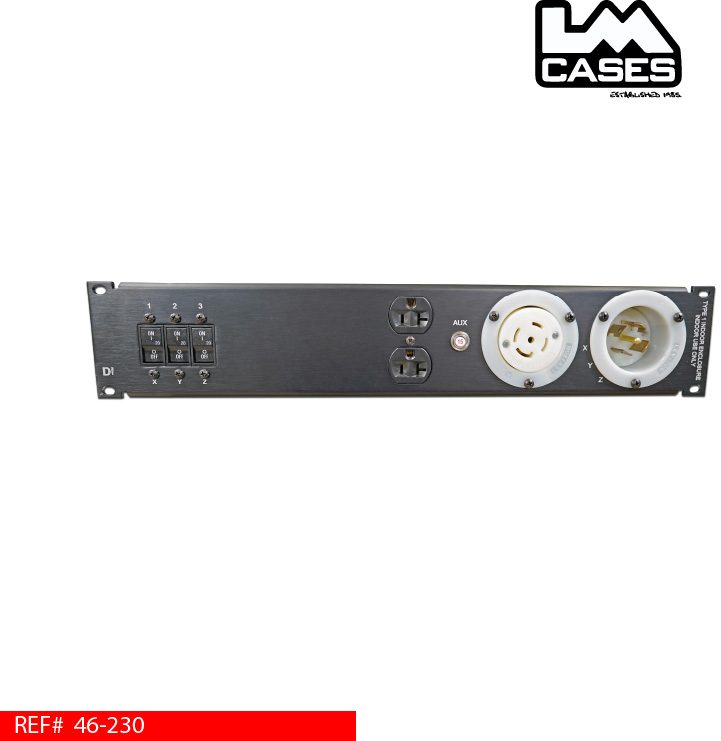

LM Tour Systems D 3/1 L21-30 3 Phase Rack Mount Power Distro w/Edison Outlets
The LM Tour Systems D 3/1 is a compact 2U rack-mount three-phase power distribution unit designed to provide a high density of standard Edison outlets from a 30-amp L21-30 power source. Wired in a Wye configuration, the unit splits incoming three-phase power into X, Y, and Z circuits protected by individual 20-amp breakers. It features eight rear duplex outlets, a front courtesy outlet with a dedicated 15-amp breaker, and a looped L21-30 output for linking additional distros. The rugged chassis is built from black anodized aluminum with laser-etched labeling, making it a durable and reliable solution for touring racks and production systems that require multiple Edison outlets from a three-phase source.
19 Pin - 6 Circuit Socapex / Neutrik True Rack Mount Break Out Box
This power distro box is designed to take 6 circuits via Socapex and distribute them into 12 Neutrik True jacks. Each of the 6 circuits are split A & B allowing 2 outlets per circuit. Each circuit is labeled with its corresponding Socapex pin numbers allowing easy troubleshooting. The box is built around a .125” thick front panel plate with a fully enclosed rear box.
Dual 15amp Powercon Input Panel
This is a perfect power input panel for systems requiring dual 15amp power inputs from separate sources, the panel can also be beneficial as a master power switch for 2 separate systems when utilizing the breakers as “on/off” switches. Power enters the panel via the Powercon jack and is routed through the breaker then to 2 duplex outlets. The 20amp breaker protects the system from over drawing and or power surges.
The rack chassis is built out of thick .125” brushed aluminum and black anodized. All labels are laser etched.
Inline Power Outlet w/Mounting Tabs
This power box is designed to provide an inline 15amp courtsey outlet in the middle of a Powercon run. The box can be used as an extension adapter to combine Powercon cables or provide a outlet at the end of a run.
Imperial Trading Custom Power Distro Rack
This case was designed for Imperial Trading to simultaneously power 150 of their Acer Iconia tablets at trade shows. The distro was built by the LM Cases Custom Integration department to distribute 2 - 20 amp input lines and provide power to 16 outlets on the rear of the rack unit. When the laptops aren't charging, the rear outlets can be switched off and the power can be routed to the front 4 blue outlets to power their booth. The outlets are very high quality Hubbell outlets and color coded, the red outlets are for laptops and the blue outlets are for the booth.
